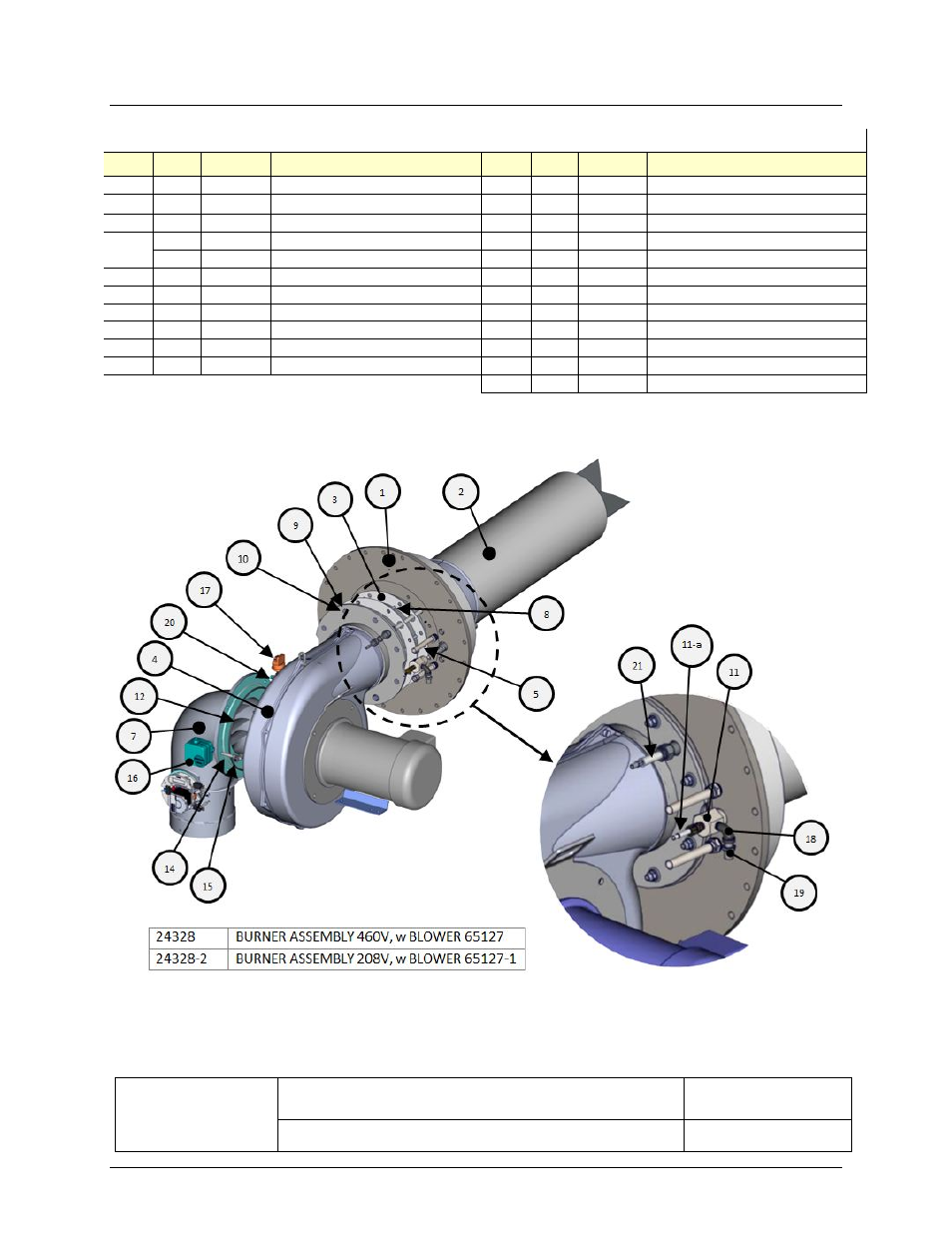

Benchmark 6000 Blower & Burner BOM – P/N 24328 & 24328-2 rev B
Item Qty Part #
Description
Item Qty Part #
Description
1
1
24371
FRONT PLATE ASSY
11
1
29700
IGNITOR: PILOT
2
1
46025
BURNER
11-a
1
66100
IGNITOR ROD
3
2
81159
GASKET: BURNER
12
1
88016
O-RING #2-378
4
1
65127
BLOWER 460V
13
1
124668
NUT: JAM 3/8-16
1
65127-1
BLOWER 208V
14
3
124008
NIPPLE: 1/8 NPT X 3.00" LG
5
2
59192
OBSERVATION PORT
15
2
123535
TEE: 1/8" NPT
6
1
59140
SIGHT GLASS 1"
16
1
60011-4
SWITCH ASSY: BLOWER PROOF
7
1
24352
A/F VALVE ASSY
17
1
61002-5
BLOCKED INLET SWITCH -8.0" W.C.
8
8
52035
STUD: 3/8-16 X 1.50 LG
18
1
93035
ELBOW: STREET 1/4" NPT
9
12
56004
NUT: FLANGED SERRATED 3/8-16
19
1
99014
NIPPLE: HEX 1/4" NPT X 3/8" NPT
10
8
123614
WASHER: FLAT 3/8
20
2
123534
PLUG: HEX 1/8 NPT
21
1
65136
FLAME ROD ASSEMBLY
Not shown on drawing
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 6000 Blower &Burner
09/20/2013
24328, 24328-2 rev B (AP-A-911)
Sheet 1 of 1
