Honeywell Bendix/King AV8OR Handheld User’s Guide
VFR Moving Map Function D200803000008
Page 2-58 Rev 5 Mar 2012
© Honeywell International Inc. Do not copy without express permission of Honeywell

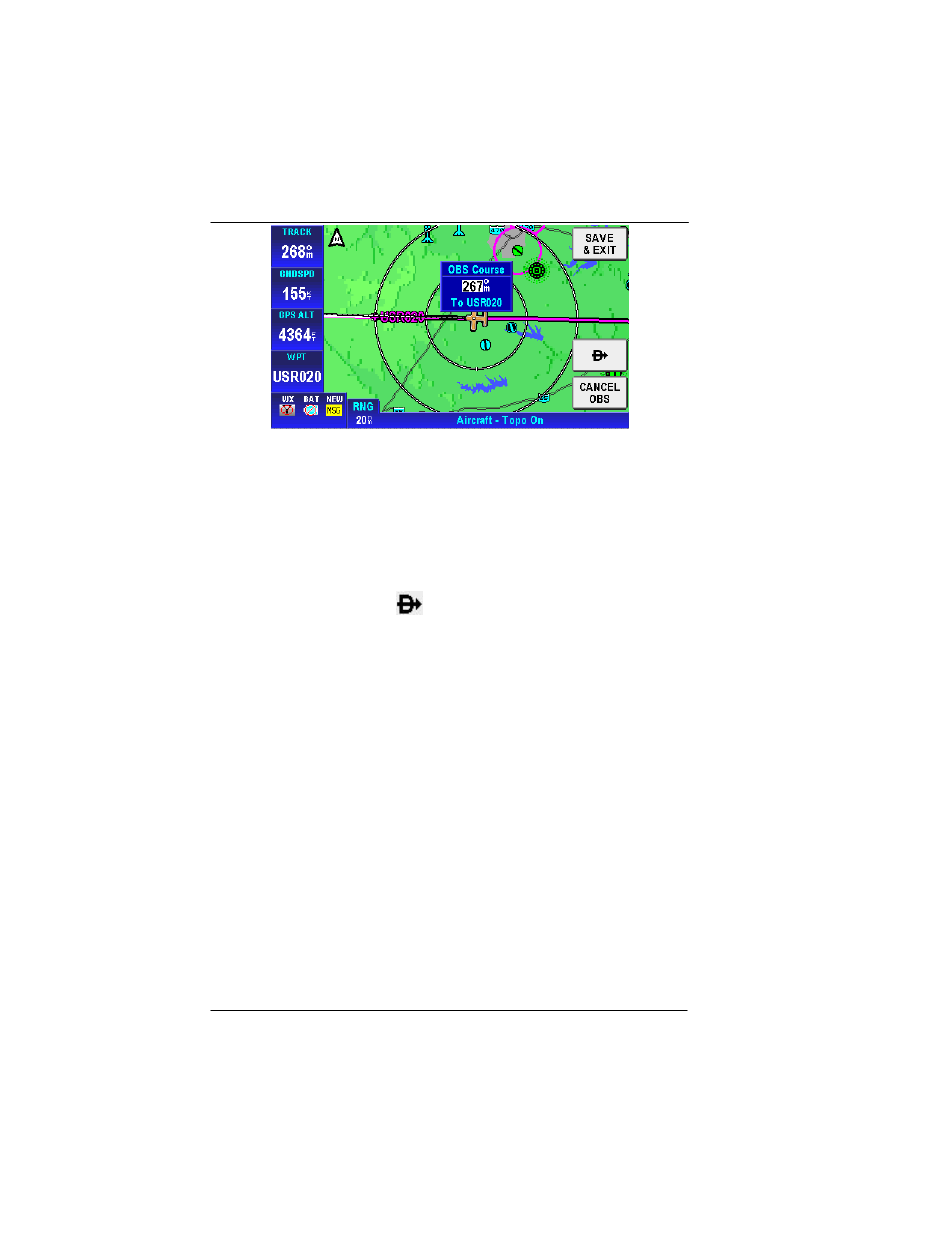

Figure 2-75: Map – OBS Configuration
Here double tapping on the OBS Course window allows the user to
adjust the OBS course.
The user can fly an OBS course to any selected point even while
flying an active flight plan. This provides the ability to show an
extended runway centerline for any airport or user selected point of
interest.
Cancel the OBS using the or CANCEL OBS soft keys.
CENTER MAP
In pointer map mode (User taps on the map and a black pointer is
shown and the
PTR MENU soft key is tapped), the CENTER MAP
soft key is shown as an option on the Pointer Menu . Refer to
Figure 2-69.
The CENTER MAP option is tapped to center the map on the PTR
position on the map.
Tap on the CLEAR PTR to return clear the PTR position and center
the aircraft on the map. The PTR position will remain centered on the
Map for a period of time and then the Map page changes to show
the aircraft position centered on the Map.
Center To WPT/Center Aircraft
After any kind of navigation was activated, in Non-Pointer mode, the
CENTER TO WPT soft key is shown for the user to view the WPT
position on the map.
