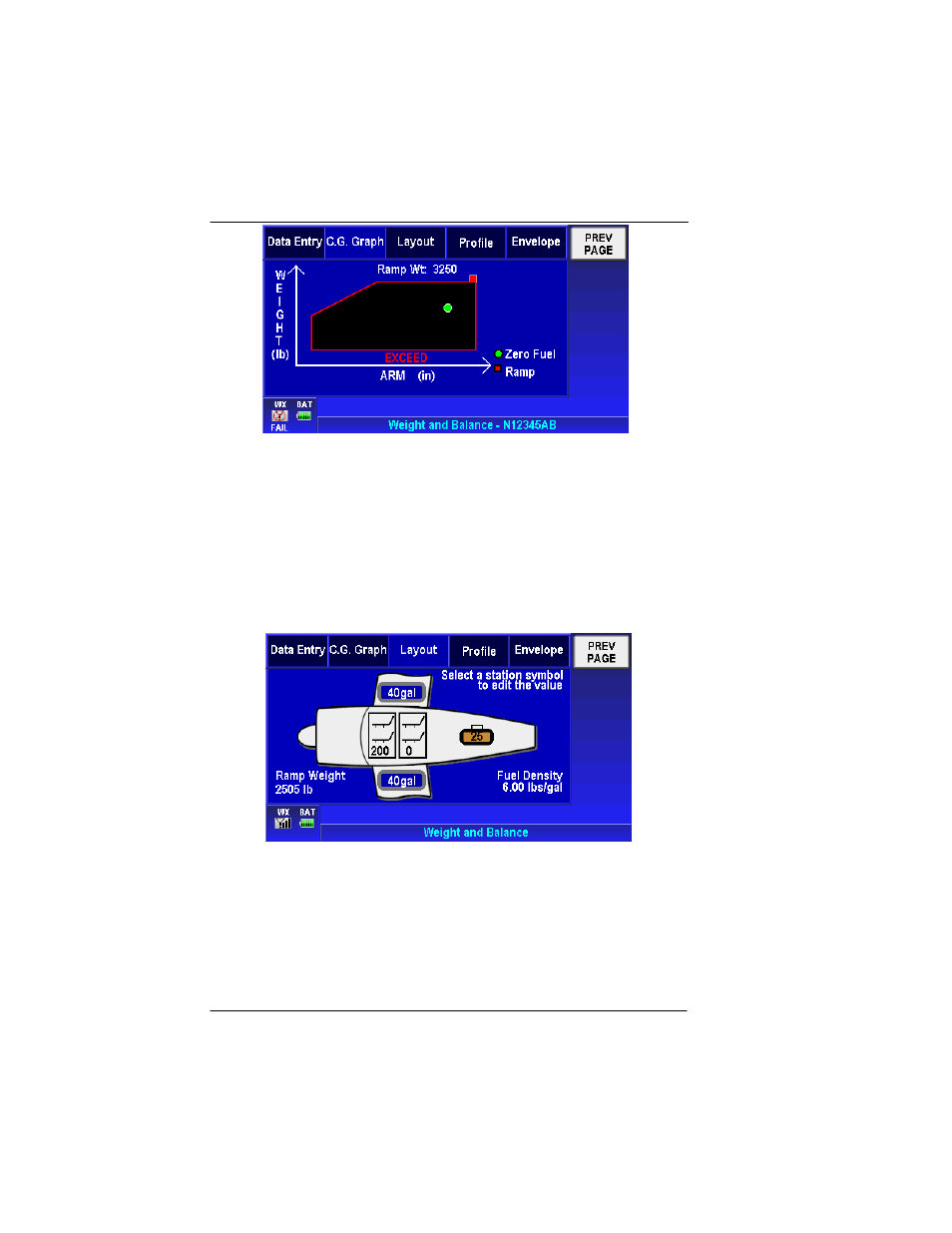

Figure 2-190: W&B - Aircraft Loaded Beyond C.G. Limits
LAYOUT - The Layout page displays the loading of the aircraft
graphically. This view makes it easy to identify ways to shift loading
to adjust the C.G. to a desired point.
Tap on each station to display a numeric keypad. Enter the correct
amount and tap on the “Enter” key to insert the amount into the
selected station. As weight is added to each station, it shows in the
correct position on the aircraft graph.
Figure 2-191: W&B Layout Page with Profile and Envelope Tabs
Filled Out
PROFILE – Use the Profile page to enter information about the
aircraft, including its seating and baggage configuration, type of fuel,
empty weight/arm and the number of C.G. Envelope points. For
example, if the allowable C.G. envelope for a particular aircraft is a
rectangle, you would enter “4” as the number of envelope points.
