Honeywell Bendix/King AV8OR Handheld User’s Guide
D200803000008 System Setup Function
Rev 5 Mar 2012 Page 2-153
© Honeywell International Inc. Do not copy without express permission of Honeywell
NAVIGATION SETUP
The Navigation Setup page permits the navigation setup options to
be configured, as shown in the figure below.
.

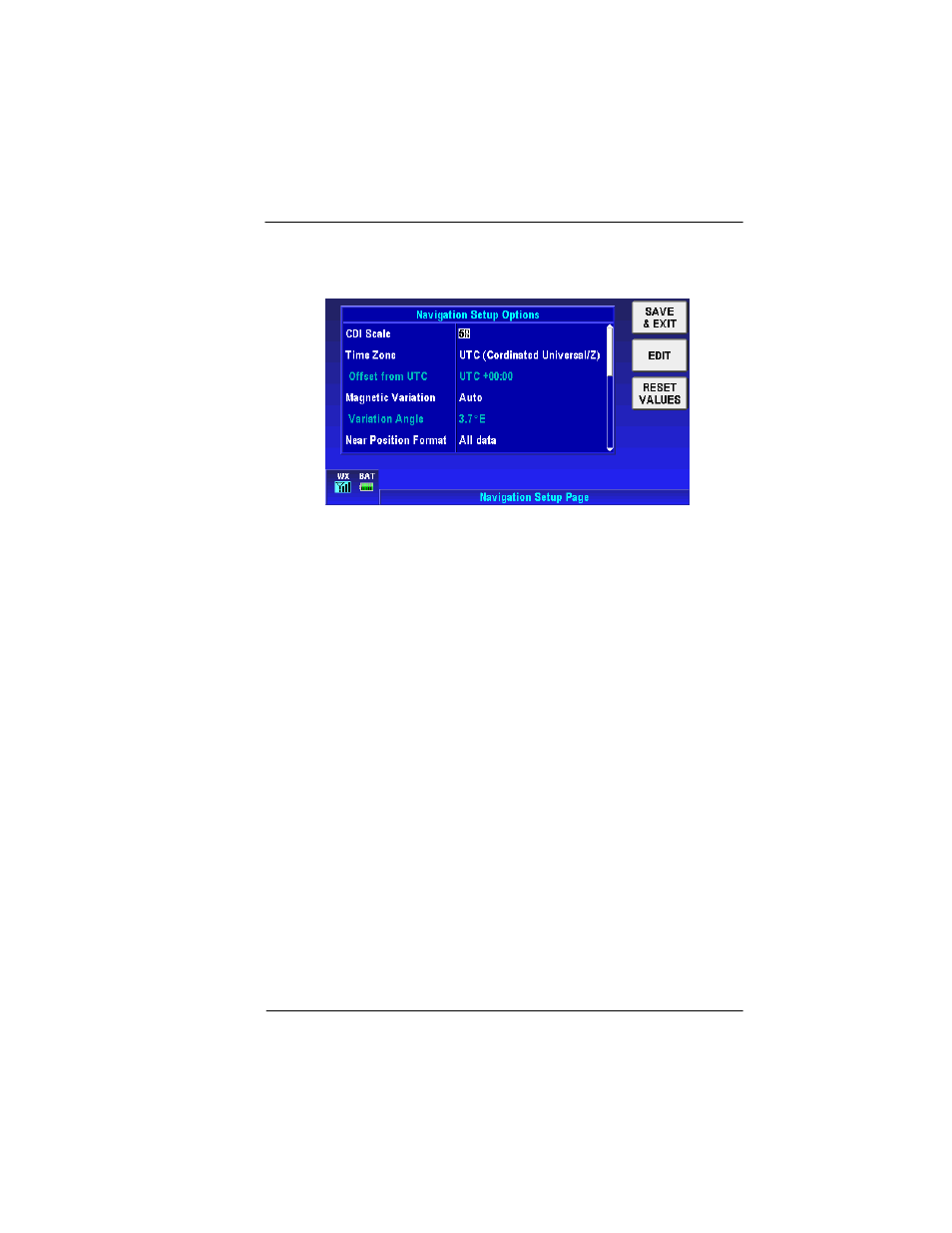

Figure 2-203: System Setup – Navigation Setup
Tap the SAVE & EXIT soft key to save any changes. Tap the
RESET VALUES soft key to restore most of the values to their
factory initial settings.
Double tap on an option or tap once on an option to highlight it and
then tap on the
EDIT soft key to display a pop up window to show
the possible values that can be set. Double tap the highlighted value
or highlight the value and tap on the
SELECT soft key to change the
item’s values.
•
AutoNav: Enable the AutoNav function to allow AV8OR to
automatically switch between the external and internal GPS
sources when there is more than one source. The AutoNav
option only shows on the Navigation Setup Page when both the
Navigation Source and Position in the Device Setup Page are
set to External.
•
CDI Scale: Sets the full scale deflection of any displayed Course
Deviation Indicator (CDI) to: 0.6, 2 or 10 kilometers, 0.3, 1, or 5
nautical miles or 0.4, 1 or 5 statute miles. Values are based on
the distance units that are configured in the General System
Setup Options table distance units field. The CDI is configured on
the Data Field Setup Page in System Setup.
