MAP VIEW Mode
In map view mode the user can select a WPT on the map, draw and
move the map, tap on the map to insert a WPT. If the tap point is a
current WPT in the flight plan the
DELETE WPT soft key is shown to
allow the user to delete it from the flight plan. If the tap point is not in
the flight plan the
INSERT WPT soft key is shown to allow the user
to insert it into the flight plan.

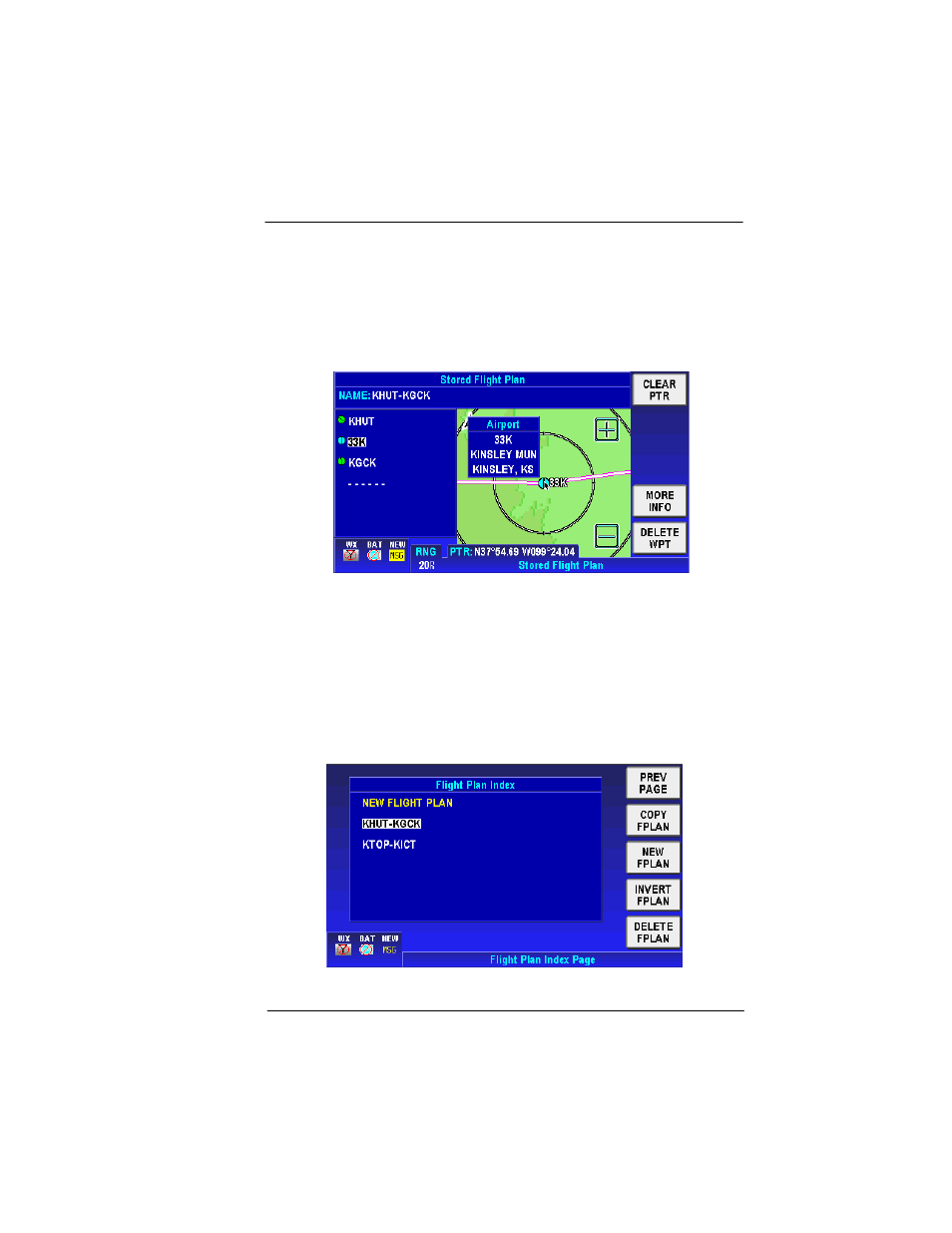

Figure 2-110: Flight Plan Selected WPT from Map
When the user taps on one of the WPTs in the WPT list, the map
moves to the selected WPT area. The user can also delete selected
WPTs here. If the user taps on the dashed line the
INSERT soft key
is available to insert a WPT.
FPLAN ADMIN
Tap the FPLAN ADMIN soft key and the corresponding function soft
keys on the right side of the Flight Plan Index page are shown.
Figure 2-111: Flight Plan – FPLAN ADMIN
