Traffic Function D200803000008
Page 2-122 Rev 5 Mar 2012
© Honeywell International Inc. Do not copy without express permission of Honeywell
•
Traffic Advisories targets show as a white diamond icon.
Traffic advisories are used for targets outside the Traffic Alerts
zone and within 2.0 nm and 1000 ft altitude.
•
Other targets show as a black diamond with a white
border. The black diamond icon is used for targets that are
outside the Traffic Alerts zone and the Traffic Advisories zone.
•
The altitude of traffic target is shown above the target
symbol if the aircraft is above own aircraft altitude.
•
Altitude of traffic target is shown below the target symbol if the
aircraft is above own aircraft altitude.
•
A vertical trend is shown with a down arrow to the right of
the target symbol if altitude trend down is 500 ft/min or greater.
The Altitude trend is shown with an up arrow to the right of the
target symbol if altitude trend up is 500 ft/min or greater.
TRAFFIC SETUP
Tap the TRAFFIC SETUP soft key on the Traffic page to change the
setup settings as shown in the figure below.

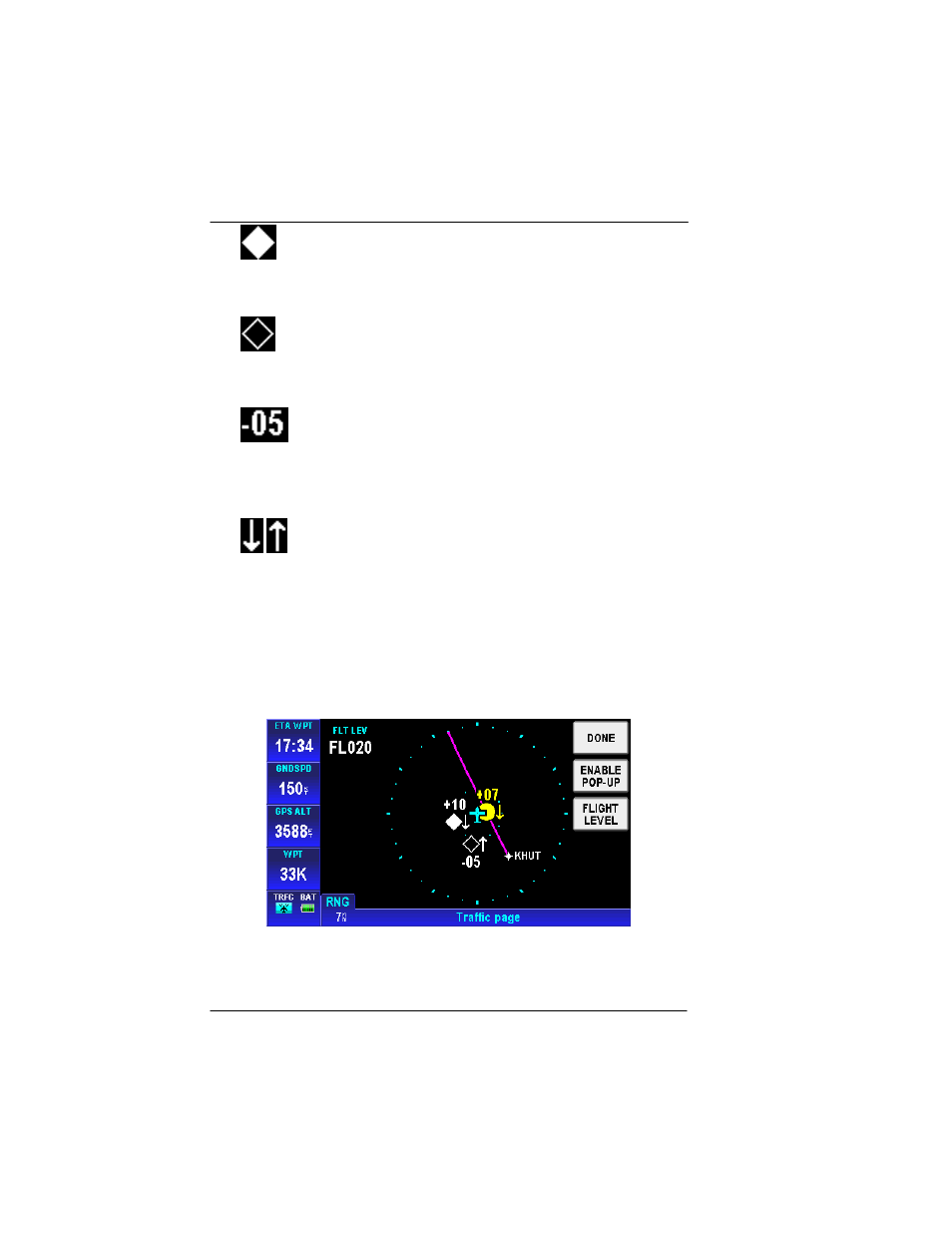

Figure 2-172: Traffic Page – Traffic Setup
