Honeywell Bendix/King AV8OR Handheld User’s Guide
VFR Moving Map Function D200803000008
Page 2-10 Rev 5 Mar 2012
© Honeywell International Inc. Do not copy without express permission of Honeywell
VFR MOVING MAP FUNCTION
The AV8OR features a real-time moving map that can do much more
than just plot your course. The core capability of AV8OR MAP mode
function is its intuitive mapping and navigation function, which is
capable of displaying highly detailed, vectored (point and line) maps.
This detailed vector data includes road over flown data, street
address data, airspace boundaries, airports, Navigational Aid
(NAVAID)s, lakes, rivers, coastlines, cities, highways and terrain
elevation data used to help situational awareness.
Main Map Display Window
On the Aviation Main Menu, tap on the soft key to enter the
Main Map page, as shown in the figure below.

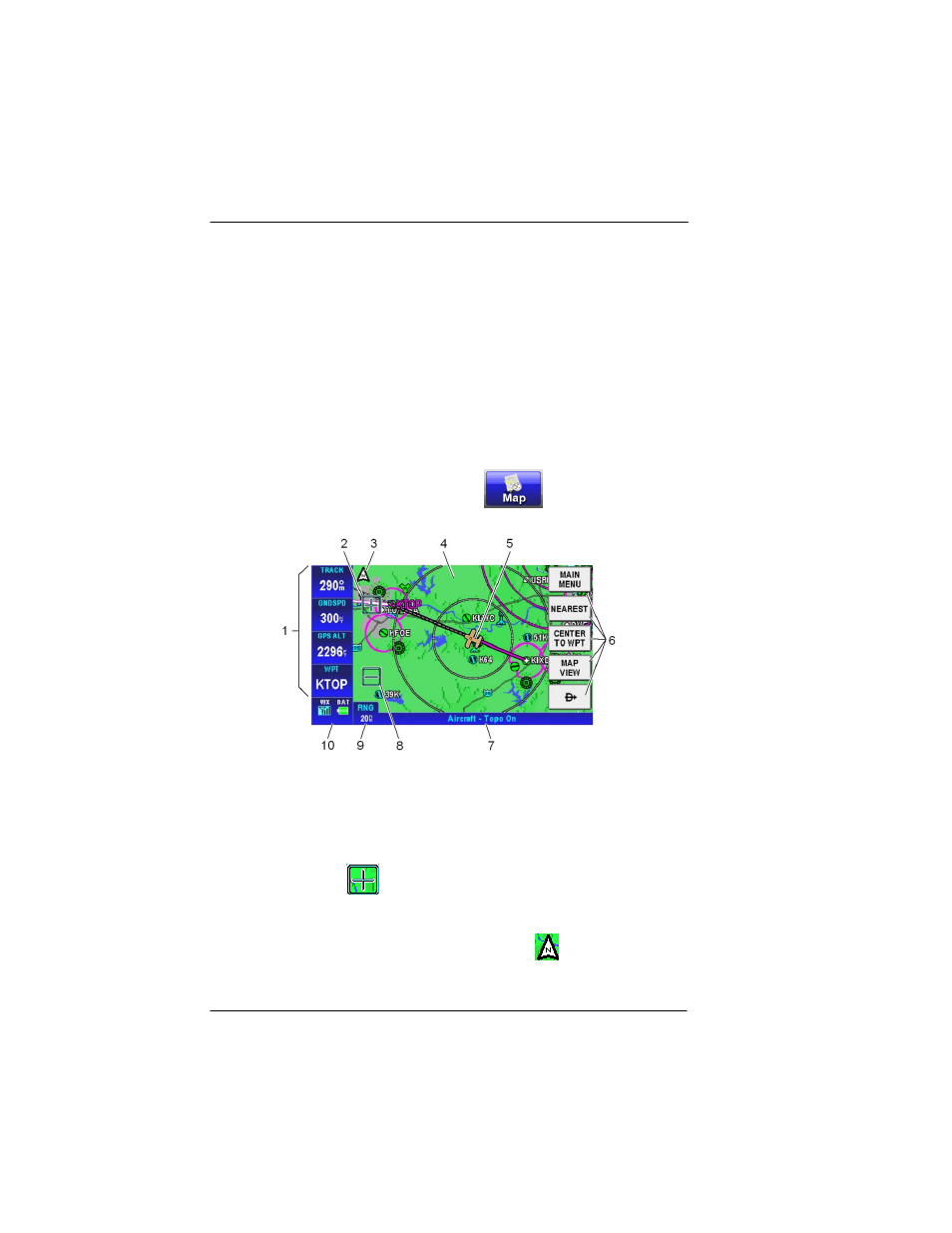

Figure 2-16: Main Map Display Page
Data field information (1) : The data field information is displayed
along the left side of the screen. For more information about the data
field window configuration please refer to Data Fields in the next
section.
The ZOOM IN (2) icon decreases the displayed range of the
map.
North Pointer (3) : In the upper left corner of the Map display is a
North pointer. The pointer has a triangle shape . The north pointer
always points north to help orient the map view. Double tapping on
