Honeywell Bendix/King AV8OR Handheld User’s Guide
System Setup Function D200803000008
Page 2-156 Rev 5 Mar 2012
© Honeywell International Inc. Do not copy without express permission of Honeywell
increments using the numeric keyboard (default =
300 m)
•
VSD (Smart Profile) Below Aircraft :
o For Feet: 500 to 10000 ft adjustable in 100 ft
increments using the numeric keyboard (default =
2000 ft)
o For Meters: 150 to 3000 m adjustable in 50 m
increments using the numeric keyboard (default =
600 m)
•
Direct-To-Mode : Leg (default) and Target.
•
Default Fuel Flow : 0.1 to 999.9 /hr, adjustable by 0.1 (8.0
default).
•
Default Ground Speed : 0 to 999 kts, adjustable by 1 (135 kts
default).
DATA FIELD SETUP
This setup permits the user to arrange data windows along the left
edge of the display in any order as shown in the figure below. The
left edge allows 4 visible data windows. 5 more data windows may
be shown by panning the data windows up or down.

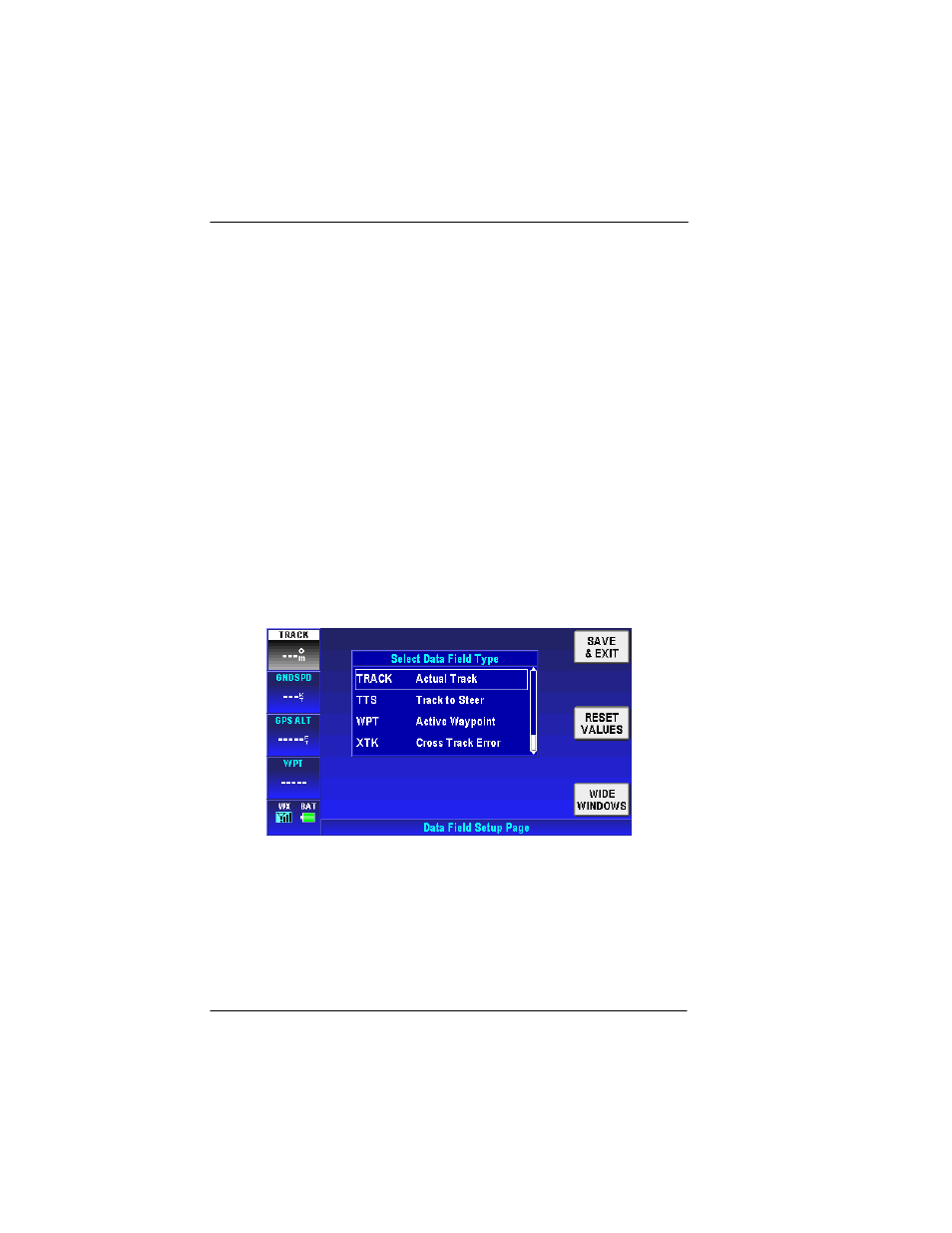

Figure 2-204: System Setup – Data Field Setup
How to configure the Data Field windows:
1. Tap and highlight the desired left data window to modify the data
field type. Note that the corresponding window in the
Select
Data Field Type table is also identified. The title of the selected
active data window is highlighted in white with black lettering,
and the data window is highlighted in shades of grey.
