Honeywell Bendix/King AV8OR Handheld User’s Guide
Getting Started D200803000008
Page 1-12 Rev 5 Mar 2012
© Honeywell International Inc. Do not copy without express permission of Honeywell

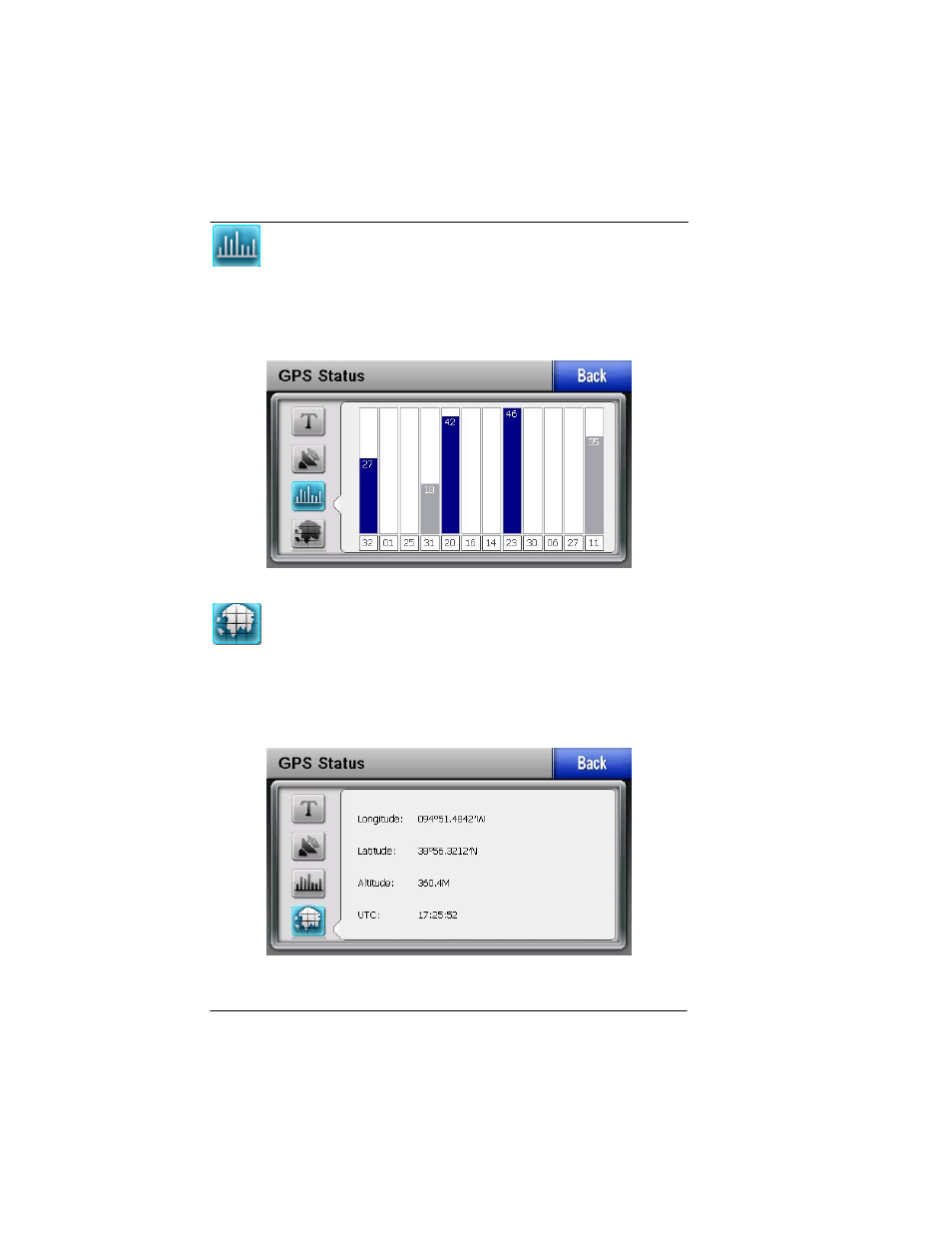

GPS Signal Strength
The GPS Signal Strength page is the default page for GPS Status.
As the receiver locks onto satellites, a bar appears for each satellite.
The bar shows the signal strength for each satellite. The bar
changes color from grey to blue when the satellite is locked.
Figure 1-11: GPS Signal Strength Page – Locked and Unlocked
Current Position
Tapping this soft key displays the longitude, latitude, altitude (ALT)
and UTC time information for the current position when the device
has acquired a GPS satellite lock.
Figure 1-12: GPS Information of Current position
