Graphical Winds Aloft Soft Keys
The Graphical Winds Aloft page has the following soft keys:
•
MAIN MENU - Tap the MAIN MENU soft key to return to the
Main Menu page.
•
FLIGHT LEVEL - Tap the FLIGHT LEVEL soft key to display the
SELECT FLIGHT WINDOW popup box.
•
CENTER TO WPT - Tap the CENTER TO WPT soft key to
display the map around the current destination position. This soft key
is only displayed when Direct To or OBS is active and the MAP view
is centered on the aircraft position.
•
CENTER TO AIRCRAFT - Tap the CENTER TO AIRCRAFT soft
key to display the map around the current aircraft position. This soft
key is only displayed when Direct To or OBS is active and the MAP
view is centered on the destination.
•
CHOOSE PRODUCT - Tap the CHOOSE PRODUCT soft key to
display the Choose Product page.
•
MAP SETUP - Tap the MAP SETUP soft key to display the Map
Setup page.
Tap on a wind vector to display a Wind Data popup box that shows
the wind speed and direction.

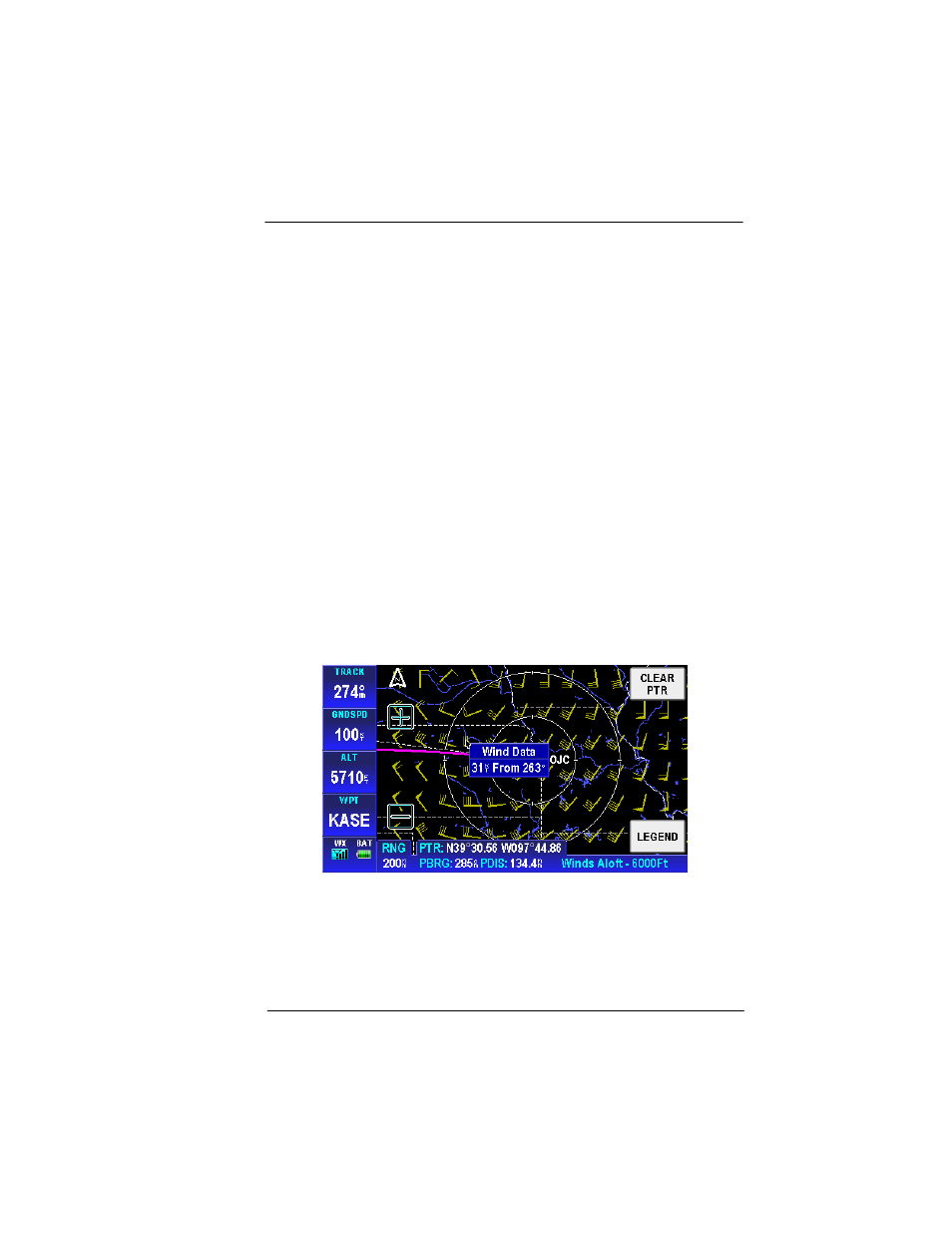

Figure 2-149: Graphical Winds Aloft – Speed and Direction
Winds Aloft Legend
Tap on the Legend soft key to display the Winds Aloft Legend.
