Honeywell Bendix/King AV8OR Handheld User’s Guide
D200803000008 VFR Moving Map Function
Rev 5 Mar 2012 Page 2-19
© Honeywell International Inc. Do not copy without express permission of Honeywell
Table 2-2 Course Deviation Limits
Units Available CDI limits
Nautical miles 0.3 nm, 1.0 nm and 5.0 nm
Statute miles 0.4 sm, 1.0 sm and 5.0 sm
Kilometers 0.6 km, 2.0 km and 10.0 km

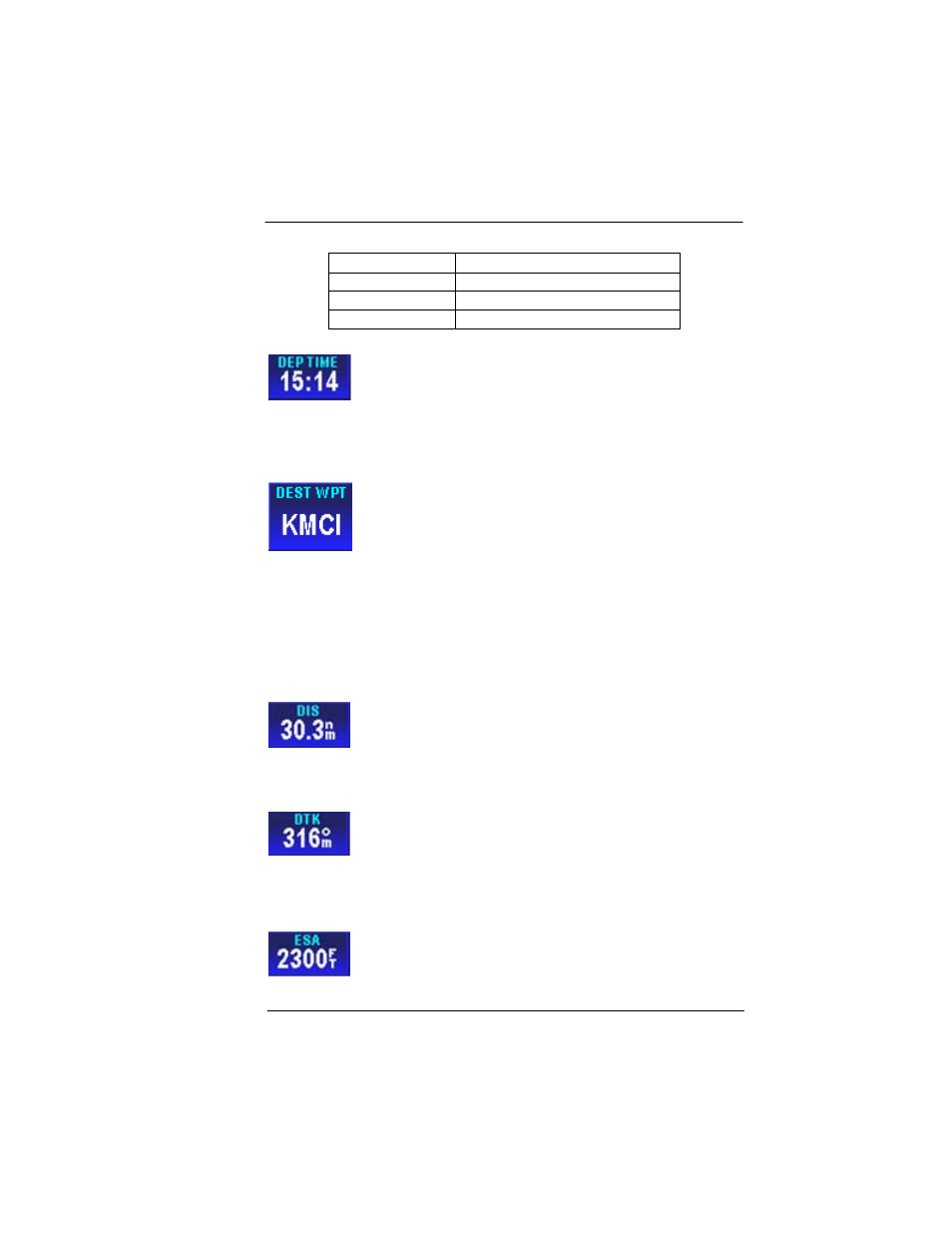

Departure Time Data Field
The departure time data field displays the departure
time when the ground speed of the aircraft is 20 knots or higher. The
time is displayed in HH:MM format. The time is dashed if there is no
departure time available.
Destination Waypoint Ident Data Field
The DEST WPT data field displays the ident of the final
destination waypoint.
If the waypoint ident is unavailable then dashes are displayed.
When a waypoint identifier is displayed in the data field, the waypoint ident
data window is an “active” data window. Double tap” on the data window to
go to the waypoint information page.
The waypoint ident is truncate d to fit into the size of the data
window.
Distance to Waypoint Data Field
The distance to waypoint data field displays the
distance from the aircraft to the destination waypoint. The distance is
displayed in the currently selected units for distance.
Desired Track Data Field
The desired track data field displays the magnetic angle
from the start waypoint to the destination waypoint as an integer
value
En-Route Safe Altitude Data Field
The en-route safe altitude data field displays the highest
“minimum off-route altitude” along the track line between the start
