key is tapped, a different section of the airport diagram is
displayed. The display changes from the top left to the top
right to the bottom left and then to the bottom right.
•
Tap the FULL SCREEN soft key to show the complete
airport diagram on the page.
•
Tap the ROTATE soft key to rotate the airport diagram 90
degrees.
•
Tap the zoom in “ + ” or zoom out “ - “ soft keys on the left side
of the page to zoom in or out of the airport diagram.
•
Tap the MAIN MENU soft key to return to the Main Menu
page.
•
If the MORE CHARTS soft key shows, tap it to select a
different chart.
•
If the CHARTS soft key shows, tap it to show the “Select
Charts to View” menu.
SELECT CHARTS TO VIEW MENU

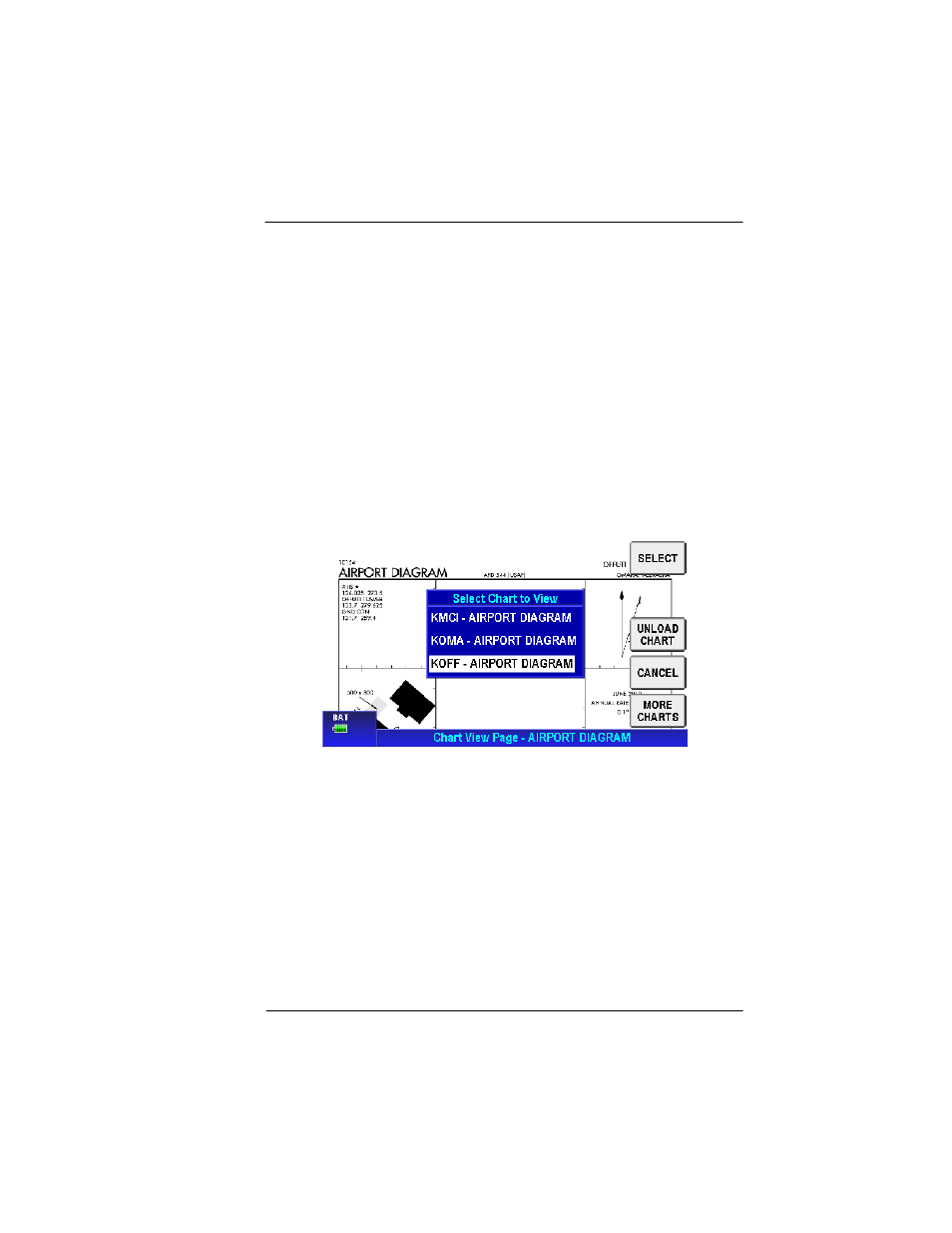

Figure 2-178: Chart View Page with Airport Selected Page
•
Tap on an airport identifier from the list to highlight it For
example, the
KOFF airport identifier is highlighted in the above
figure.
•
Tap on the SELECT soft key to select the highlighted airport
identifier.
•
Tap on the UNLOAD CHART soft key to remove the highlighted
airport identifier form the list of loaded charts.
•
Tap on the CANCEL soft key to cancel the selection of a
different airport diagram.
•
Tap on the MORE CHARTS soft key to add another airport
diagram to the list of loaded charts.
