Traffic Status
•
XM Weather Status
Internal GPS Status:
The Internal GPS Status Page shows the
GPS status in two tables, as shown in the figure below. The first
table shows the GPS receiver status. The second table shows the
GPS satellite status for those that should be in view.

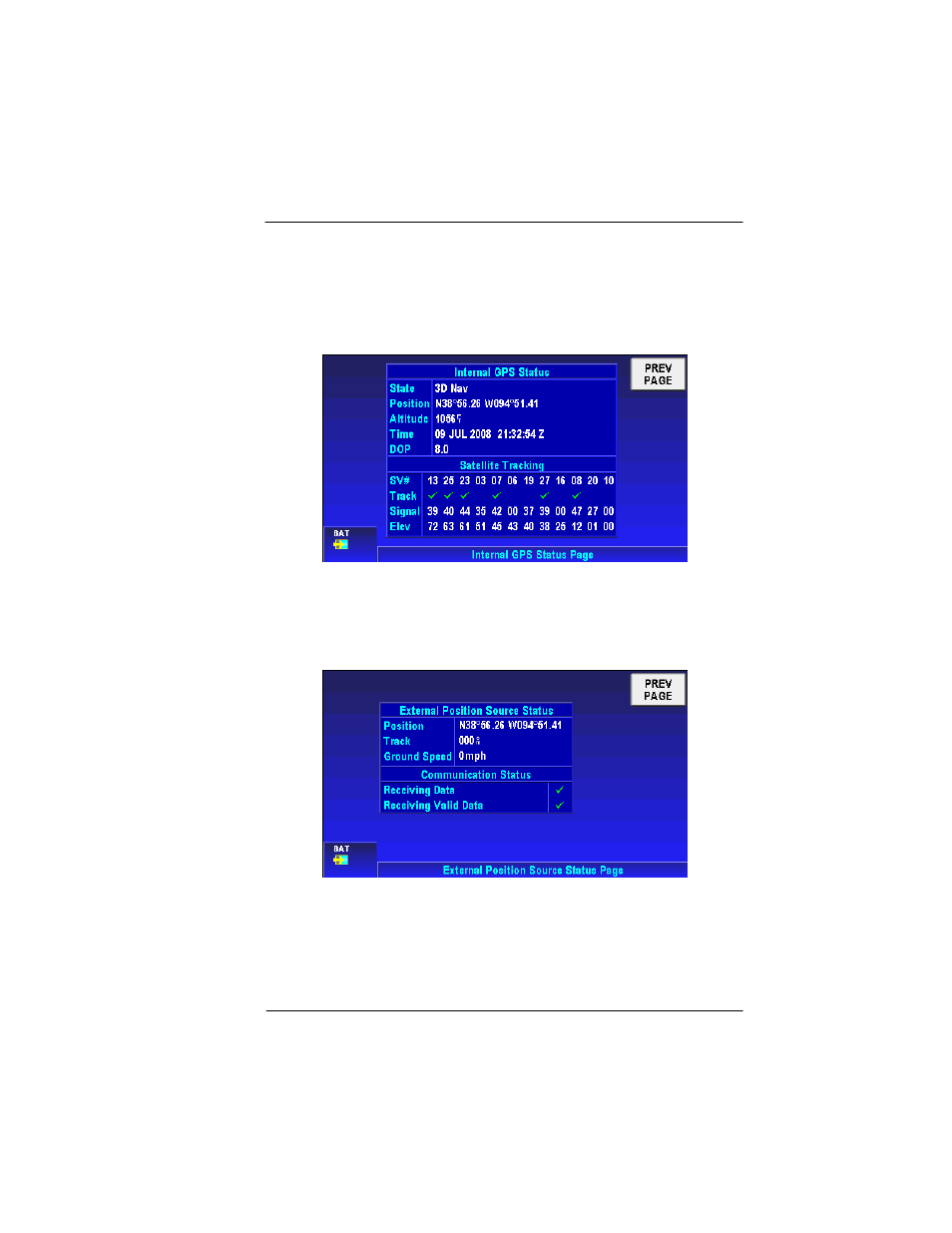

Figure 2-212: System Setup – Internal GPS Status
External Position Source Status:
The External Position Source
Status page displays the reported status of the external GPS
receiver. (Only available if an external position source is configured)
The Communication Status window is updated regularly.
Figure 2-213: System Setup – External GPS Status
Map Information:
The Common Map Data Sources Page shows the
sources of the map data for the cartography, terrain and aeronautical
data bases as shown in the figure below.
