3 520 Indicator Installation Manual

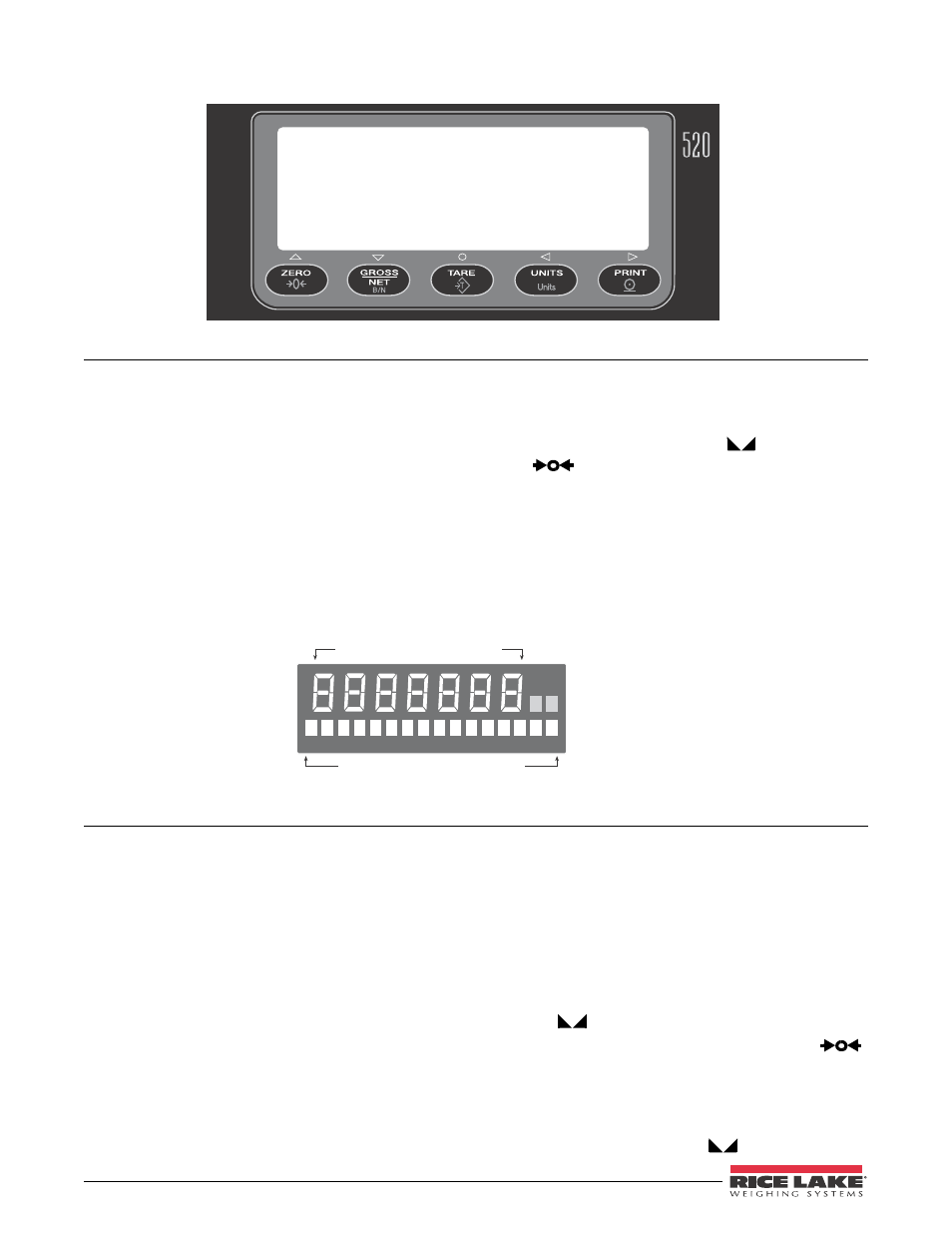

Figure 1-1. 520 Front Panel
1.2 Front Panel Display
Figure 1-1 shows the 520 front panel keys and the key
functions assigned in normal mode.
The 520 display is divided into three areas (see
Figure 1-2):
• The primary display consists of seven large,
14-segment digits used to display weight data.
• A two-digit annunciator shows the units
associated with the displayed value: lb=pounds,
kg=kilograms, oz=ounces, T=short tons, t=metric
tons, LT=long tons, g=grams, GN=grains. The
units can also be set to NONE (no units
information displayed).
The 16-digit secondary display is used to display the
weighing mode (Gross/Brutto or Net), status
indicators, including standstill (
) and center of
zero ( ), Bar Graph and Checkweigh.
The symbols shown over the keys in Figure 1-1
(representing up, down, enter, left, right) describe the
key functions assigned in setup mode. In setup mode,
the keys are used to navigate through menus, select
digits within numeric values, and increment/decrement
values. See Section 3.1.3 on page 18 for information
about using the front panel keys in setup mode. In
count mode, the displayed value is PC (Piece Count).
1 3 * . " 3 : % * 4 1 - ":
4 & $ 0 / % " 3 : % * 4 1 - ":
%*(*5
"//6/$*"503
GPS6/*54
Figure 1-2. 520 Front Panel Display Areas
1.3 Indicator Operations
Basic 520 operations are summarized below:
1.3.1 Toggle Gross/Net Mode
Press the
GROSS/NET
key to switch the display mode
from gross to net, or from net to gross. If a tare value
has been entered or acquired, the net value is the gross
weight minus the tare. If no tare has been entered or
acquired, the display remains in gross mode.
Gross mode is indicated by the letters Gr (or Br for
Brutto in OIML mode) on the secondary display; net
mode is indicated by the letters Nt .
When piece count mode is enabled, the
GROSS/NET
key toggles between Gross/Net/Piece Count .
1.3.2 Toggle Units
Press the
UNITS
key to switch between primary and
secondary units. The units identifier is shown to the
right of the primary display.
1.3.3 Zero Scale
1. In gross mode, remove all weight from the
scale and wait for the standstill annunciator
( ).
2. Press the
ZERO
key. The center of zero ( )
annunciator lights to indicate the scale is
zeroed.
1.3.4 Acquire Tare
1. Place container on scale and wait for the
standstill annunciator ( ).
