3 front panel configuration, Front panel configuration, Section 3.1.3 – Rice Lake 520 HMI Digital Weight Indicator Installation Manual User Manual
Page 24

Configuration
18
3.1.3
Front Panel Configuration
The
520
indicator can be configured using a series of menus accessed through the indicator front panel when the
indicator is in setup mode. Table 3-1 summarizes the functions of each of the main menus.
Table 3-1. 520 Menu Summary
Menu
Menu Function
CONFIG
Configuration
Configure grads, zero tracking, zero range, motion band, overload, A/D sample rate, tare
function, power-up mode, and digital filtering parameters.
FORMAT
Format
Set format of primary and secondary units, decimal format, and display rate.
CALIBR
Calibration
Calibrate indicator. See Section 4.0 on page 40 for calibration procedures.
SERIAL
Serial
Configure EDP and printer serial ports.
PROGRM
Program
Set date and time formats, passwords, keyboard locks, regulatory mode, and user ID
consecutive number values; enable accumulator, checkweigh, count mode, peak hold, gravity
adjustment and millivolt calibration; define setpoint prompts.
PFORMT
Print Format
Set print format used for header, gross, net, count, setpoint, and EDP format tickets. See
Section 10.0 for more information.
SETPTS
Setpoints
Configure setpoints and batching mode.
DIG IN
Digital Input
Assign digital input functions.
ALGOUT
Analog Output
Configure analog output module. Used only if analog output option is installed.
VERSION
Version
Display installed software version number.
Move LEFT
/
Pr evious
Move RIGHT
/
Next
Move UP
/
Incr ement V
alue
Move DOWN
/
Decr ement V
alue
ENTER V alue
SETUP MODE 5-KEY FUNCTIONS
ENTER SAMPLE
MODE

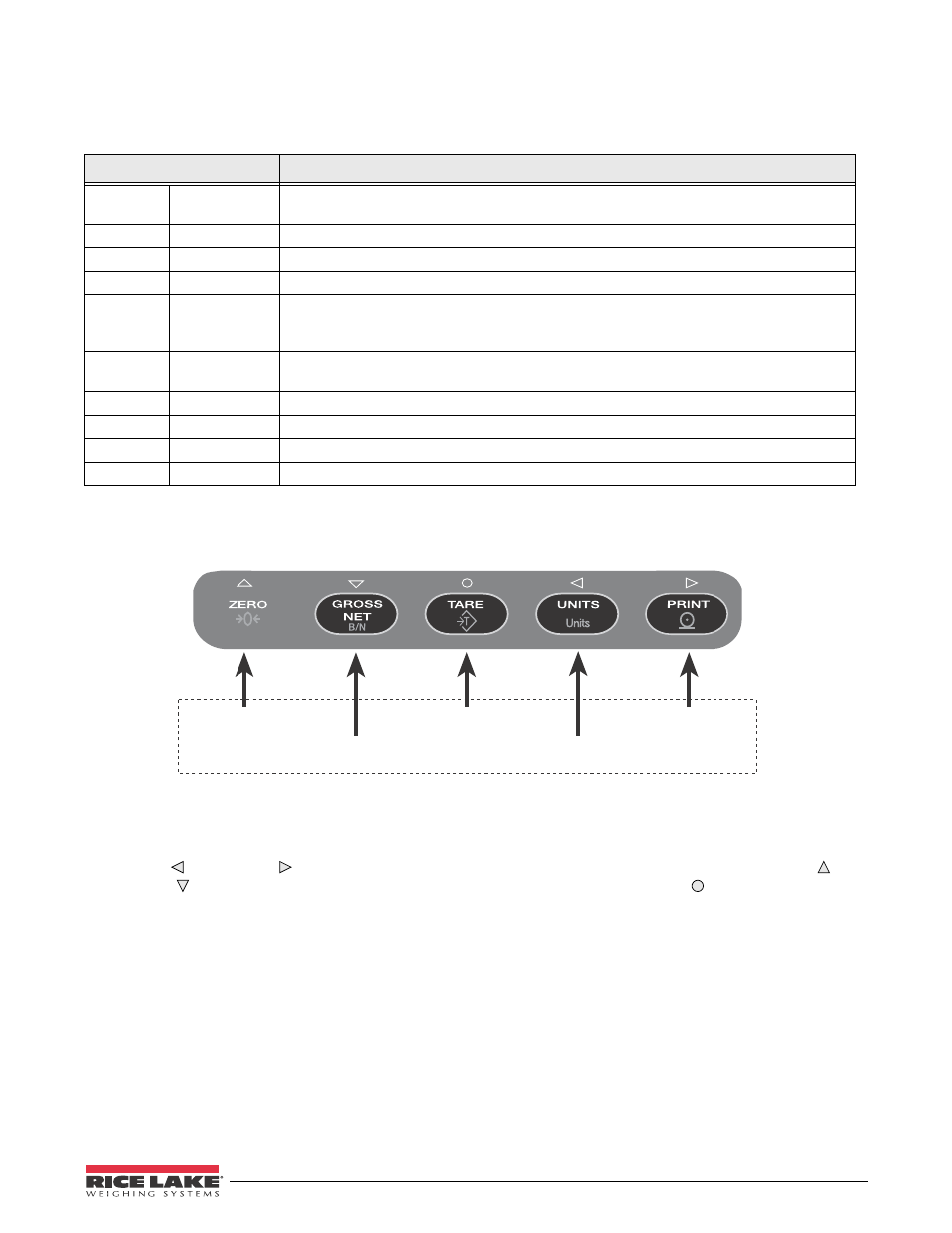

Figure 3-2. Five-Key Keypad Functions in Setup Mode
Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 3-2).
The
UNITS
( ) and
( ) keys scroll left and right (horizontally) on the same menu level;
ZERO
( ) and
GROSS/NET
( ) move up and down (vertically) to different menu levels. The
TARE
key ( ) serves as an Enter key
for selecting parameter values within the menus. A label over each of these keys identifies the direction provided
by the key when navigating through the setup menus.
