Installation
16
2.10 Replacement Parts (Desktop Model Specific)
Table 2-9 lists replacement parts specific to the
520
desktop model, including parts referenced in Figure 2-10 on
page 16. Parts listed in Table 2-10 on page 16 are common to both models of the 520.
Table 2-9. Desktop Model Replacement Parts
Ref Number
PN
Description (Quantity)
1
41401
Enclosure (1)
2
77198
Membrane switch overlay
3
77192
Enclosure
4
77193
Interior tray
—
15438
Power cord (NEMA 15-5)
—
72512
Power cord (ECC 7/7)
7
14857
8-32NC Phillips panhead screw (3)
8
71217
Drilled fillister head screw
15
40672
Ground wire, 9 in w/no. 8 eye connector
28
78745
AC input connector
29
78747
Blue wire assembly
30
78748
Brown wire assembly
31
32394
Nylon washer
32
68403
2 prong black knob
35
78856
Bushing
36
77195
Tilt stand
* Additional parts included in parts kit. See Section 2.1.2 on page 6 for additional parts information for the 520 desktop model.
9

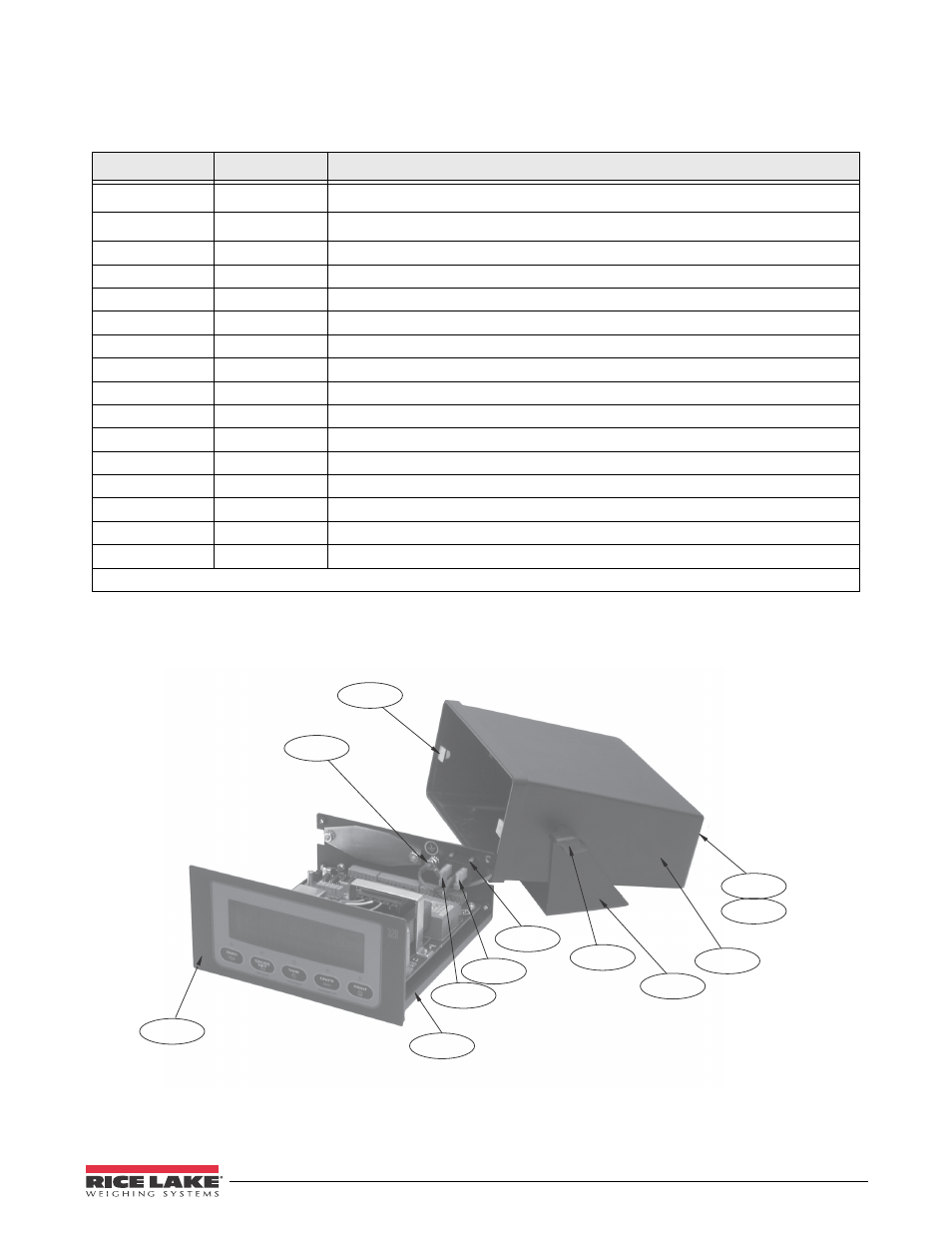

Figure 2-10. Desktop Model Assembly
