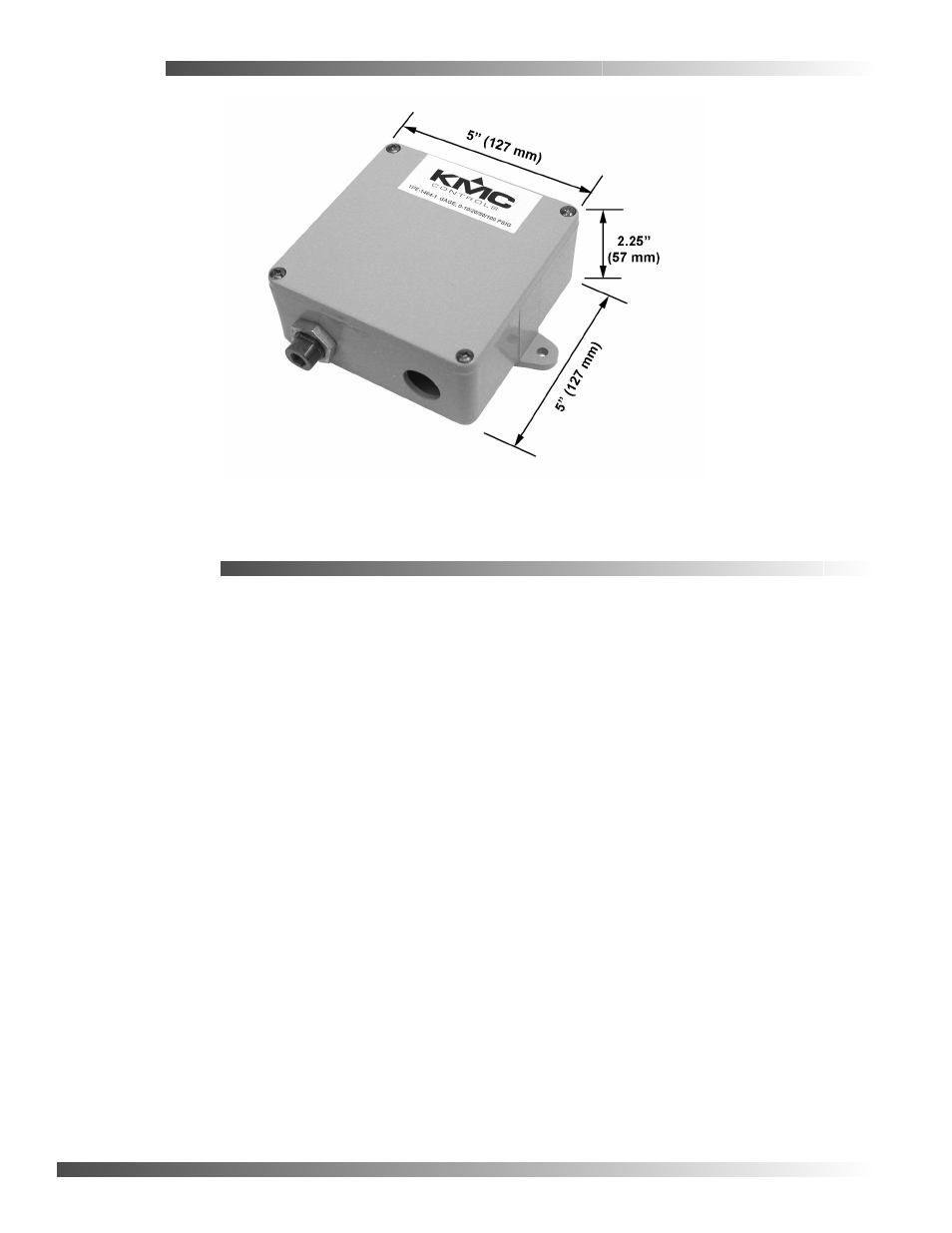

Enclosure
© 2005 KMC Controls Inc. 717-035-15D
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com
Specifications
Media compatibility
17-4 PH stainless steel
Supply Voltage 24 VAC or 15 to 30 VDC
Supply Current 35 mA, maximum @ 24VDC
Output Signal 4 to 20mA, 0 to 5 or 0 to 10
VDC, field selectable
Pressure Ranges Field selectable:
TPE-1464-1 0 to 10/20/50/100 psig/d
TPE-1464-2 0 to 20/40/100/200 psig/d
TPE-1464-3 0 to 50/100/250/500 psig/d
Proof Pressure Max. 2X F.S. range
Burst Pressure Max. 5X F.S. range
Accuracy ±1% F.S. combined linearity,
hysteresis, and repeatability.
Range 4 accuracy ±2% F.S.
Pressure cycles > 100 million
Surge Damping normal 4-second averaging,
slow 8-second averaging, switch
selectable
Sensor Operating Range -40° to 220°F (-40° to
105°C)
Temperature Compensation Error
32° to 130°F (0° to 55°C)
Long term stability ±0.25% typical (1 year)
Zero Adjust
push-button auto-zero and
digital input
Operating Environment
32° to 122°F (0° to 50°C), 10
to 90% RH, non-condensing
Fittings 1/8” NPT female
Enclosure 5" x 5" x 2.25" (127mm x
127mm x 57mm);
IP 54 (NEMA 4)
Weight 1.33 lbs. (.60 kg)
Shock 100G, 11 mSec, 1/2 sine
Vibration 20G peak 20 to 2400 Hz
