CCC-1001/1002 (Dual Input Receiver Controllers)
4
Installation Guide
© 2009 KMC Controls, Inc.
218-019-01E
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com; [email protected]

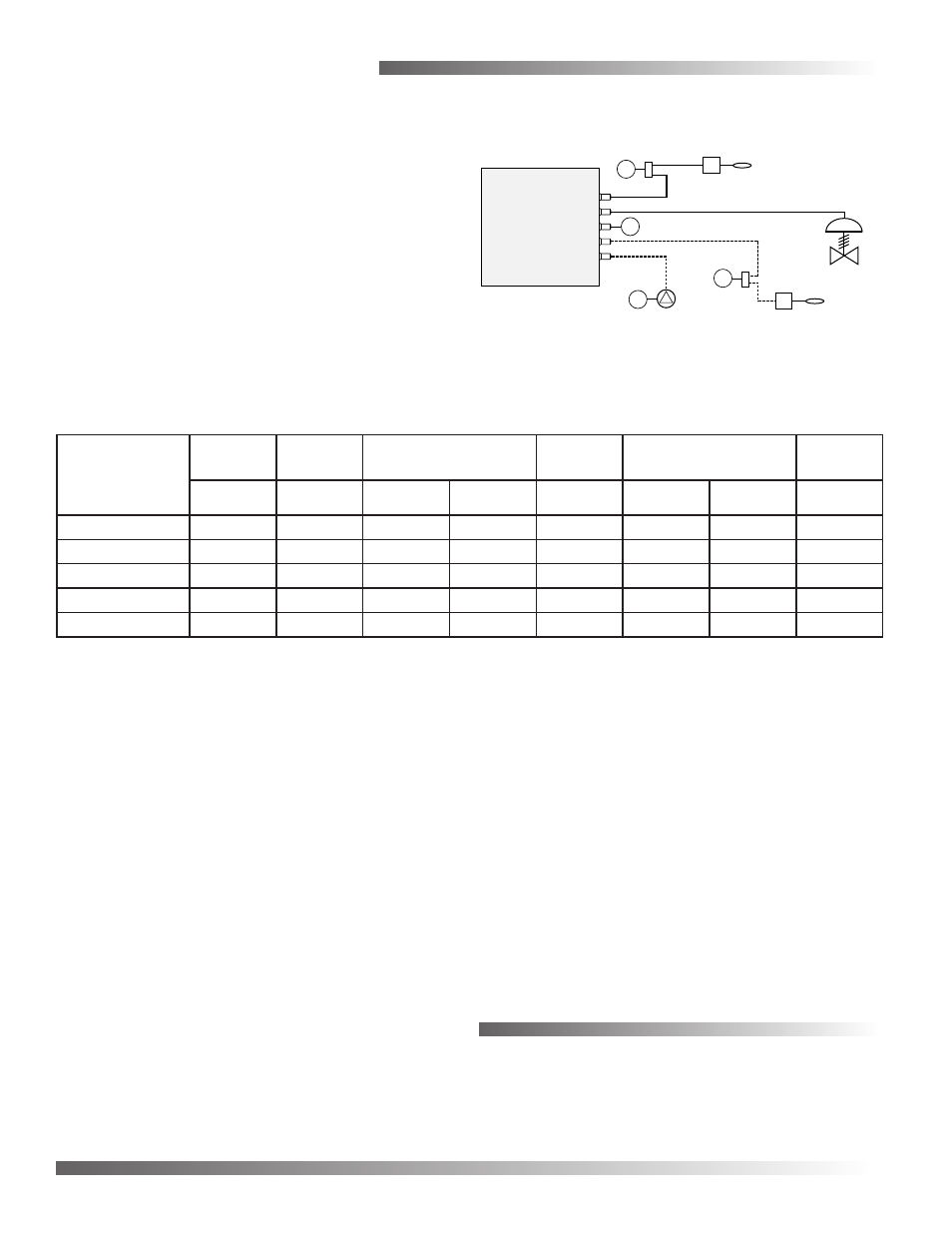

Competitor Cross-Reference
The CCC-1002 can replace many competitor single/
dual-input receiver/controllers such as:
• Barber-Colman (Schneider Electric) RKS-
1001/2001/3002/4002
• Honeywell RP908A/RP908B/RP920A/RP920B
• Johnson T-9000 and T-5801/5802
• Robertshaw (Schneider Electric) P341 and 2341
• Siemens 185 and 195 series
A cross-reference of corresponding piping for some
of these controllers is shown in the chart below.
NOTE: External restrictor HFO-0022 might be
required if replacing a receiver/controller
using internal restrict
ors.
