Elecraft P3 High-Performance Panadapter Manual User Manual
Page 53
53

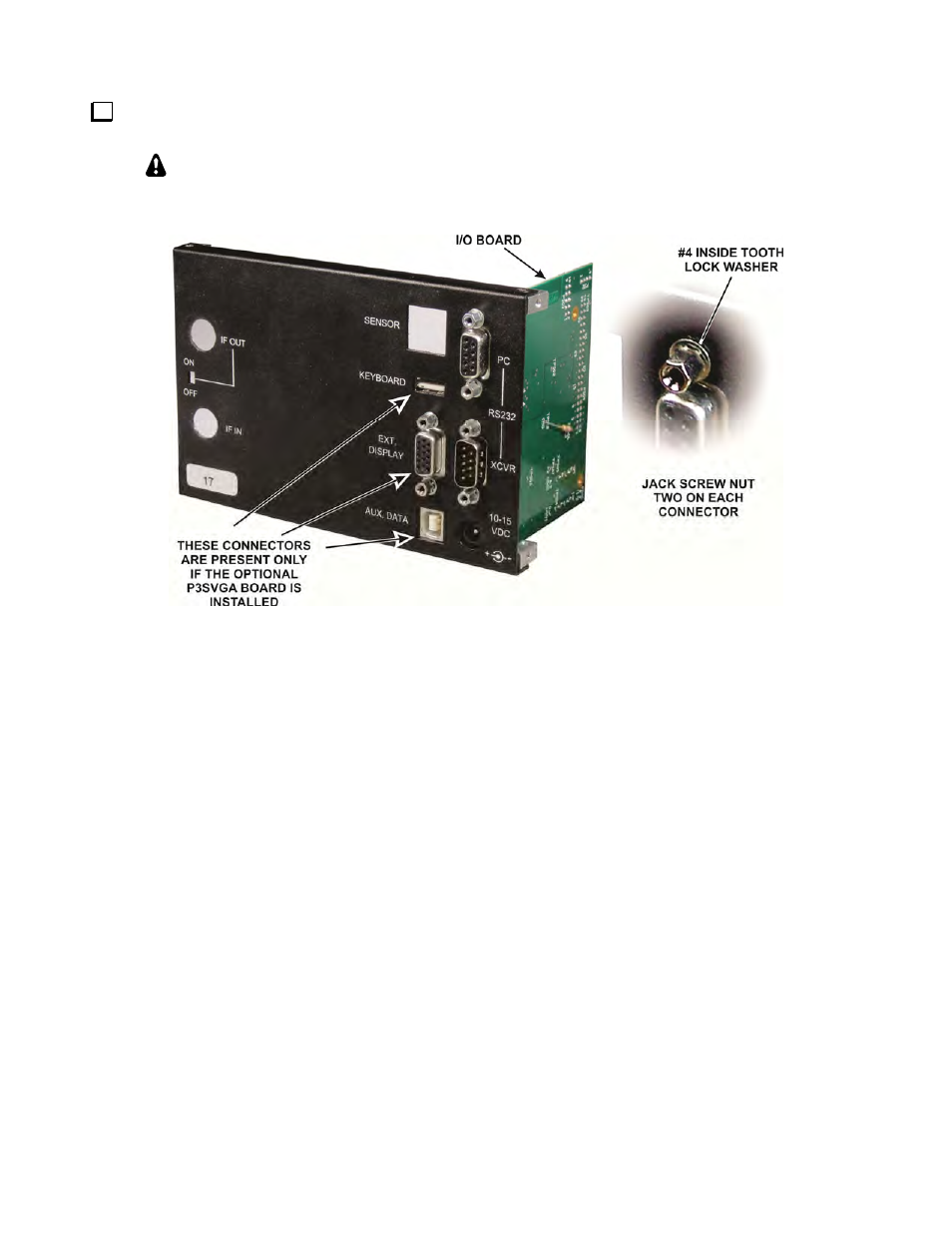

Mount the I/O board on the rear panel with the connectors in the RS232 PC and XCVR holes as shown in
Figure 16. It is held in place by the jack screw nuts as shown.
CAUTION: Do not over-tighten the jack screw nuts. It is possible to twist the hex nut
section off of the threaded section with too much torque, especially if you are using a
wrench to tighten them.
Figure 16. I/O Board Installed.
