Using Multimedia
Connecting Your Computer to a TV or Audio Device
NOTE:
Video and audio cables for connecting your computer to a TV or other audio
device may not be included with your computer. Cables and TV/digital audio
adapter cables are available for purchase from Dell.
Your computer has an S-video TV-out connector that, together with a
standard S-video cable, a composite video adapter cable, or a component
video adapter cable (available from Dell), enable you to connect the
computer to a TV.
Your TV has either an S-video input connector, a composite video-input
connector, or a component video-input connector. Depending on what type
of connector is available on your TV, you can use a commercially available
S-video cable, composite video cable, or component video cable to connect
your computer to your TV.

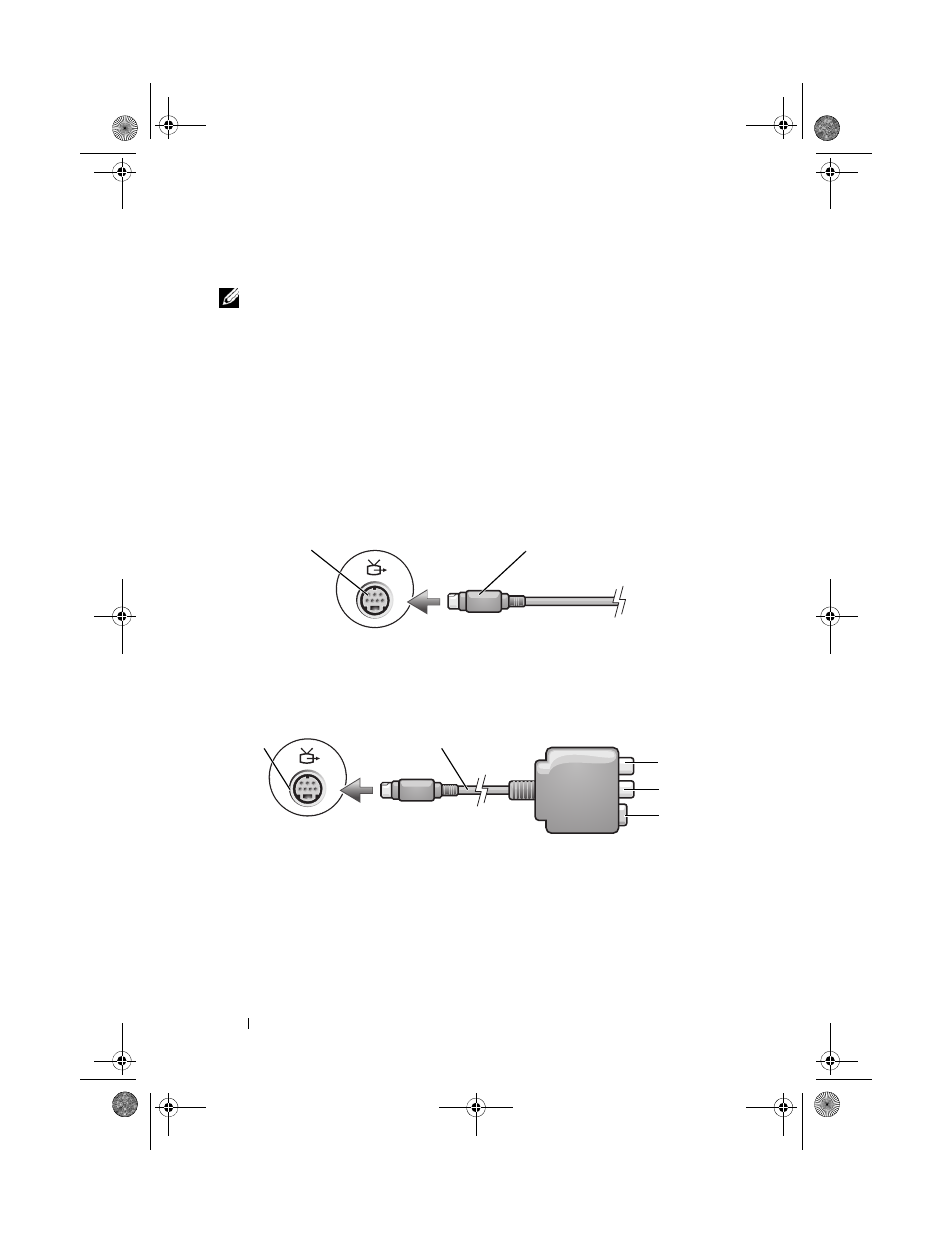

1
S-video TV-out connector
2
S-video connector
1
S-video TV-out connector
2
composite video adapter
3
S/PDIF digital audio connector
4
composite video-output connector
5
S-video connector
1
2
5
4
3
2
1
