Adding and Replacing Parts
18 Remove the video card/thermal-cooling assembly, if present (see
"Removing the Video Card/Thermal-Cooling Assembly" on page 204).
NOTE:
Remove the video card/thermal-cooling assembly as a single unit. Do
not separate the thermal-cooling unit (heat sink) from the video card.
19 Remove the processor thermal-cooling assembly (see "Removing the
Processor Thermal-Cooling Assembly" on page 200).
20 Remove the processor (see "Removing the Processor Module" on
21 Remove the docking frame:
a
Remove the two docking-frame screws.
b
Lift the docking frame away from the system board.
22 Remove the four M2.5 x 5-mm screws from the system board.

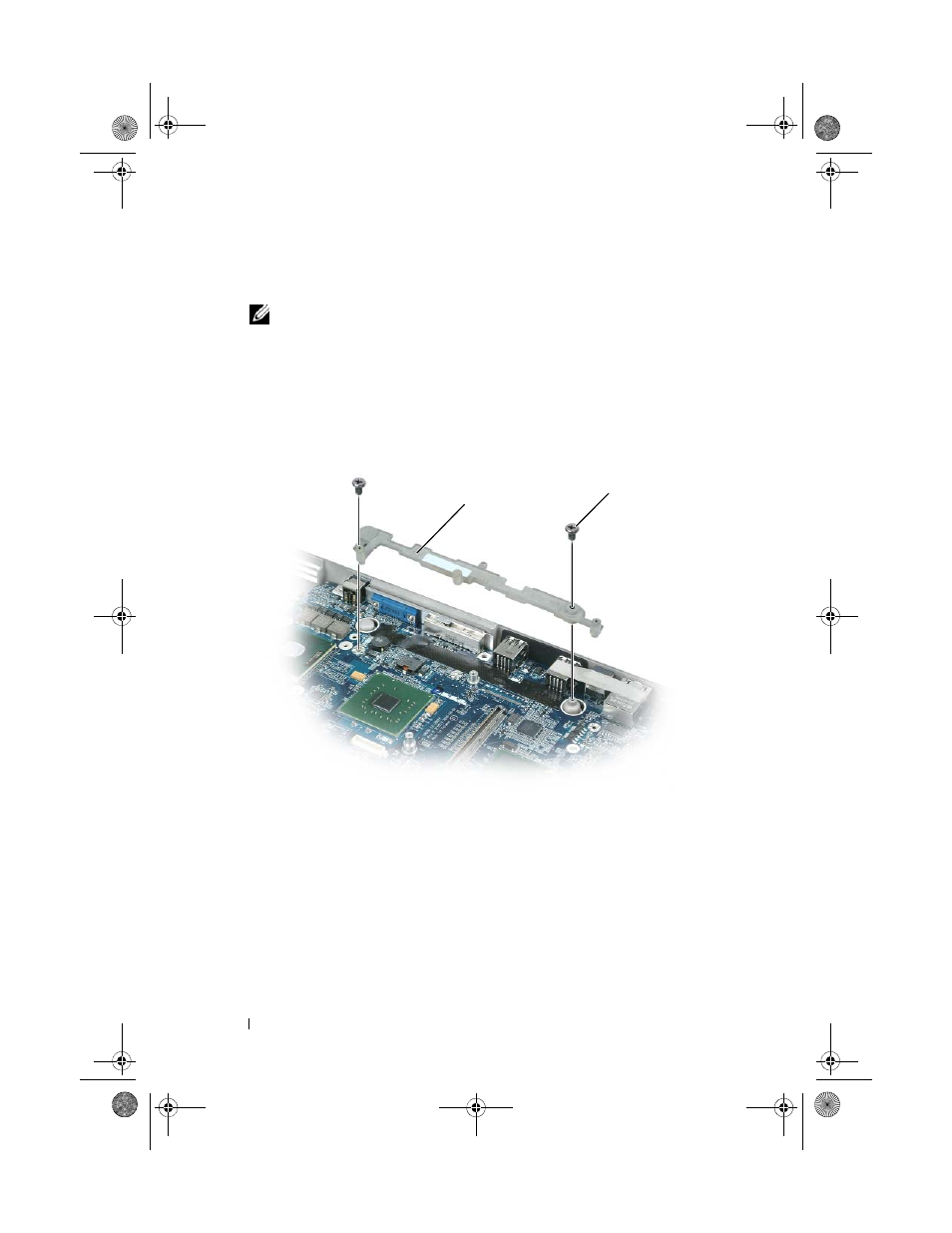

1
docking frame
2
docking frame screws (2)
1
2
