Replacing the display assembly – Dell Precision M6300 (Late 2007) User Manual
Page 179
Adding and Replacing Parts
179
NOTE:
When removing the display assembly, carefully unthread the mini-card
antenna cables through the computer base and ensure that the plastic
protectors—if present—remain on the individual cables.
8 Lift the display assembly away from the computer.
Replacing the Display Assembly
1 Thread the mini-card antenna cables back through the hole in the base of
the computer so that they are accessible from the bottom of the computer.
1

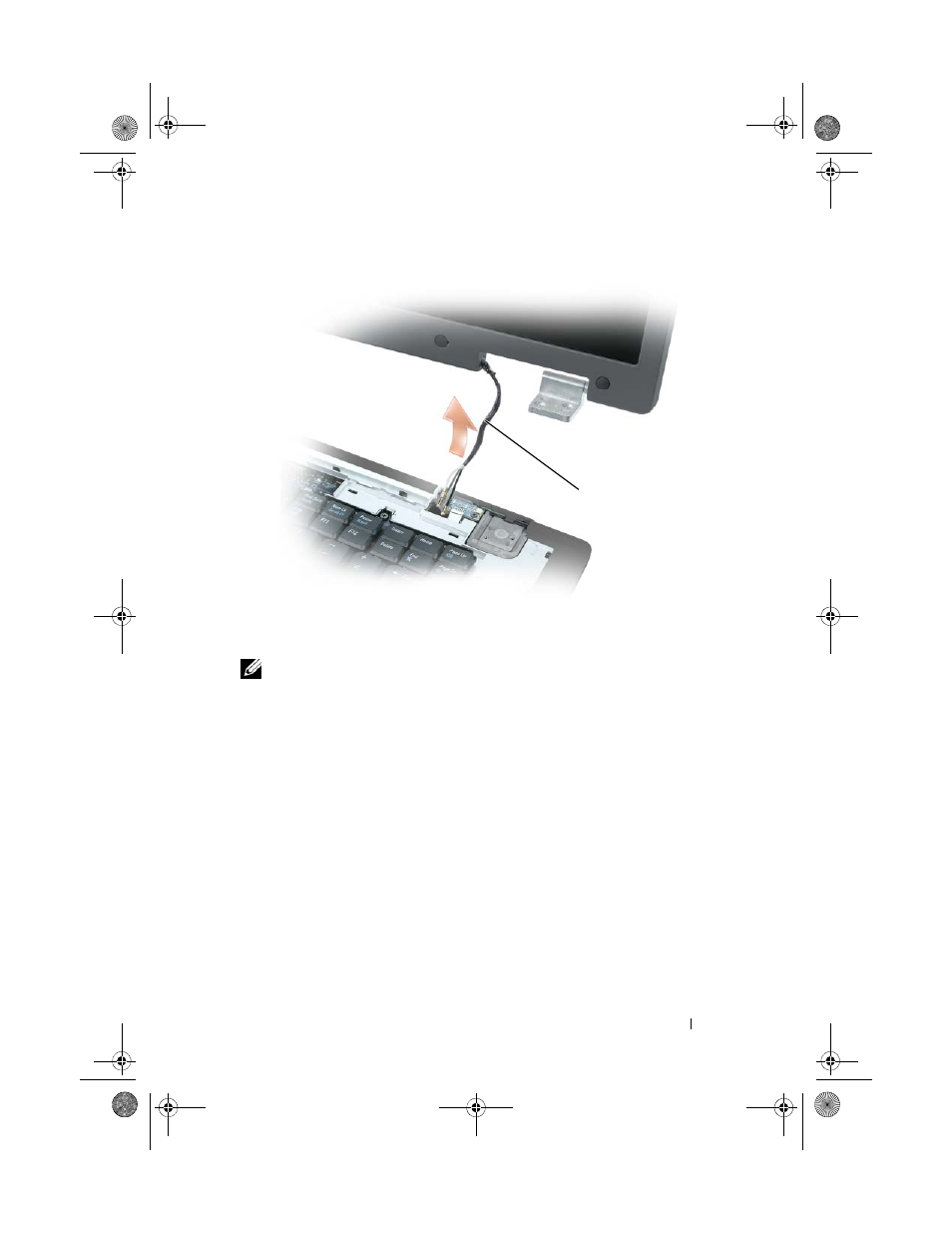

mini-card antenna cables
1
