Dell Precision M6300 (Late 2007) User Manual
Page 177
Adding and Replacing Parts
177
NOTE:
You must detach the mini-card antennas (see step 3) before you can remove
the display assembly. If a mini-card is installed, disconnect the antenna cables from
the card. If one is not installed, detach the antenna cables from their secured
location.

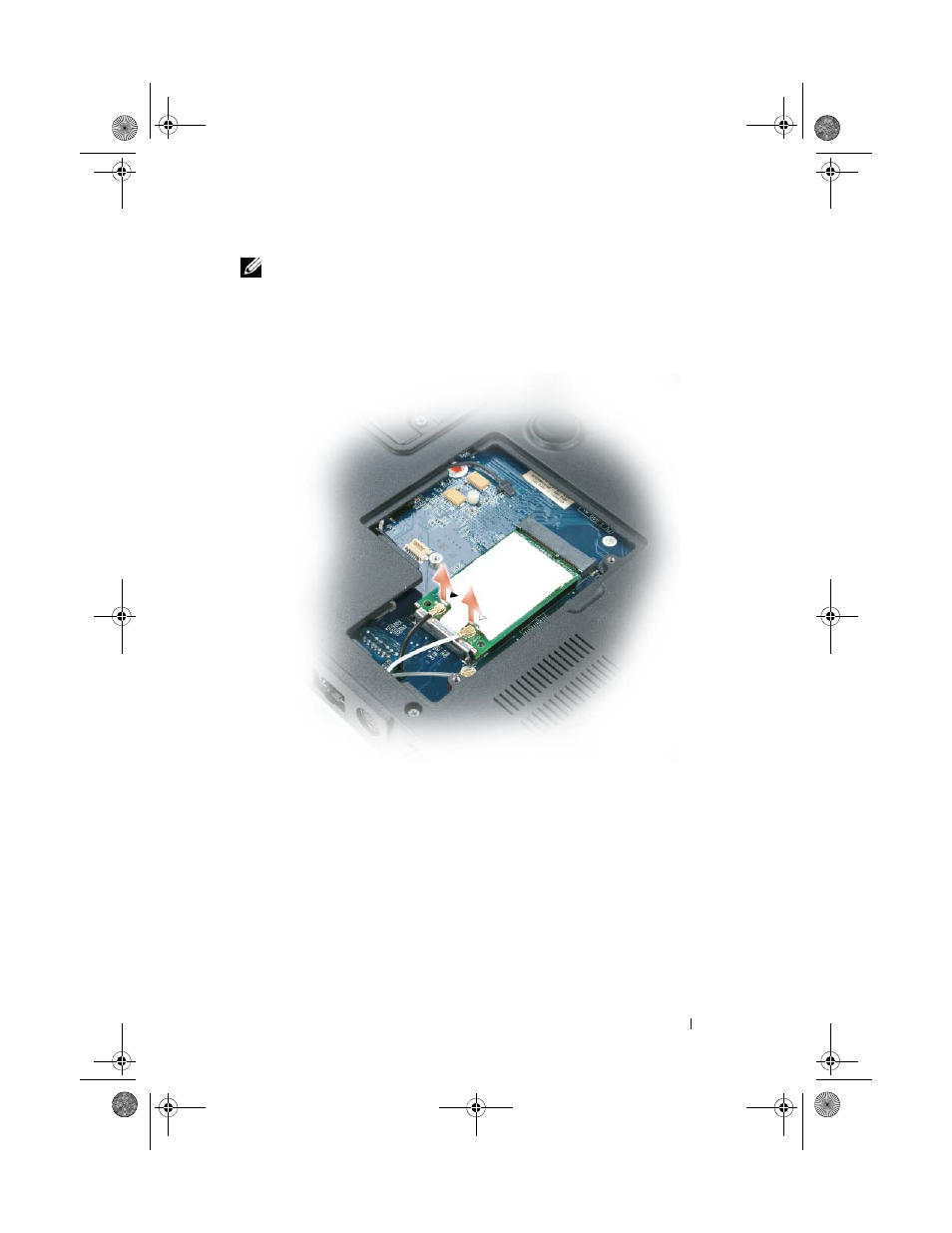

3 Disconnect the antenna cables from the mini-card, if applicable.
4 Turn the computer top-side up.
5 Remove the hinge cover (see "Removing the Hinge Cover" on page 173).
6 Use the pull-tab to disconnect the display cable from the system board,
and then lift up and disengage the display cable from the cable channel.
7 Remove the four M2.5 x 5-mm screws (two on each side) that connect the
display to the computer base.
