Adding and Replacing Parts
Replacing the Smart Card Reader
1 Carefully align the smart card reader over the smart card reader connector
on the system board and press it into place beneath the side notches.
2 Tighten the smart-card reader screw.
System Board
CAUTION:
Only trained service technicians are authorized to remove or replace
the component covered by the following procedure. See your Product Information
Guide for complete information about safety precautions, working inside the
computer, and protecting against electrostatic discharge.
Removing the System Board
CAUTION:
Before you begin the following procedure, follow the safety
instructions in the Product Information Guide.

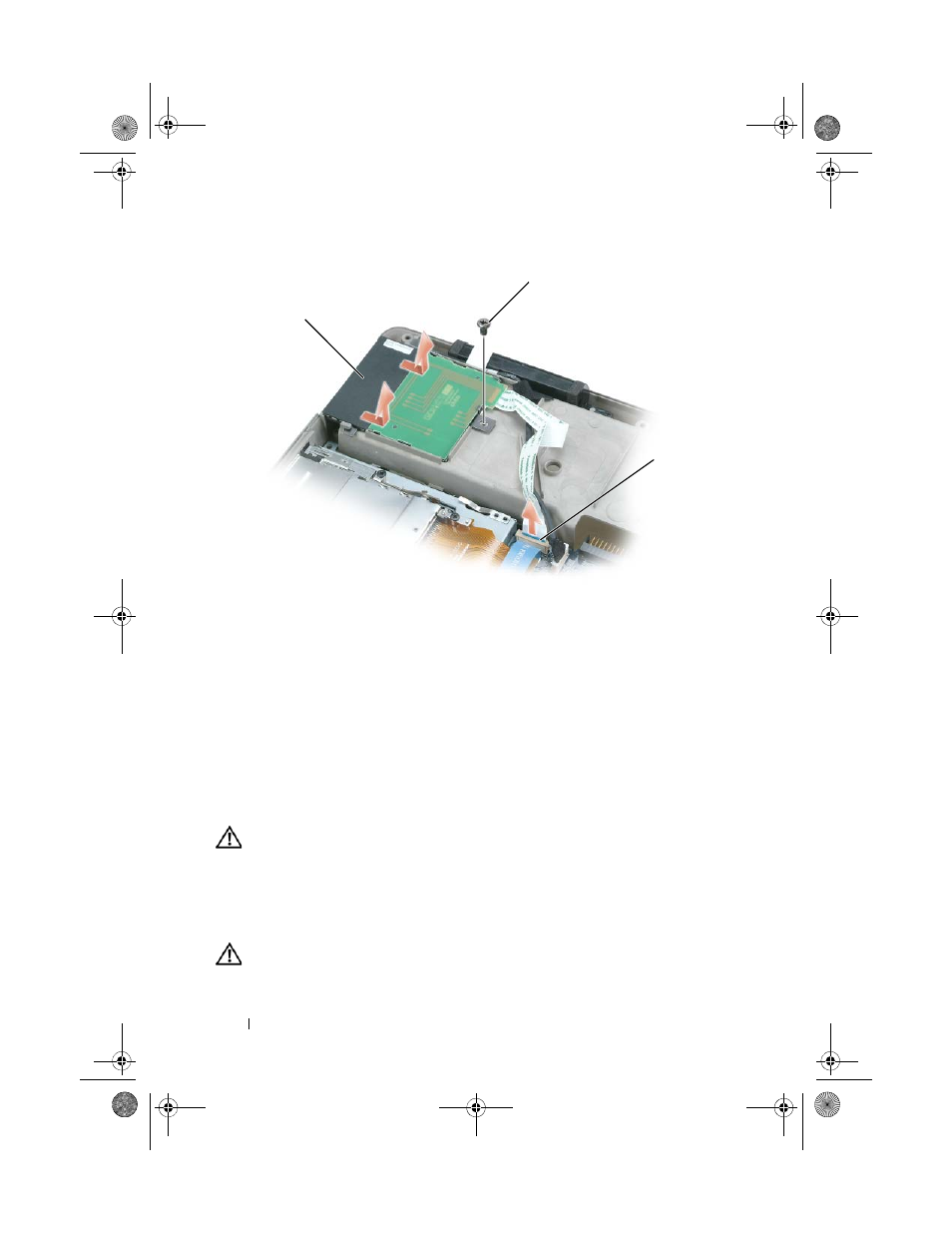

1 smart card reader 2 smart-card reader screw
3 smart-card reader connector on
system board
2
1
3
