Adding and Replacing Parts
215
12 Disconnect the smart-card reader connector from the system board.
13 Disconnect the speaker connector from the system board.
14 Disconnect the connector for the internal card with Bluetooth
®
wireless
technology from the system board.
15 Disconnect the subwoofer connector from the system board.
16 Disconnect the USB-port-board connector from the system board.
17 Disconnect the fan connector(s) from the system board.

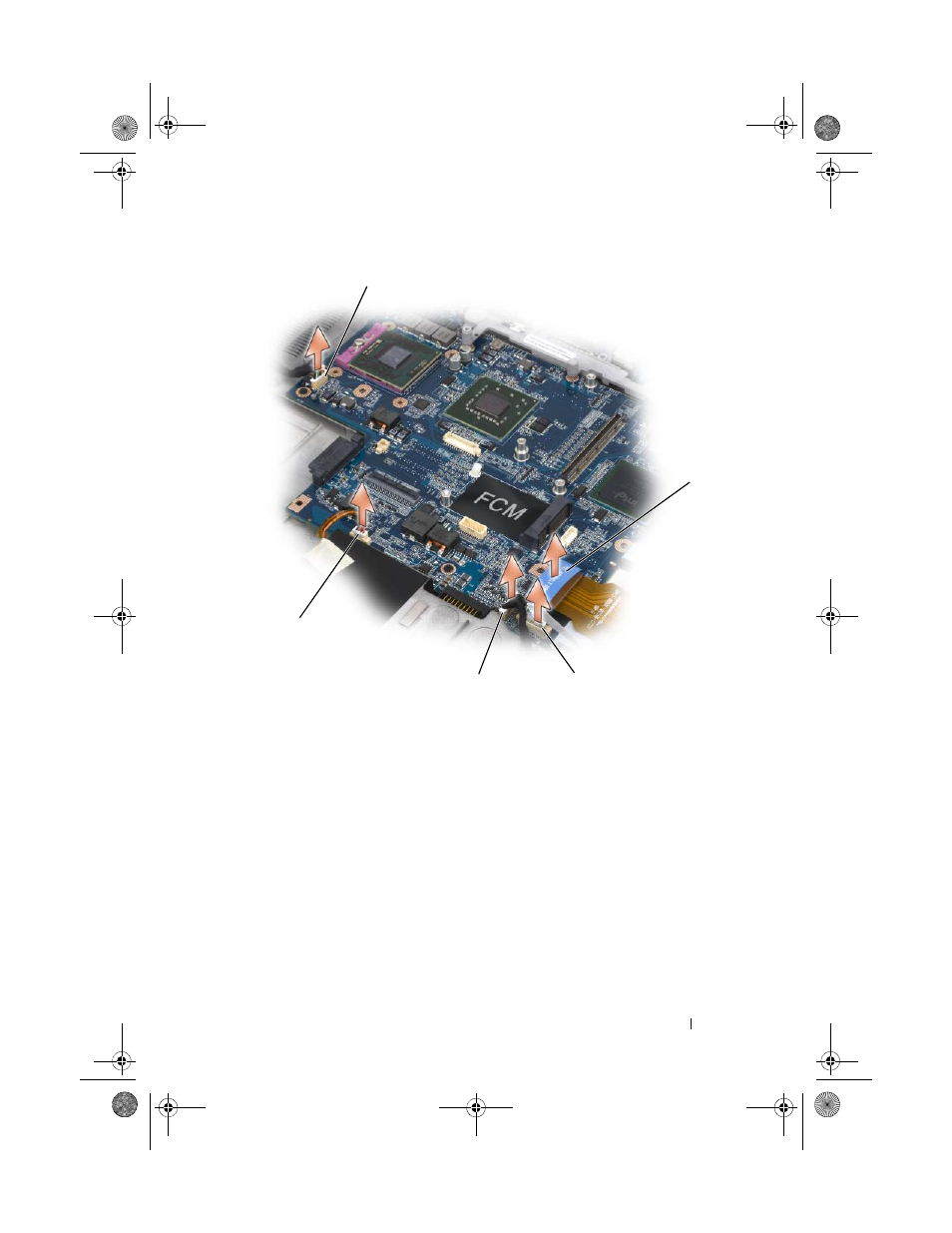

1 USB port-board connector 2 ExpressCard connector
3 smart-card reader connector 4 internal card with Bluetooth wireless
technology connector
5 speaker connector
1
3 4
5
2
