Dell Latitude D630 XFR (Early 2008) User Manual
Page 99
Dell
TM
XFR D630 Fully Rugged Notebook Service Manual
Page 99 of 106
Revision A01

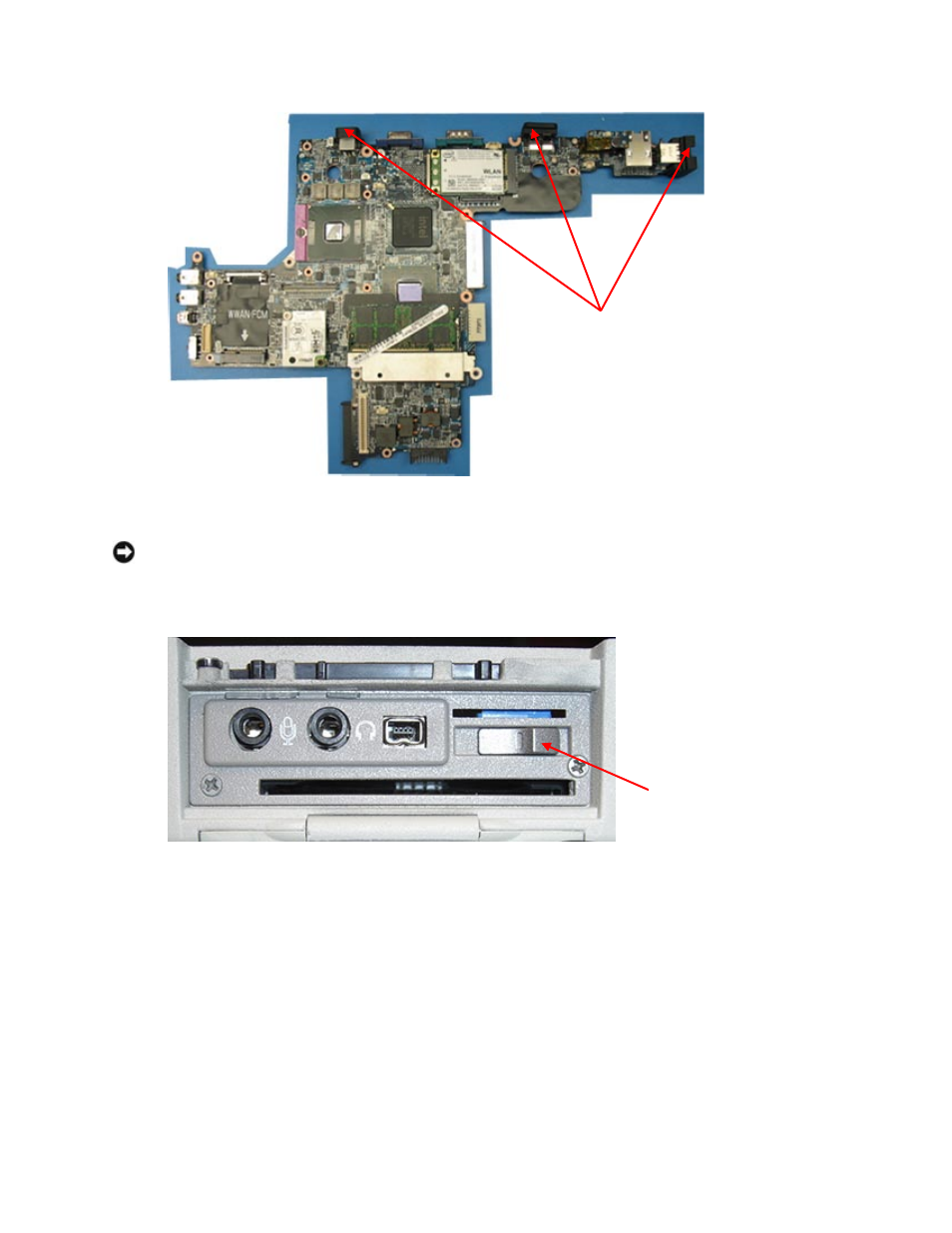

d. Install these 3 gaskets from the original system board onto the new system board.
NOTICE: When installing the system board, ensure that the fan cable antenna cables, and the 3
modem cables are clear of the system board before fitting it into the base, that the audio
connectors are properly seated, and that the tab for the wireless switch fits properly into the
detent on the slider mechanism before installing the system board into the base.
Once system board is partially seated, position the modem cables and the antenna cables by the RF
passthru board so they are not pinched.
Three gaskets
Wireless
Switch
