Dell TM XFR D630 Fully Rugged Notebook Service Manual
Page 27 of 106 Revision A01

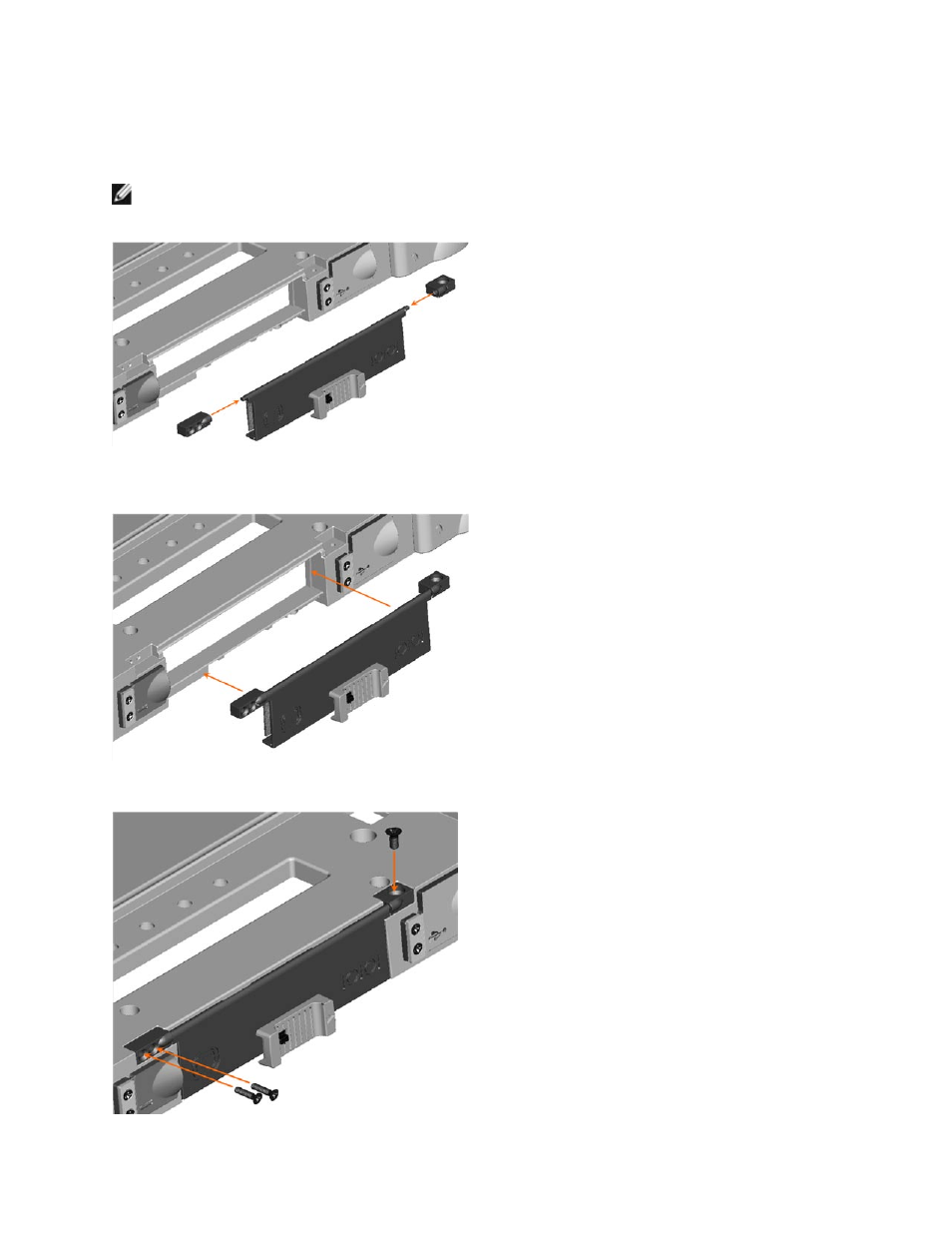

6.3.2 Installing the VGA Door
1. Place the 2 screw mounts on the VGA Door hinge.
NOTE: Be careful to ensure that the single screw mount is placed on the right side of the hinge,
while the 2 screw mount is placed on the left side of the hinge.
2. Place the VGA Door and screw mounts onto the notebook and align with the mounting holes
provided.
3. Secure the VGA Door to the notebook, using the 3 screws provided.
