Page 103: 2 installing the rf passthru board
Dell
TM
XFR D630 Fully Rugged Notebook Service Manual
Page 103 of 106
Revision A01
3. Remove the 2 screws from the base and lift the RF Passthru Board from the base. If the
gasket is not attached to the bottom of the RF Passthru Board, remove the gasket from the
base.
24.2
Installing the RF Passthru Board
NOTE: If a new RF Passthru Board is being installed, the replacement kit will include the RF
Passthru Board, gasket, and 2 antenna cables.
1. Install the gasket to the bottom of the RF Passthru Board.
2. Attach the RF Passthru Board to the base using the 2 screws.

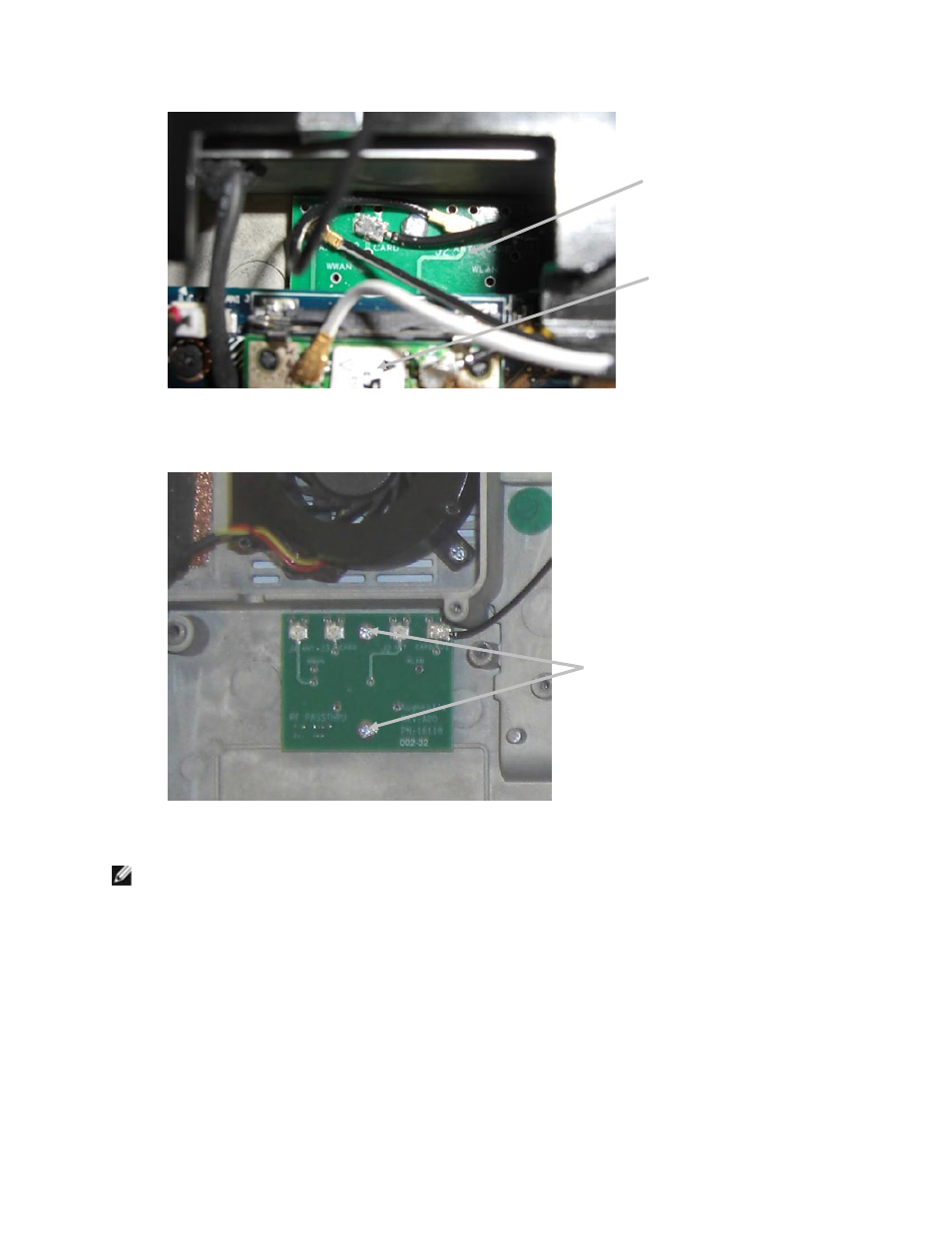

RF Passthru
Board
WWAN
Board
RF Passthru
Board Screws
