Dell TM XFR D630 Fully Rugged Notebook Service Manual
Page 66 of 106 Revision A01

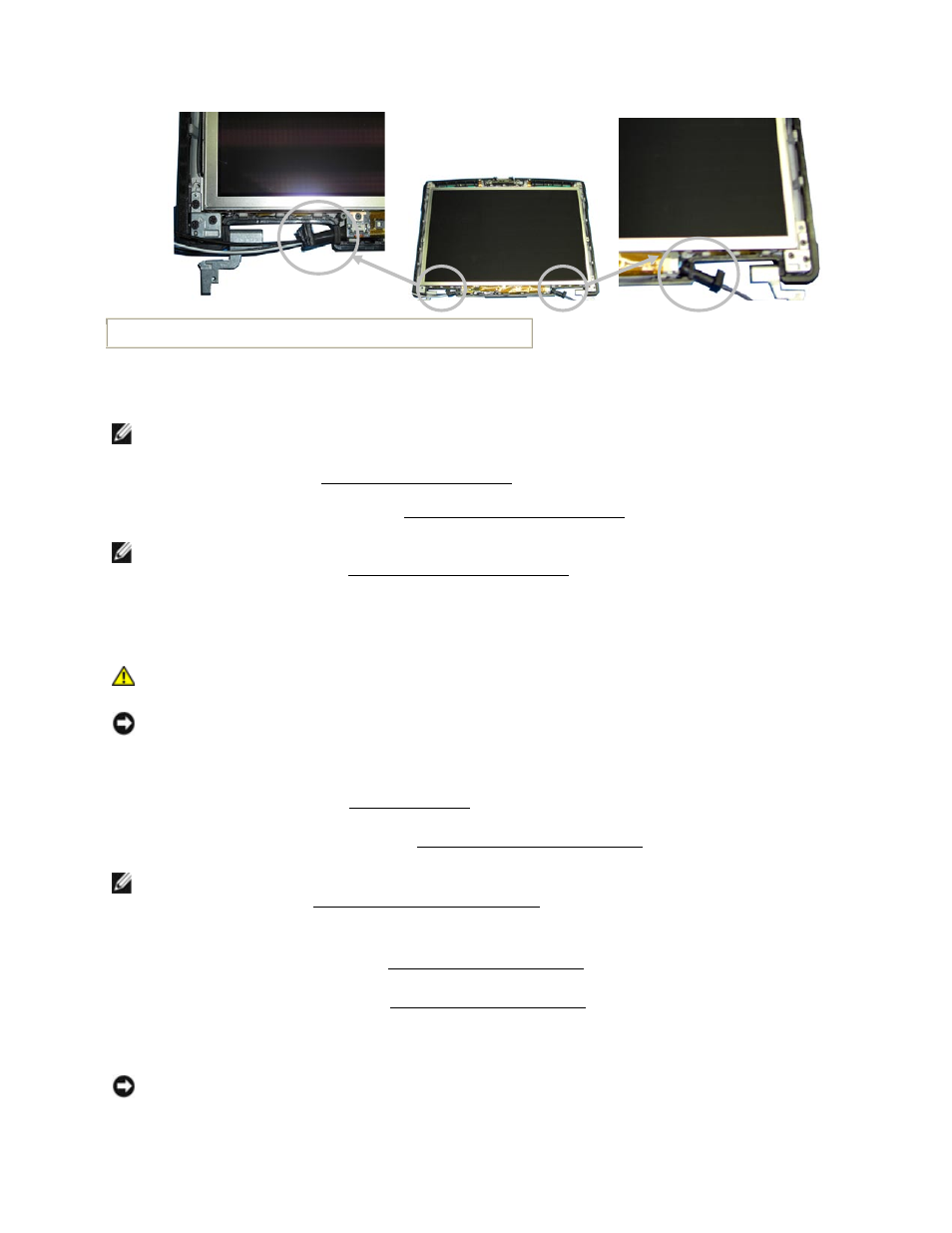

Location of left and right display grommets
6. Install hinge on each side, on top of display panel brackets. Secure each hinge to top cover
with 3 M2.5 X 5-mm screws.
NOTE: Hinges are labeled R (right) and L (left) and must be installed on the correct side.
7. Install the bezel (see
125H
Installing the Display Bezel).
8. Install the display assembly (see
126H
Installing the Display Assembly).
NOTE: Ensure the display cable grommets are properly installed by following the instructions
provided at the beginning of
127H
Installing the Display Assembly.
10.7 Removing the Display Top Cover
CAUTION: Before working inside your computer, follow the safety instructions in the
XFR D630 Product Information Guide and in the XFR D630 User’s Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on the back of the
computer).
1. Follow the instructions in
128H
Before You Begin.
2. Remove the display assembly (see
129H
Removing the Display Assembly).
NOTE: Ensure the display cable grommets were removed by following the grommet removal
instructions provided in
130H
Removing the Display Assembly at step 13.
3. Remove the display bezel (see
131H
Removing the Display Bezel).
4. Remove the display panel (see
132H
Removing the Display Panel).
10.8 Installing the Display Top Cover
NOTE: If replacing the display top cover, remove the replacement display top cover from its
packaging. The new part will have a mylar covering. The antenna cable will be taped to the
inside of the cover. Carefully remove the tape from the antenna cable.
