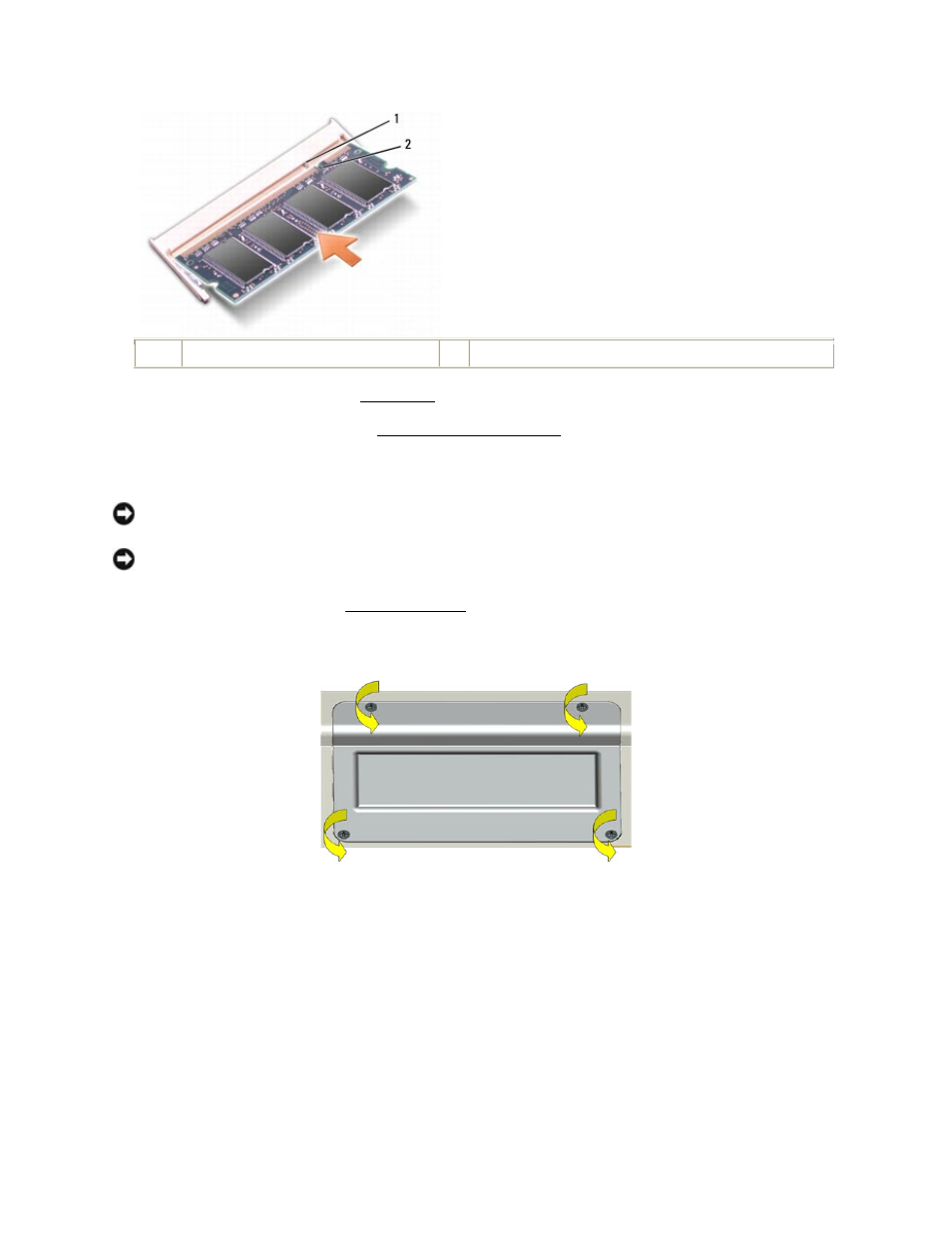

1 tab 2 notch
6. Replace the keyboard (see
108H
Keyboards).
7. Replace the hinge cover (see
109H
Installing the Hinge Cover).
9.2 DIMM B
NOTICE: If you need to install memory modules in two connectors, install a memory module in
the connector labeled "DIMM A" before you install a module in the connector labeled "DIMM B."
NOTICE: Insert memory modules at a 45-degree angle to avoid damaging the connector.
1. Follow the procedures in
110H
Before You Begin.
2. Turn the computer bottom-side up, remove the 4 screws that secure the memory module
cover, and then remove the cover.
