17.1 Removing the Processor Thermal-Cooling
Assembly
CAUTION: Before working inside your computer, follow the safety instructions in the
XFR D630 Product Information Guide and in the XFR D630 User’s Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on the back of the
computer).
1. Follow the instructions in
197H
Before You Begin.
2. Remove the hinge cover (see
198H
Removing the Hinge Cover).
3. Remove any installed media bay device (see
199H
XBay Devices).
4. Remove the keyboard (see
200H
Keyboards).
5. Remove the display assembly (see
201H
Removing the Display Assembly).
6. Remove the palm rest (see
202H
Removing the Palm Rest).
7. Remove the fan cover by removing the 4 screws that secure the fan cover, and then lift the
fan cover out of the base.
8. Remove, in consecutive order, the three screws labeled "1" through "3," on the assembly.

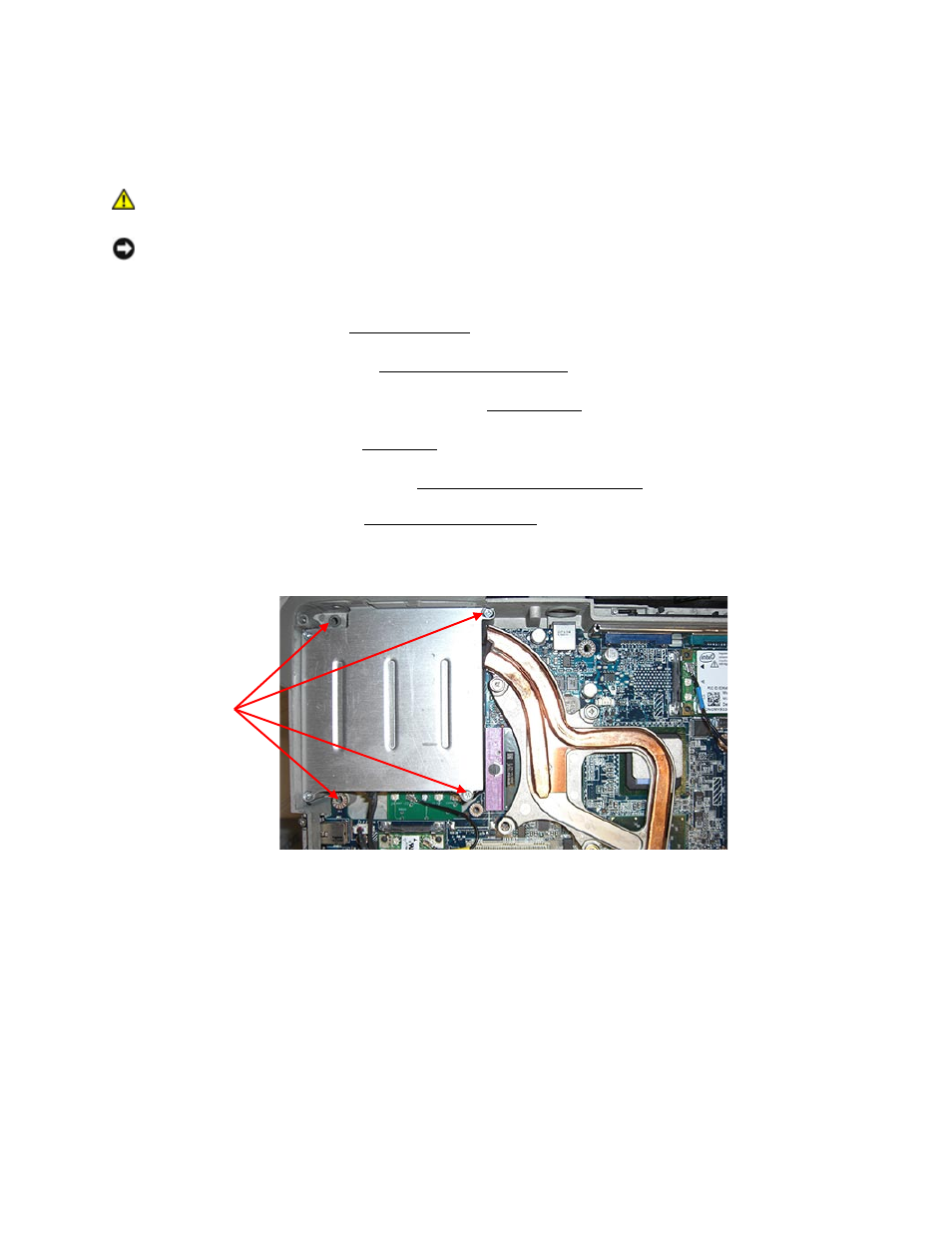

Fan cover
screws (4)
