Dell TM XFR D630 Fully Rugged Notebook Service Manual
Page 20 of 106 Revision A01

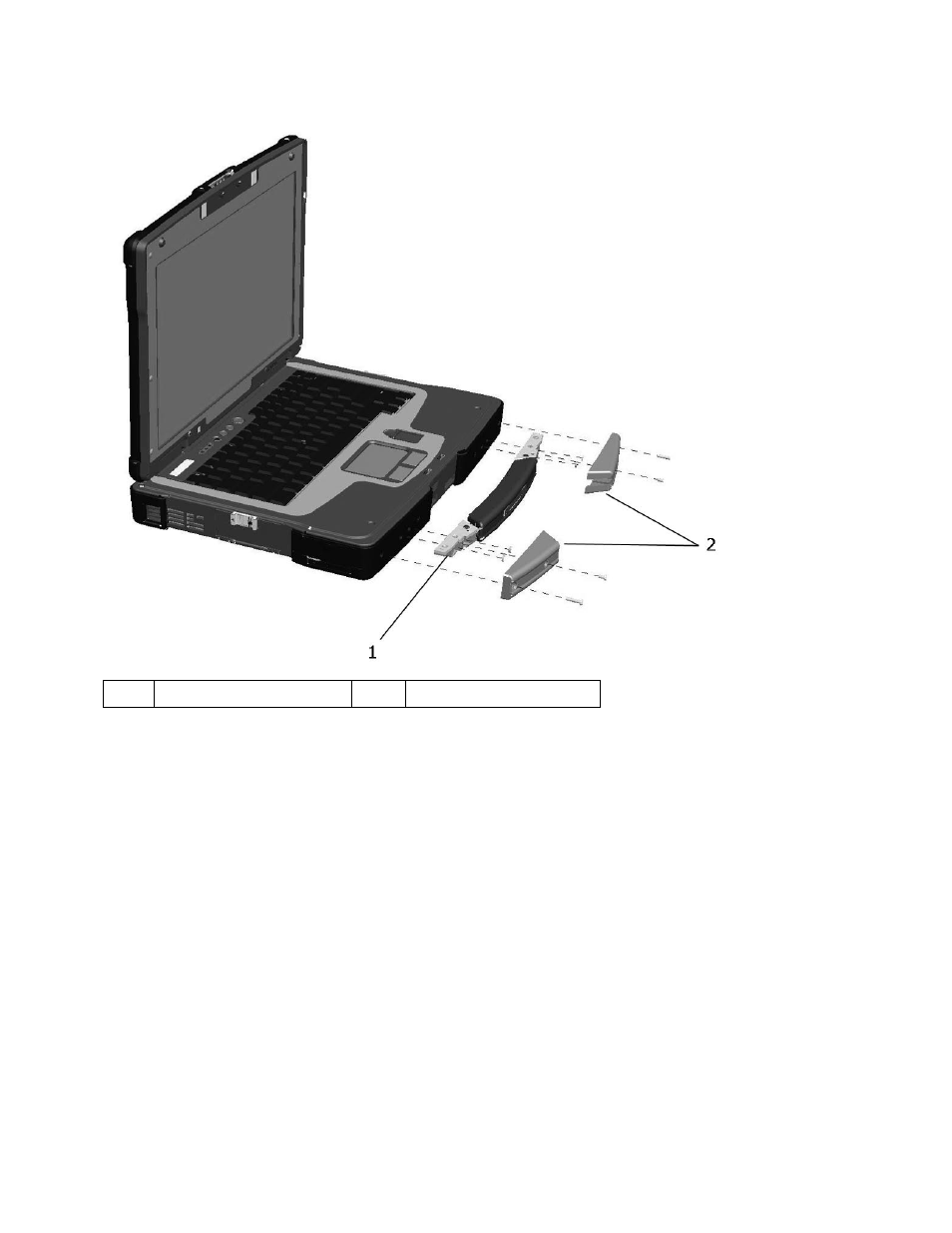

1 Main handle assembly 2 Handle cover (2)
5.1 Removing the Handle
1. Remove the 4 screws (2 on each handle cover) that secure the handle covers as shown in the
figure above.
2. Remove the 6 screws (3 on each side) on the top of the handle assembly that secure the
handle to the handle brackets.
3. Remove the 6 screws (3 on each side) that secure the main handle assembly.
5.2 Installing the Handle
1. Align the main handle assembly with the mounting holes in the front plate of the XFR D630 as
shown in the figure above.
2. Secure the main handle assembly to the XFR D630 using the 6 screws provided.
3. Install the 6 screws (3 on each side) on the top of the handle assembly that secure the handle
to the handle brackets.
