Dell TM XFR D630 Fully Rugged Notebook Service Manual
Page 21 of 106 Revision A01
4. Align each of the handle covers over the main handle assembly ends as shown.
5. If your XFR D630 is equipped with the optional Touch Screen, please refer to
97H
Replacing the
Stylus Clip for instructions regarding installing the stylus clip onto one side of the handle
assembly.
6. Secure the handle covers over the main handle assembly and to the XFR D630 with the 4
screws provided (2 on each side).
6 Port Covers
The XFR D630 utilizes port covers to secure and protect the connectors and devices of the notebook.
6.1 Comms Door
The Comms Door is located on the notebook’s rear panel and protects the RJ-45 and RJ-11
connectors.

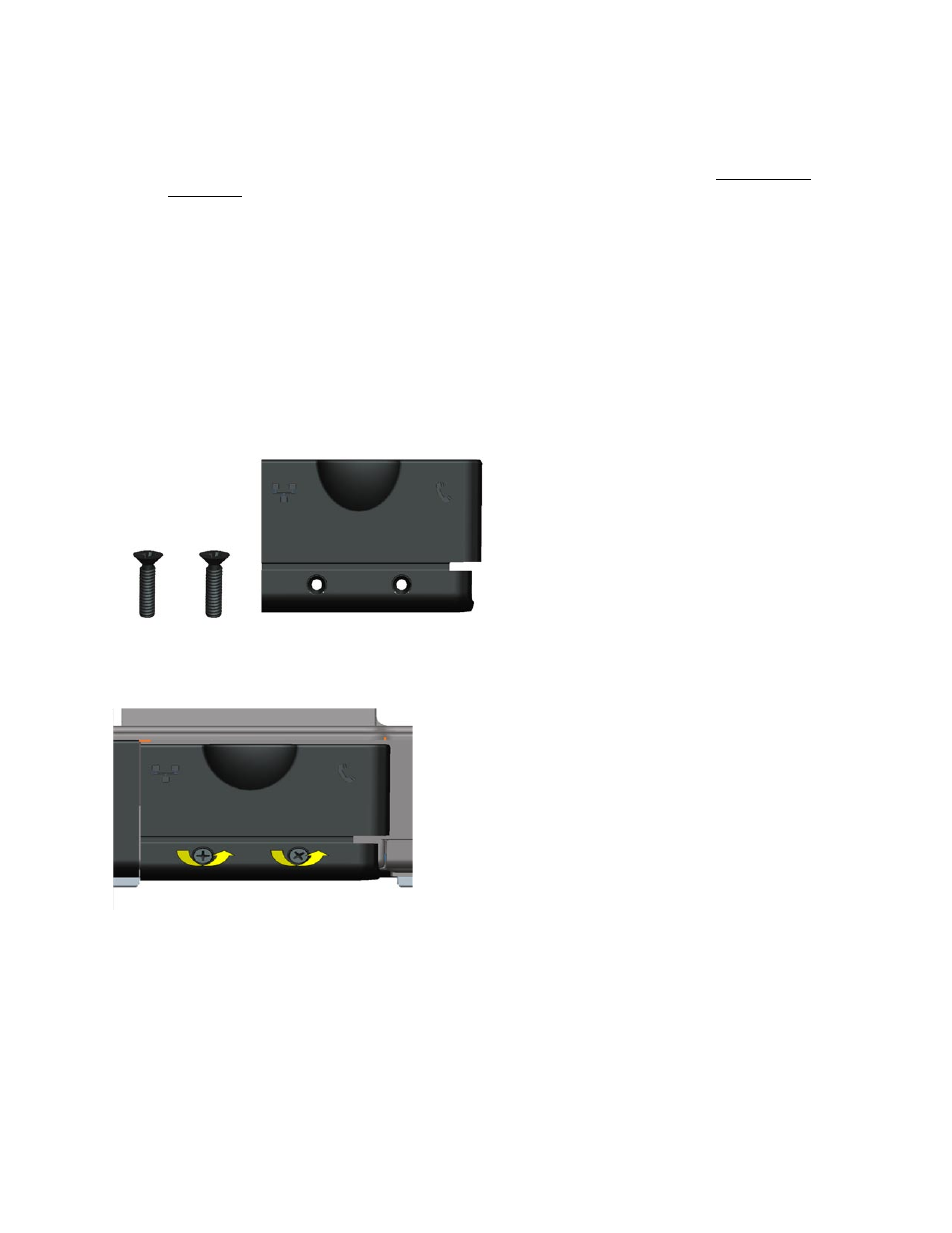

6.1.1 Removing the Comms Door
1. Remove the 2 screws that secure the Comms Door.
2. Remove the Comms Door from the notebook.
