Dell TM XFR D630 Fully Rugged Notebook Service Manual
Page 41 of 106 Revision A01

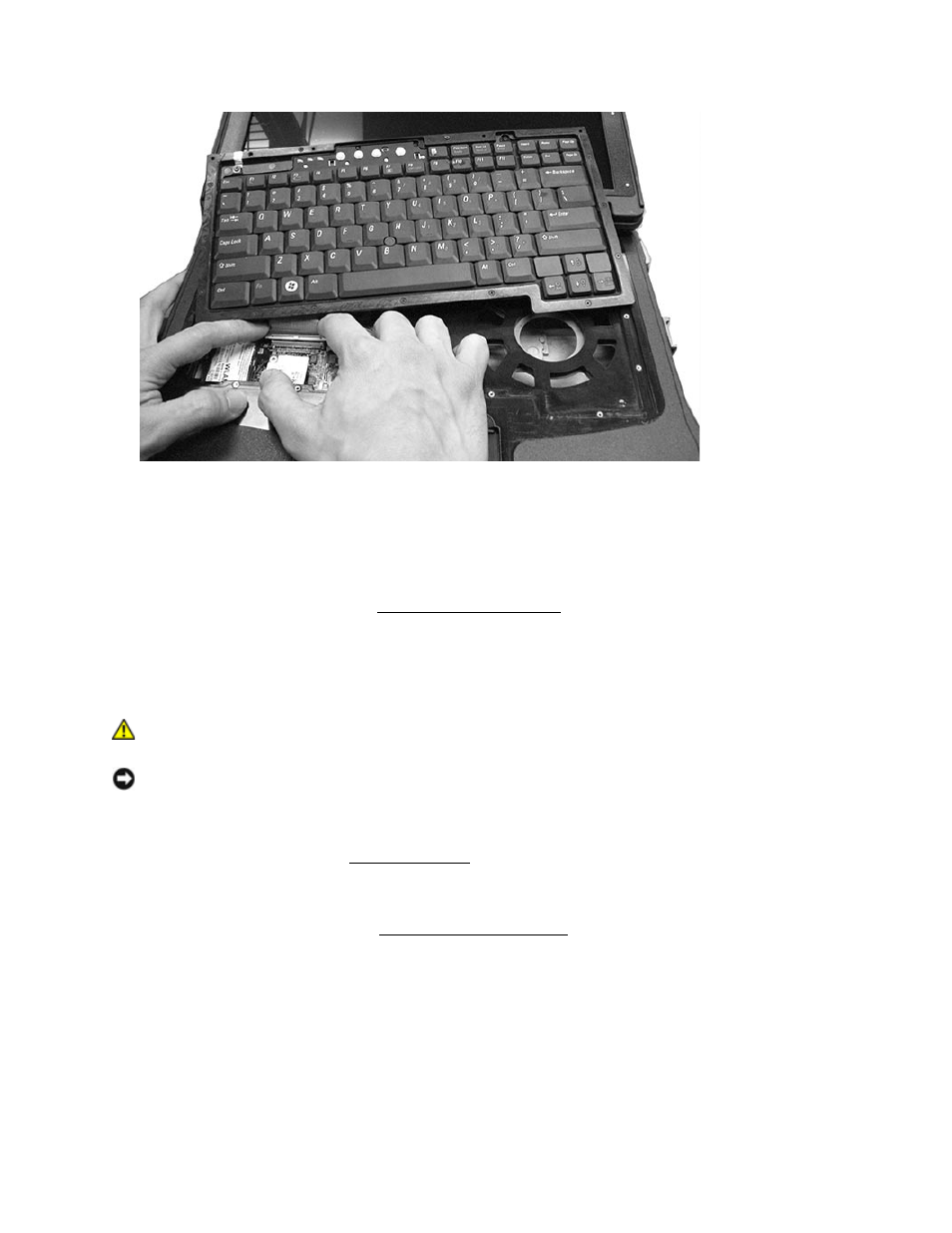

8.1.2 Installing the Standard Keyboard
1. Attach the keyboard cable to the motherboard.
2. Lay the keyboard tray in position and tighten down the 15 captive screws.
3. Replace the hinge cover (see
101H
Installing the Hinge Cover).
8.2 Rugged Keyboard
8.2.1 Removing the Rugged Keyboard
CAUTION: Before working inside your computer, follow the safety instructions in the
XFR D630 Product Information Guide and in the XFR D630 User’s Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on the back of the
computer).
1. Follow the instructions in
102H
Before You Begin.
2. Turn the computer right-side up and open it.
3. Remove the hinge cover (see
103H
Removing the Hinge Cover).
4. Remove the 15 M2x6 captive screws (item 3 in image below) that secure the top and bottom
metal brackets (items 1 and 2 in image below) around the keyboard. Remove the top and
bottom metal brackets.
