Dell TM XFR D630 Fully Rugged Notebook Service Manual
Page 93 of 106 Revision A01
6. Remove the palm rest (see
241H
Removing the Palm Rest).

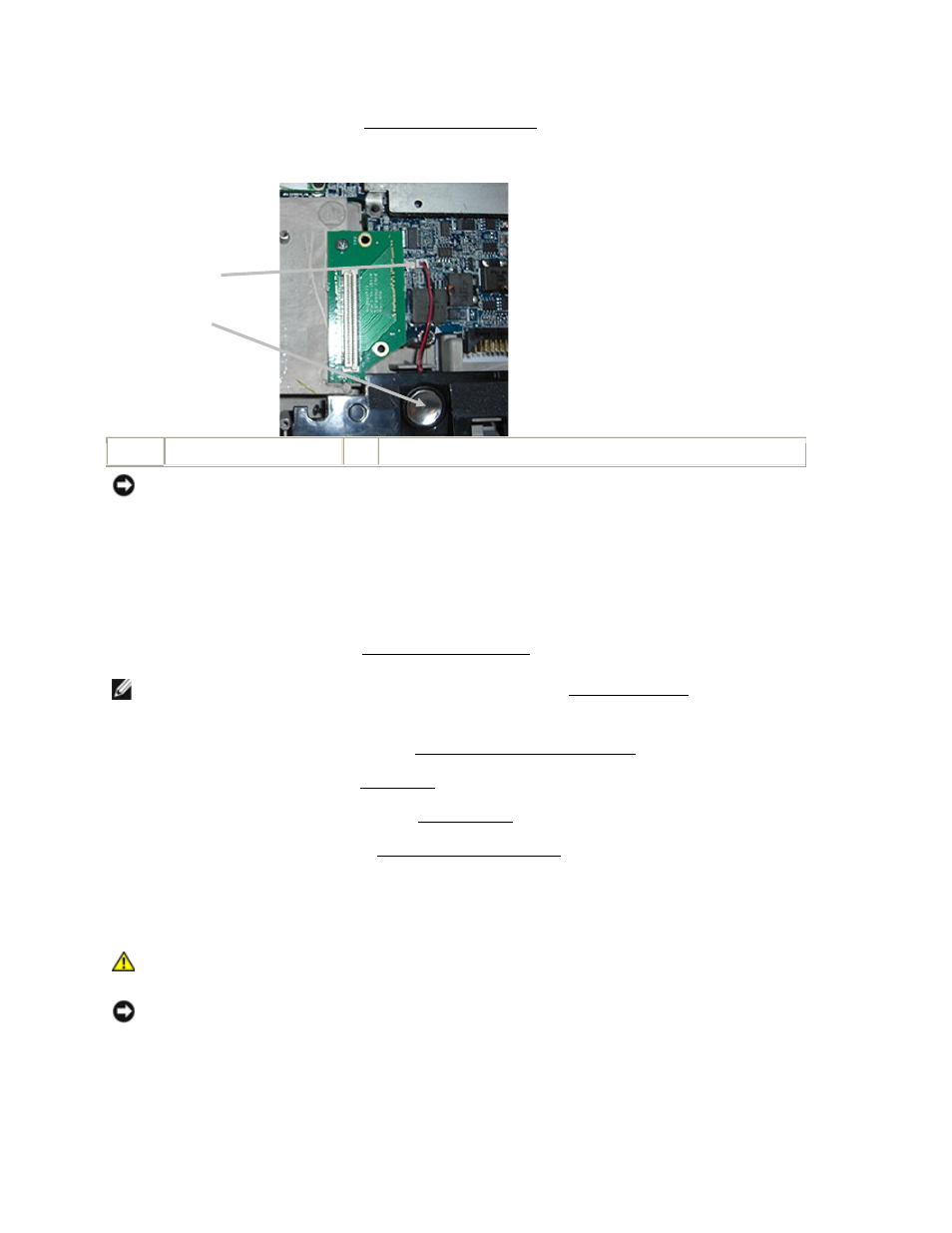

7. Disconnect the speaker connector from the system board.
1 Speaker 2 Speaker connector
NOTICE: Handle the speakers with care to avoid damaging them.
8. Pull the speaker straight up and out of the base.
20.2 Installing the Speaker
1. Install the speaker in the base and attach the speaker cable to the system board.
2. Replace the palm rest (see
242H
Installing the Palm Rest).
NOTE: Ensure that you reconnect the coin-cell battery (see
243H
Coin-Cell Battery) before you replace
the keyboard.
3. Replace the display assembly (see
244H
Installing the Display Assembly).
4. Replace the keyboard (see
245H
Keyboards).
5. Replace the media bay device (see
246H
XBay Devices).
6. Replace the hinge cover (see
247H
Installing the Hinge Cover).
7. Replace the battery.
21 Fan
CAUTION: Before working inside your computer, follow the safety instructions in the
XFR D630 Product Information Guide and in the XFR D630 User’s Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on the back of the
computer).
21.1 Removing the Fan
1
2
