6.8.2 Installing USB Rear Door

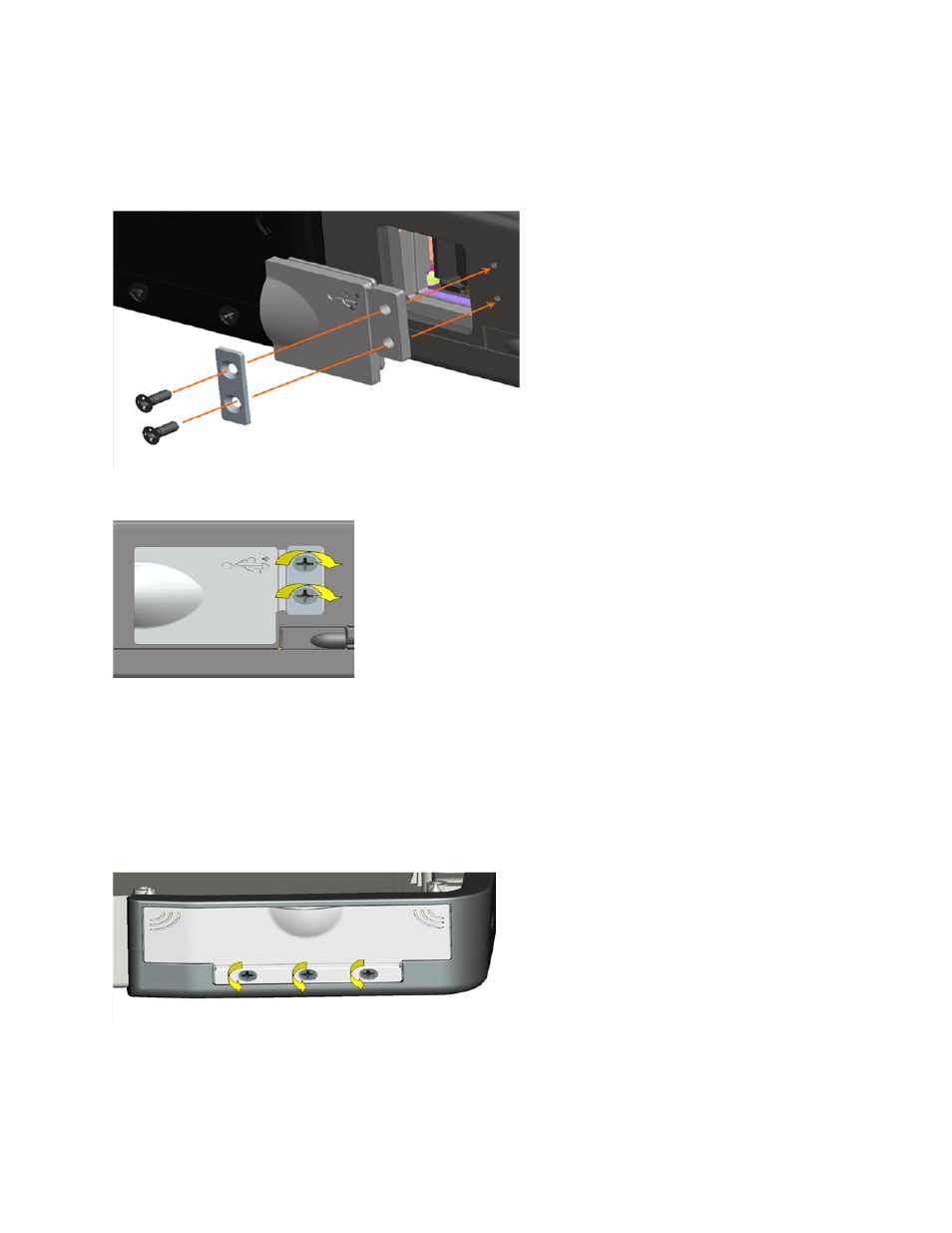

1. Position the USB Rear Door onto the notebook, aligning it with the 2 screw mount holes on the
notebook. Then align the gasket with the screw holes on the USB Rear Door.
2. Using the 2 screws provided, secure the USB Rear Door and the gasket to the notebook.
6.9 PC Card Slot Door
The PC Card Slot Door is located on the notebook’s left side, and protects the notebook’s PC
Card/ExpressCard Slot.
6.9.1 Removing the PC Card Slot Door
1. Remove the 3 screws that secure the PC Card Slot Door to the notebook.
