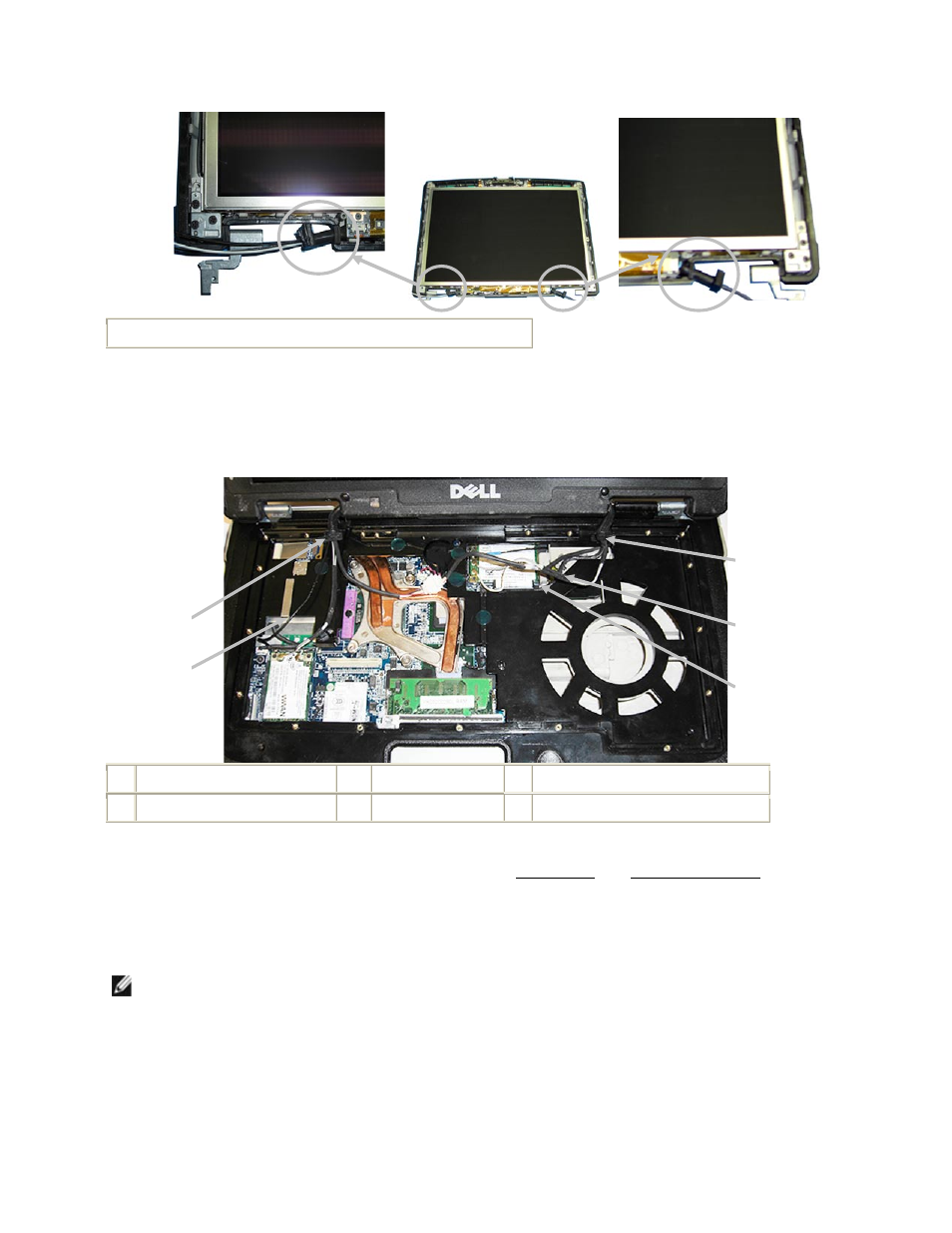

Location of left and right display grommets
2. From the bottom of the computer, install the two M2.5 x 8-mm screws.
3. From the back of the computer, install the two M2.5 x 8-mm screws.
4. Carefully place the antenna cables and the display cable into their routing guides.
1 Left side grommet 2 Antenna cable 3 Right side grommet
4 Antenna cables 5 Display cable
5. Connect the antenna cables to their card(s) (see
116H
WLAN Card and
117H
RF Passthru Board).
6. Connect the display cable:
a. Attach the display-feed flex cable to the system board.
NOTE: The following step is only for the optional Touch Screen display.
b. Attach the touch controller cable to the motherboard controller cable, above the
heat sink.
7. Seat the cable grommets into the square cavities on each side of the palm rest base.
