c. Remove the PC Card or Express Card.
d. Then close the protective door.

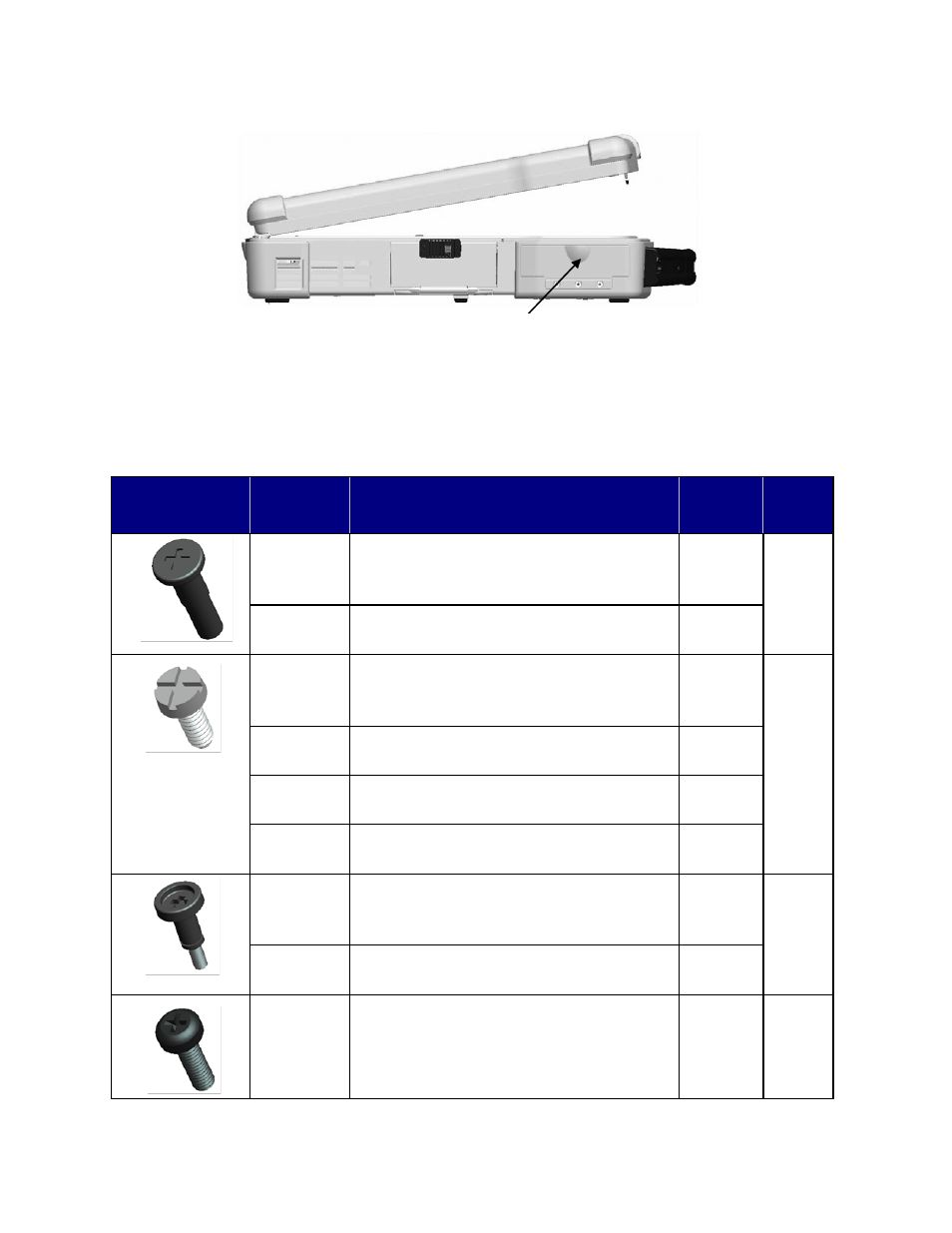

1.4 Screw Chart
SCREW IMAGE
PART
NUMBER
DESCRIPTION Qty/Assy
Total
Qty
18114 SHOULDER SCREW M2.5
6
18815 XFR LCD ASSY TOUCH SCREEN 6
18279 CHEESE HEAD SCREW M1.2 X 3
3
18806 AV DOOR ASSY 1
18808 VGA DOOR ASSY 1
18812 DVD DOOR ASSY 1
18353 SHOULDER SCREW-HEAT SPREADER
3
18035 HEAT SINK ASSY 3
18415 PAN HEAD SCREW M2.5 X 8 -BLACK 19
PC Card Slot
