19.1 Removing the PC Card Cage
1. Follow the instructions in
224H
Before You Begin.
2. Remove the hinge cover (see
225H
Removing the Hinge Cover).
3. Remove any installed media bay device (see
226H
XBay Devices).
4. Remove the keyboard (see
227H
Keyboards).
5. Remove the display assembly (see
228H
Removing the Display Assembly).
6. Remove the palm rest (see
229H
Removing the Palm Rest).

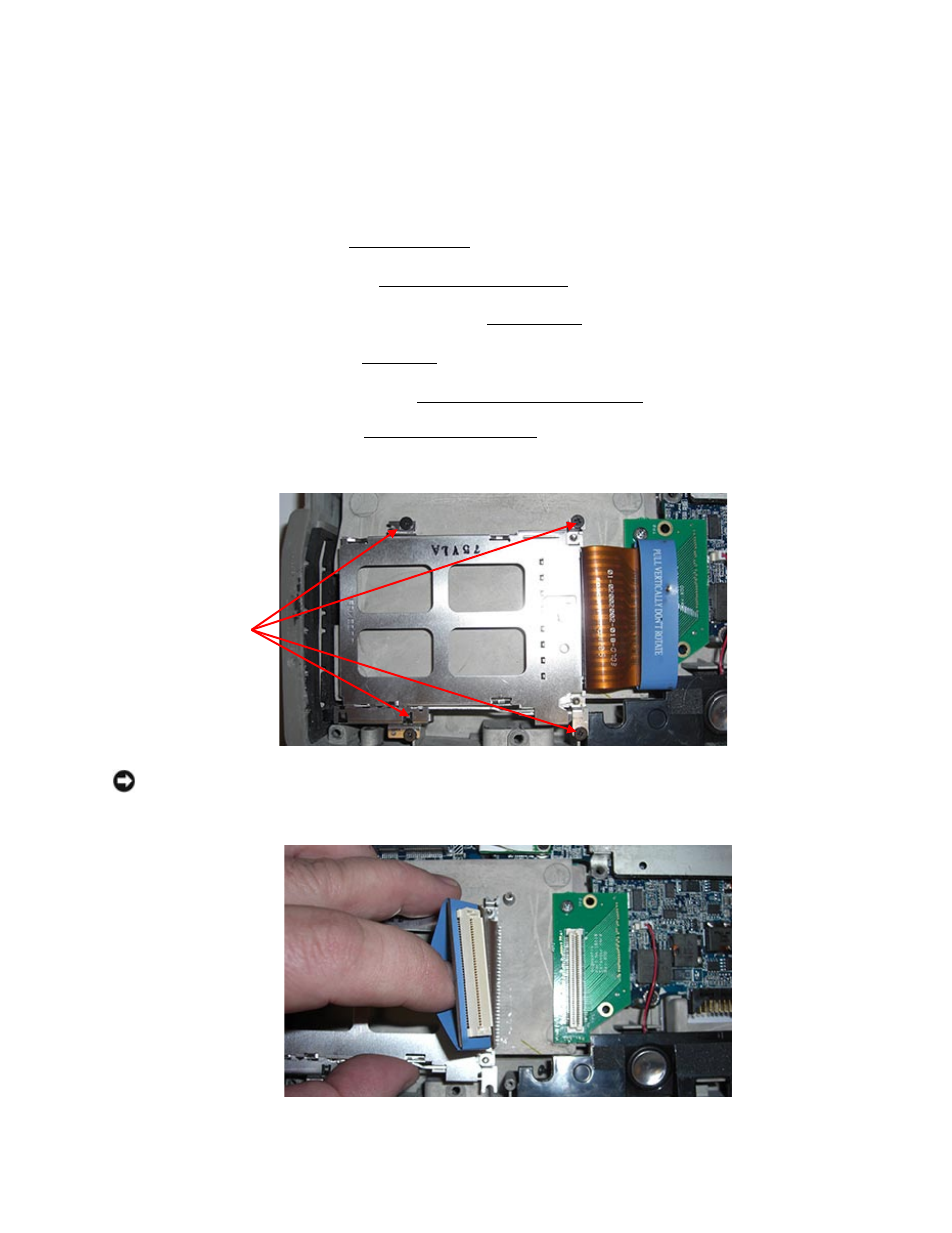

7. Remove the four M2 x 3-mm screws that secure the PC Card reader to the computer.
NOTICE: To avoid damaging the PC Card reader connector, do not rotate or rock the connector
as you remove it. Use firm and even pressure to lift the pull-tab vertically.
8. Use the pull-tab to disconnect the PC Card reader connector from the PC Card interface board.
9. Remove the PC Card Reader assembly.
PC card reader
screws (4)
