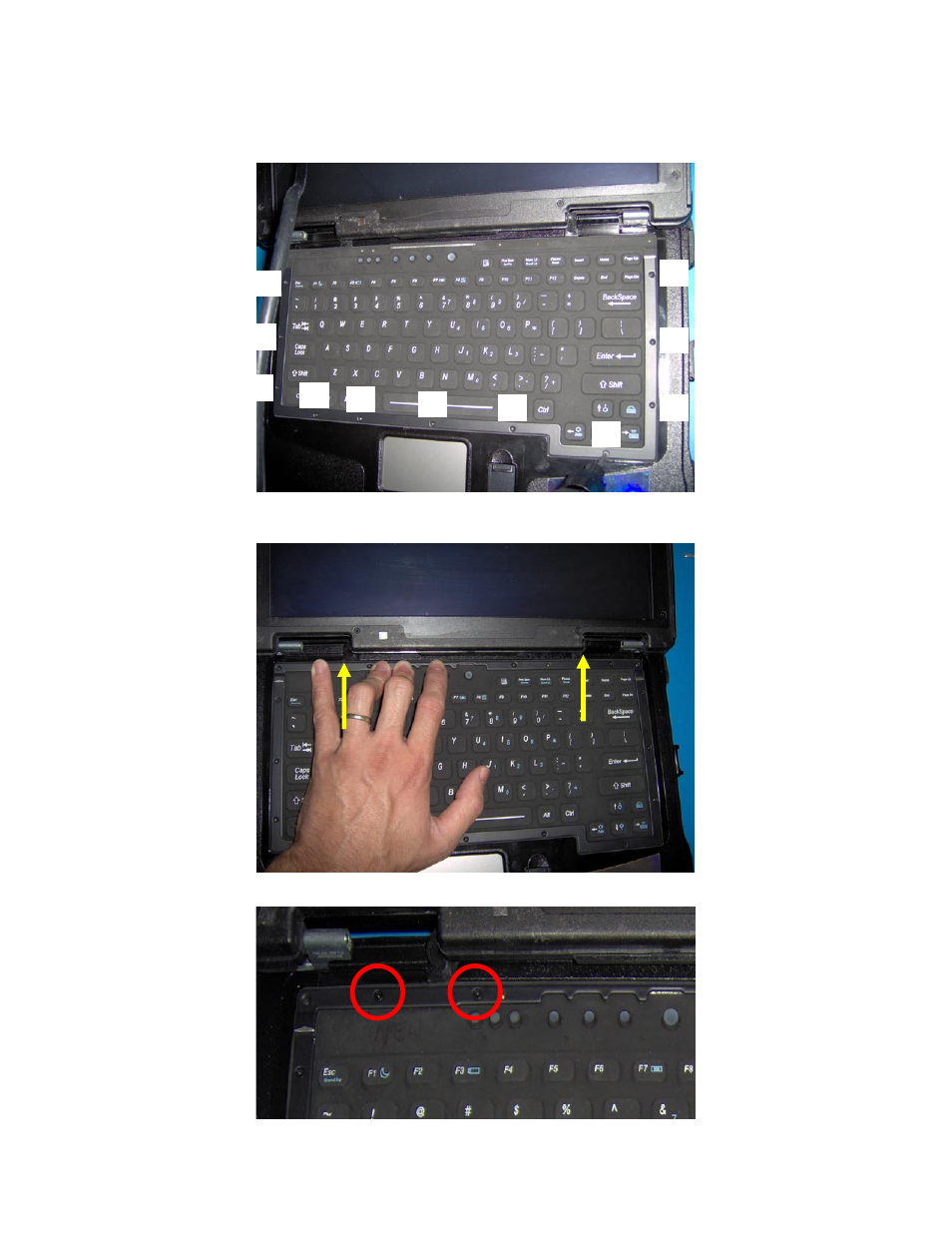

9. Fasten the 11 M2x6 screws in the order shown in the image below to secure the bottom metal
bracket. As each of the screws around the bracket are secured, ensure that the rubber lip is
not folded under the bracket.
10. Assemble the top metal bracket ensuring the rubber lip is not folded under the bracket. Move
the bracket into position in the direction shown in the image below.
11. Fasten the 2 M2x6 screws shown in the image below to the left side of the top metal bracket.
