AlterPath KVM RP
keyboard, monitor, and mouse. The AlterPath KVM RP is available in one
model whose part number is ATP4710.

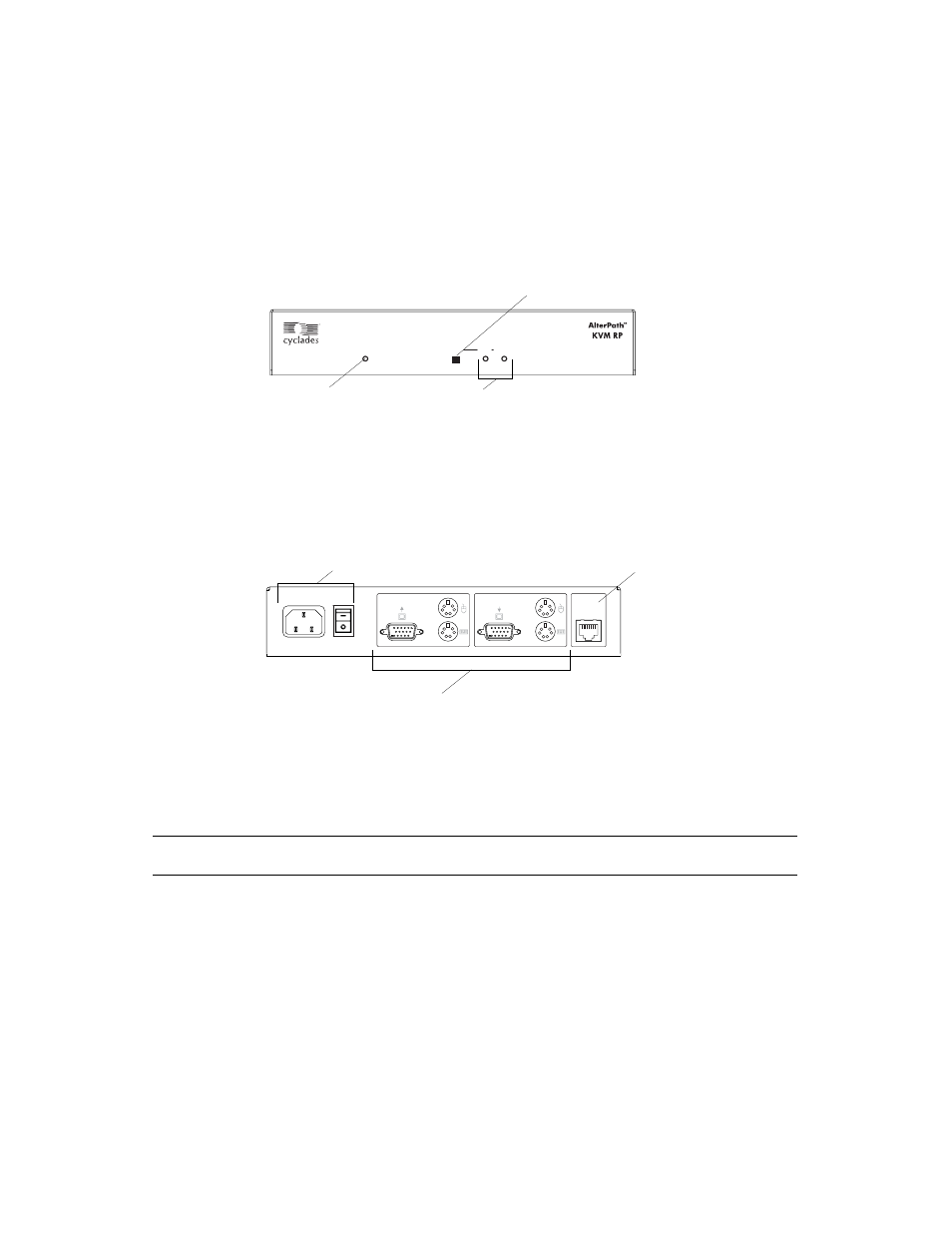

Figure 1-17: KVM RP Front
Connectors on the Back of the KVM RP
The RP has a power supply and a User, a PC, and a Remote User port as
displayed in the following figure.
Figure 1-18: KVM RP Back Panel
The following table offers more details about the use of and cables for each
port on the back of the KVM RP.
Table 1-27: KVM RP Port Types
Port Type Use and Connection Information
Remote User Its RJ-45 connection can be connected by a CAT5 cable to the User 2
port on the KVM/net.
Power Select Local Remote
Power LED
Local-Remote button
Local-Remote LEDs
100-240V
50/60Hz, 0.15A USER REMOT E
KVM
PC
Power Supply and Switch
User and PC ports
Remote User port
