Connect to Server
304 AlterPath KVM/net Installation, Administration, and User’s Guide
Connect to Server
Use this form to connect to servers with either an in-band or a KVM
connection. See “Connecting to Servers Remotely Through the Web
Manager” on page 321.
IPDU Power Management
IPDU power management allows you to manage the outlets plugged into a
PM that is configured on the KVM/net. When you select the “IPDU Power
Mgmt.” option, if you have permission to manage the PM outlets two tabs
appear at the top of the form, as shown in the following figure, “Outlets
Manager” and “View IPDUs Info”.

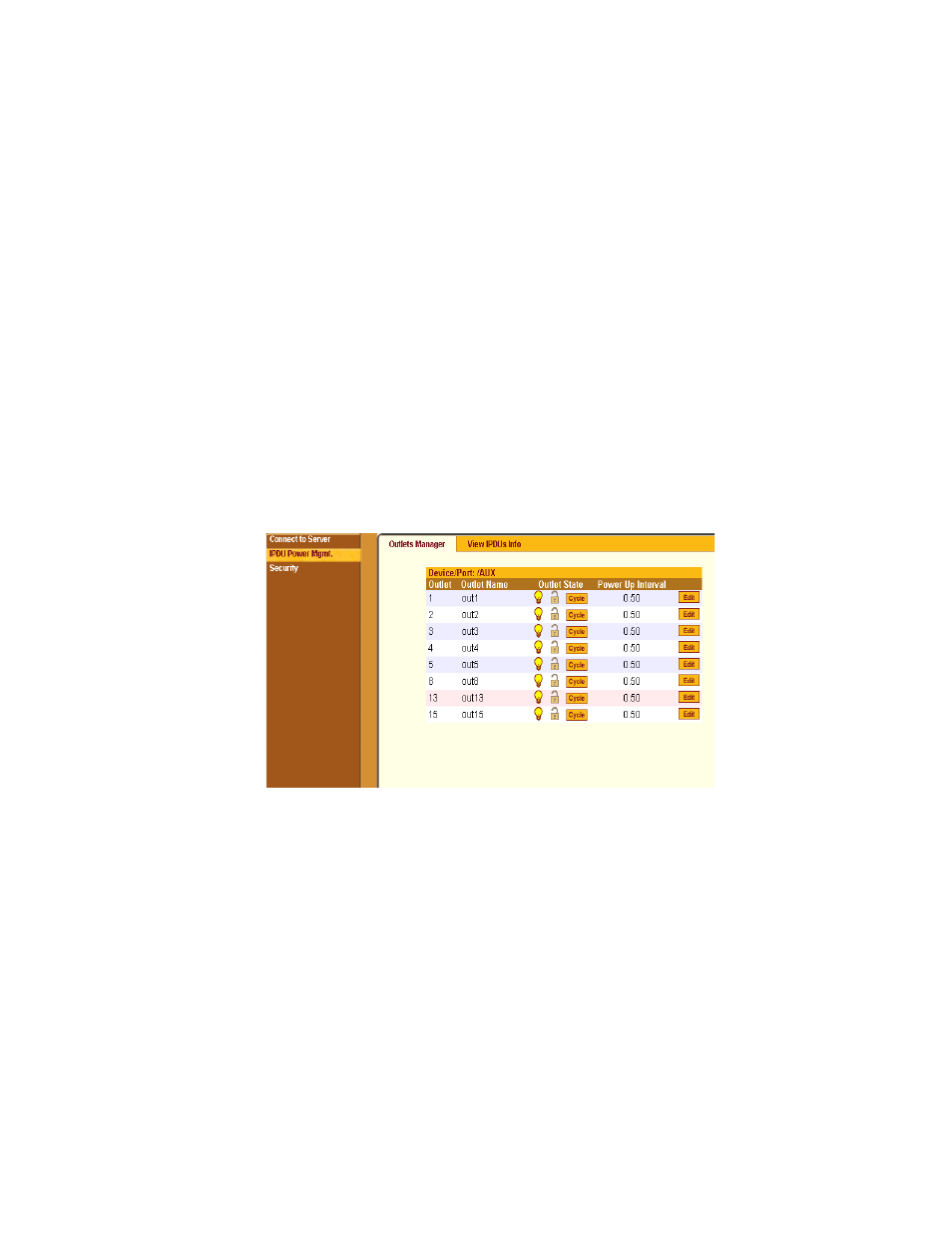

Figure 5-2:Regular User IPDU Power Management Form
The KVM/net offers two modes of controlling power:
• Power control of any device plugged into a PM that is configured on the
KVM/net.
See “Power Control of Any Device Plugged Into an AlterPath PM on the
KVM/net” on page 305.
• Power control of a server while connected to that server through a KVM
port.
