78
PROCEDURES
DME Arc
Approach Example
5
{continued}

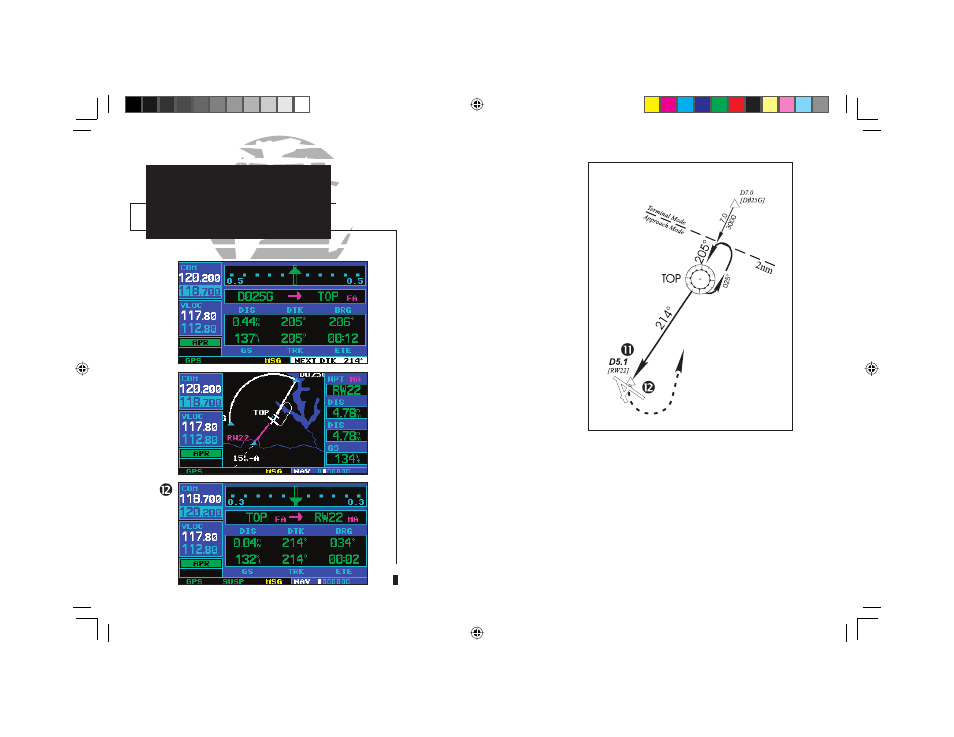

9. As you approach the FAF , “NEXT DTK
214°” will appear in the lower right corner
of the screen. Select this course on the
CDI (or HSI) using the OBS knob and turn
to the final course segment (FAF to MAP)
heading.
10. As you cross the FAF, the destination
sequences to the MAP (“RW22”, the run-
way threshold). With the needle centered,
fly toward the MAP, observing the altitude
minimums dictated by the approach plate.
When viewing the map page, you’ll note
that the final course segment is displayed
in magenta (the active leg of the flight plan
always appears in magenta) and a dashed
line extends the course beyond the MAP.
11. As you approach the MAP, a waypoint alert
(“APPRCHING WPT”) will appear in the
lower right corner.
12. As you cross the MAP, “SUSP” will appear
above the O key, indicating that auto-
matic sequencing of approach waypoints
will be suspended at the MAP. A “from” indi-
cation will be displayed on the CDI and default NAV page, but course guidance along the final approach
course will continue. Do NOT follow this extended course. Follow published missed approach procedures
using the O key to initiate the missed approach sequence, as outlined on page 72.
DO NOT USE FOR
NAVIGATION
