2 NAV PAGES
Map Page
Different symbols are used to distinguish between waypoint types. The identifi ers for
any on-screen waypoints can also be displayed. (By default the identifi ers are enabled).
Special-use and controlled airspace boundaries appear on the map, showing the indi-
vidual sectors in the case of Class B or Class C airspace. The following symbols are used

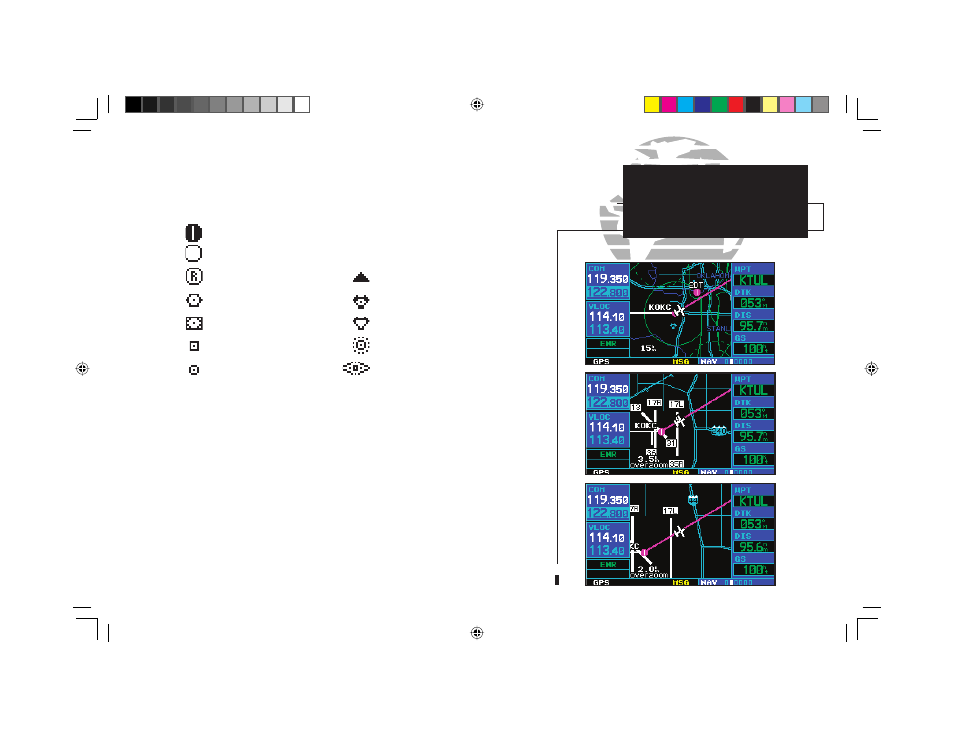

to depict the various airports and navaids on the map page:
Airport with hard surface runway(s); Primary runway shown
Airport with soft surface runway(s) only
Private Airfield Intersection
VOR VORTAC
VOR/DME TACAN
DME NDB
Localizer Locator Outer Marker
The map display can be set to 23 different scale settings from 500 feet to 2000 nautical
miles (statute and metric units are also available). The scale is indicated in the lower left-
hand corner of the map display, and represents the top-to-bottom
distance covered by the map display.
To select a map scale:
1. Press the up arrow side of the R key to zoom out to a larger map area.
2. Press the down arrow side of the R key to zoom in to a smaller map area and more
detail.
