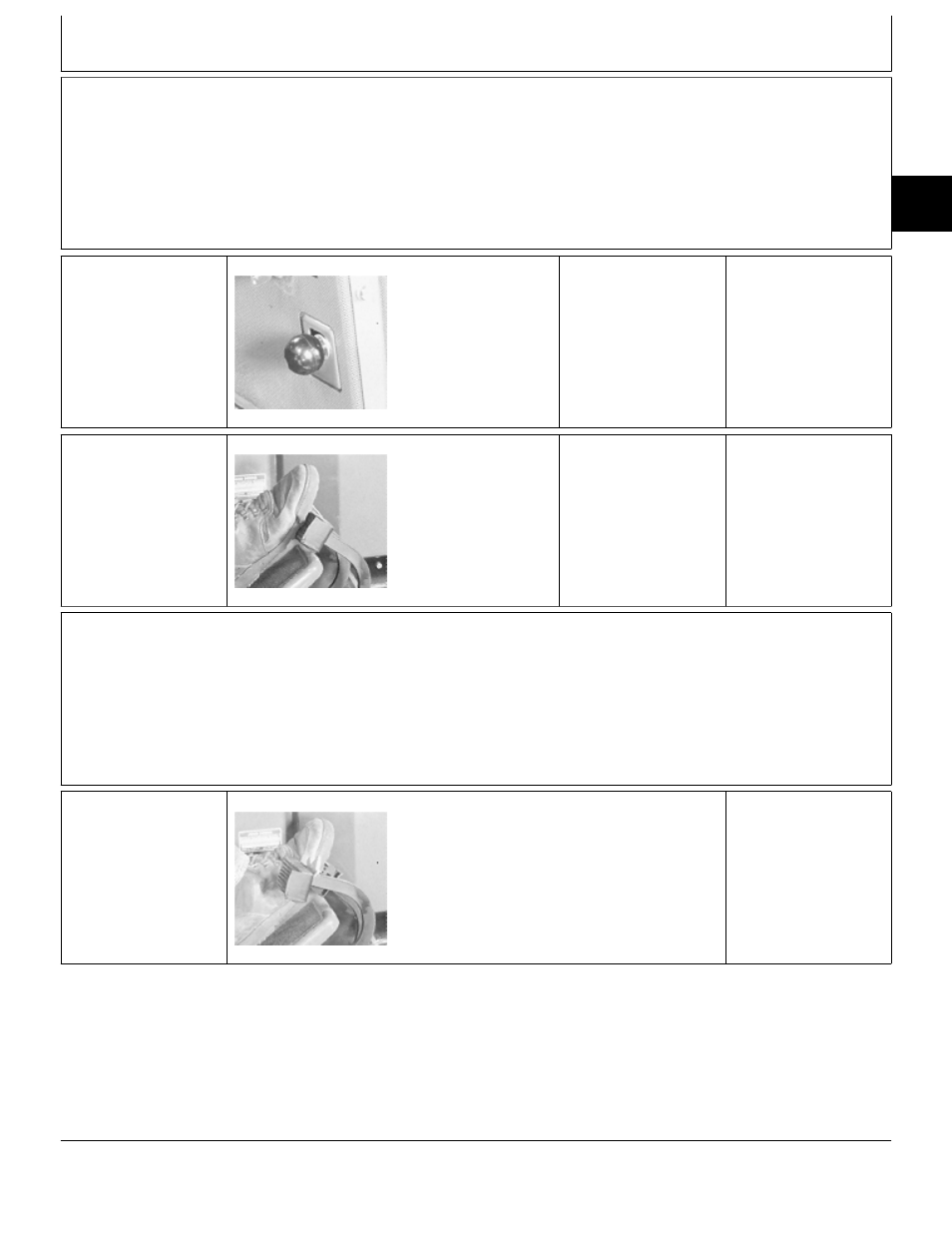

SERVICE PARK BRAKE CHECK
3a
Park Brake Lock
Lever Check
M49000 -UN-08JAN90
Depress brake pedal(s)
and engage service
park brake lock.
LOOK: Service park
brake must remain in
park position.
Disengage service park
brake.
Move park brake knob
up and down.
FEEL: Slight spring
pressure should be felt.
OK: GO TO
3b
NOT OK: Adjust park
brake linkage. See
Section 60.
3b
Brake Pedal(s)
Check
M49001 -UN-08JAN90
Latch brake pedals
together, if equipped.
Depress brake pedal(s)
and engage service
park brake lock.
NOTE: 318 Shown
Try to move hydrostat
lever forward or
reverse.
FEEL: Lever must NOT
move from N/STOP
position.
OK: GO TO
Å
NOT OK: Adjust park
brake linkage and
shoes. See Section 60.
Å
TURN BRAKE CHECK (318 AND 420)
Drive machine forward
at medium speed.
M49002 -UN-08JAN90
Depress left, then right
turn brake.
LOOK: Left, then right
wheel must stop and
other must continue
driving.
OK: System normal.
NOT OK: Inspect and
adjust brake shoes.
See Section 60.
