John Deere 318 - Manual (Page 205)

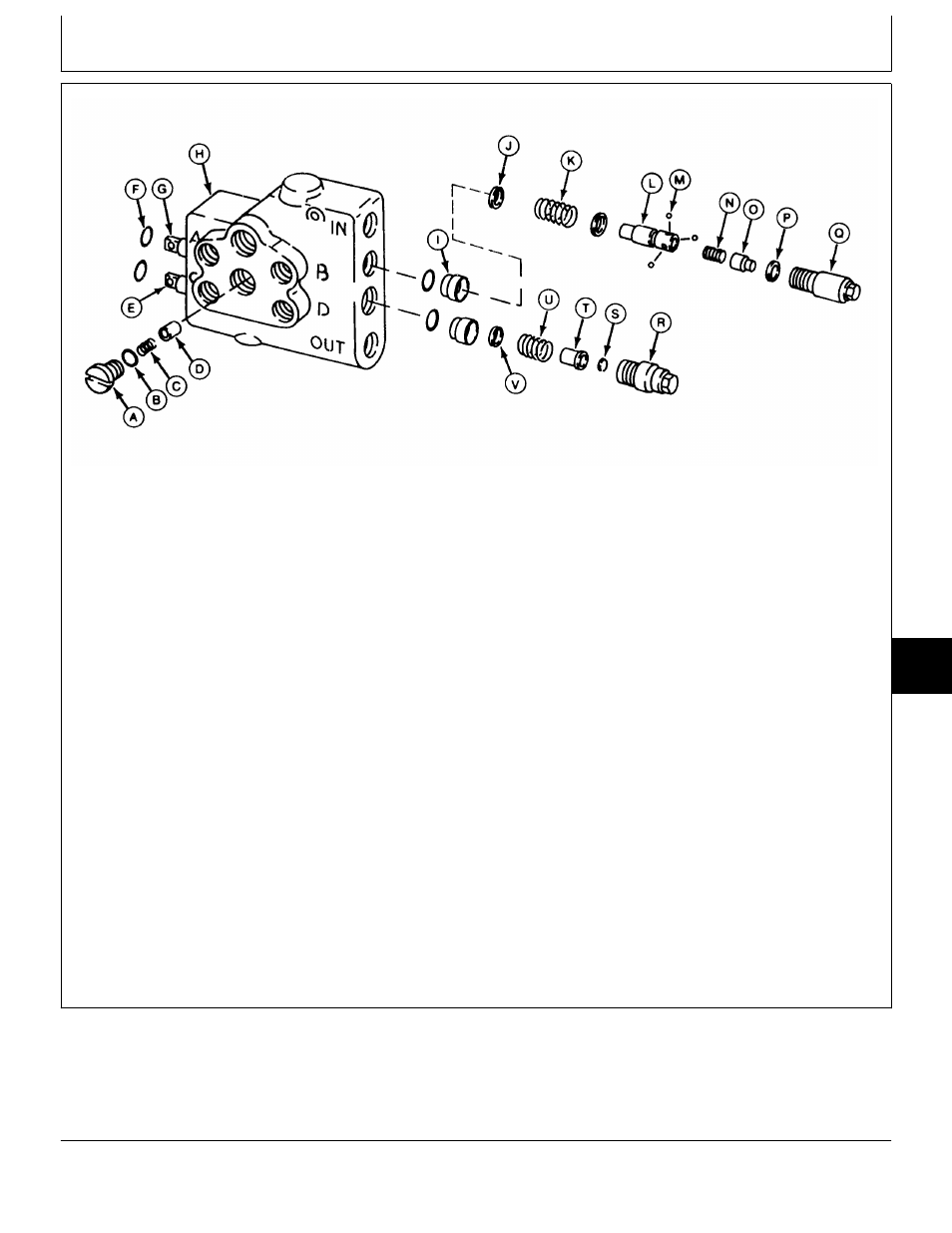

A—Check Valve Plug (2 F—O-Ring (4 used) L—Detent R—Cap
used) G—Float Detent Spool M—Ball (3 used) S—Snap Ring
B—O-Ring (2 used) H—Body N—Spring T—Spacer
C—Spring (2 used) I—Bushing (2 used) O—Cap U—Spring
D—Poppet (2 used) J—Washer (2 used) P—Washer V—Washer
E—Spool K—Spring Q—Cap
Versions Two and Three
IMPORTANT: Spools and body are matched and
must be replaced as a unit. Spools
must be installed into the same
bores from which they were
removed for proper operation of
each function.
Always use new O-rings. Damaged
or used parts will leak.
NOTE: Note location and position of fittings and
linkages to aid in assembly.
Lubricate all O-rings with petroleum jelly
during assembly.
Inspect all parts for wear or damage. Replace as
necessary.
• Apply clean John Deere Low Viscosity HY-GARD ®
oil on all internal parts during assembly.
• Apply MPG-2 ® Multi-Purpose Polymer Grease on
springs (K, N and U) and inside of caps (Q and R).
• Tighten caps (Q and R) to 31 N·m (23 lb-ft).
