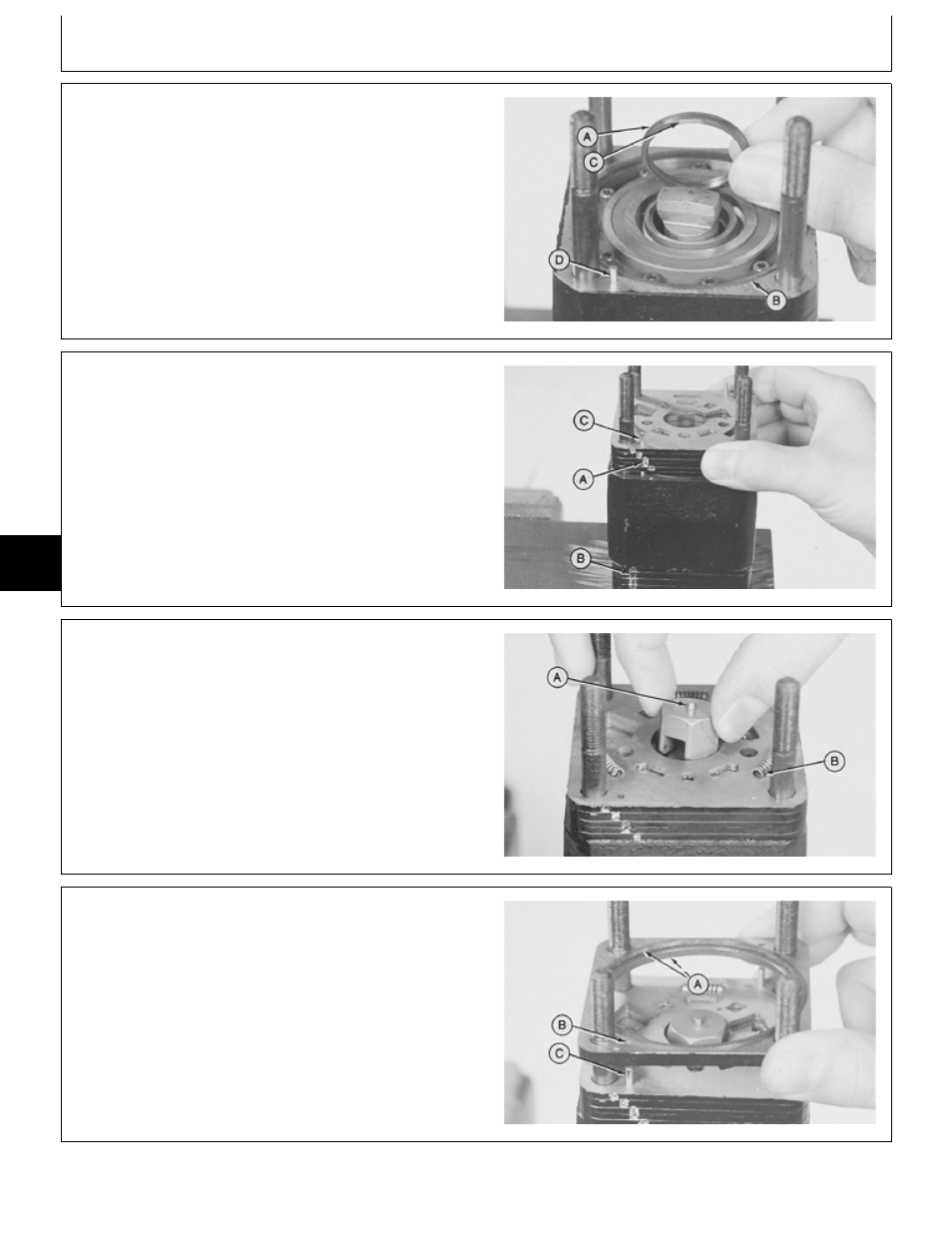

35. Apply petroleum jelly on new commutator seal (A)
and seal ring (B).
36. Install new commutator seal with yellow mark (C) or
narrow edge, down into commutator cover.
37. Install seal ring (B) and pins (D).
A—Commutator Seal
B—Seal Ring
C—Yellow Mark or Narrow Edge
D—Pin (2 used)
M36869
-UN
-29AUG88
IMPORTANT: Align grooves (A) in isolation manifold
with groove (B) in upper cover plate.
38. Install isolation manifold, with recessed slots up, on
metering ring.
39. Install pins (C).
M36870
-UN
-29AUG88
40. Install three 13 mm (1/2 in.) springs (B) in recessed
slots of the isolation manifold.
41. Install hex drive assembly, with pin (A) up, on drive
link.
M36840
-UN
-29AUG88
42. Apply petroleum jelly on new seal rings (A). Install
seal rings on valve ring.
43. Align valve ring holes (B) with pins (C) to install
valve ring.
M36871
-UN
-29AUG88
MX,15906006,46 -19-01MAR95
MX,15906006,47 -19-01MAR95
MX,15906006,48 -19-01MAR95
MX,15906006,49 -19-01MAR95
Steering—318 and 420/Steering Valve
TM1590 (17MAY95)
60-06-18
316, 318 & 420 Lawn and Garden Tractors
