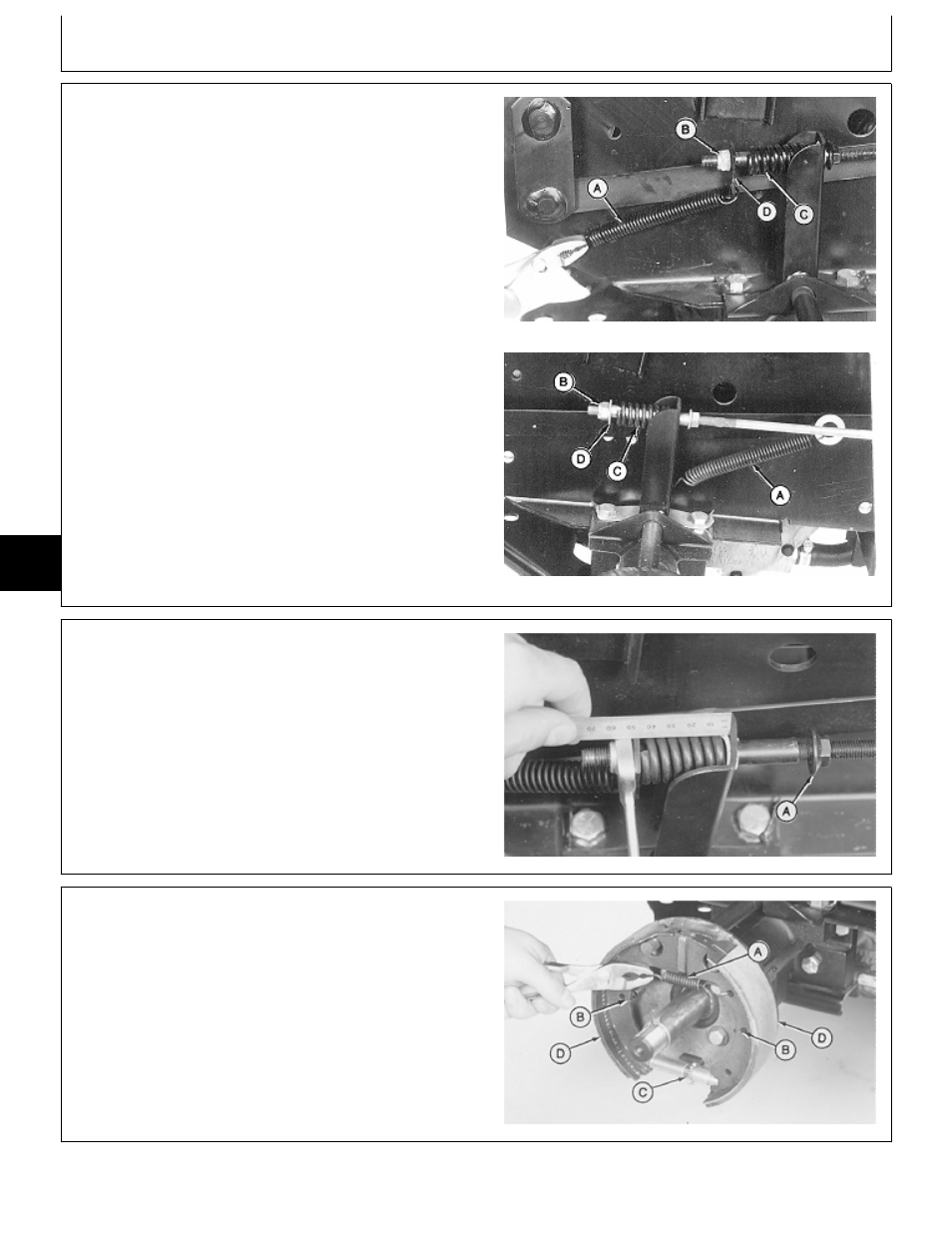

8. Install spring (C), plate or washer (D) and nut (B).
9. Connect return spring (A).
A—Return Spring
B—Nut
C—Spring
D—Plate (Early Models)
—Washer (Later Models)
Early Models
Later Models
M78048
-UN
-13FEB95
M78049
-UN
-13FEB95
10. Lock brake pedals together (318 and 420) and apply
park brake.
11. Loosen lock nut (A).
12. Turn nut until spring is 42 mm (1.650 in.) long.
Tighten lock nut.
M36554
-UN
-25JAN90
13. Install shoes (D), adjuster (C), hold-down springs (B),
and brake return spring (A).
A—Brake Return Spring
B—Hold-Down Springs
C—Adjuster
D—Shoes
M36574
-UN
-25JAN90
