BEFORE YOU START
Always begin with this group to identify a failure in
the power train. The step-by-step procedures will
provide you with a quick check of the system. No
tools are required to perform these checks. If a failure
is indicated, you will be referred to a more detailed
check, adjustment, or test.
Always start with the first step and follow the
sequence from left to right. Read each step
completely before performing the check.
This procedure is designed as a quick check of the
system. While performing the check, concentrate only
on the check you are performing and disregard
signals from unrelated components.
;

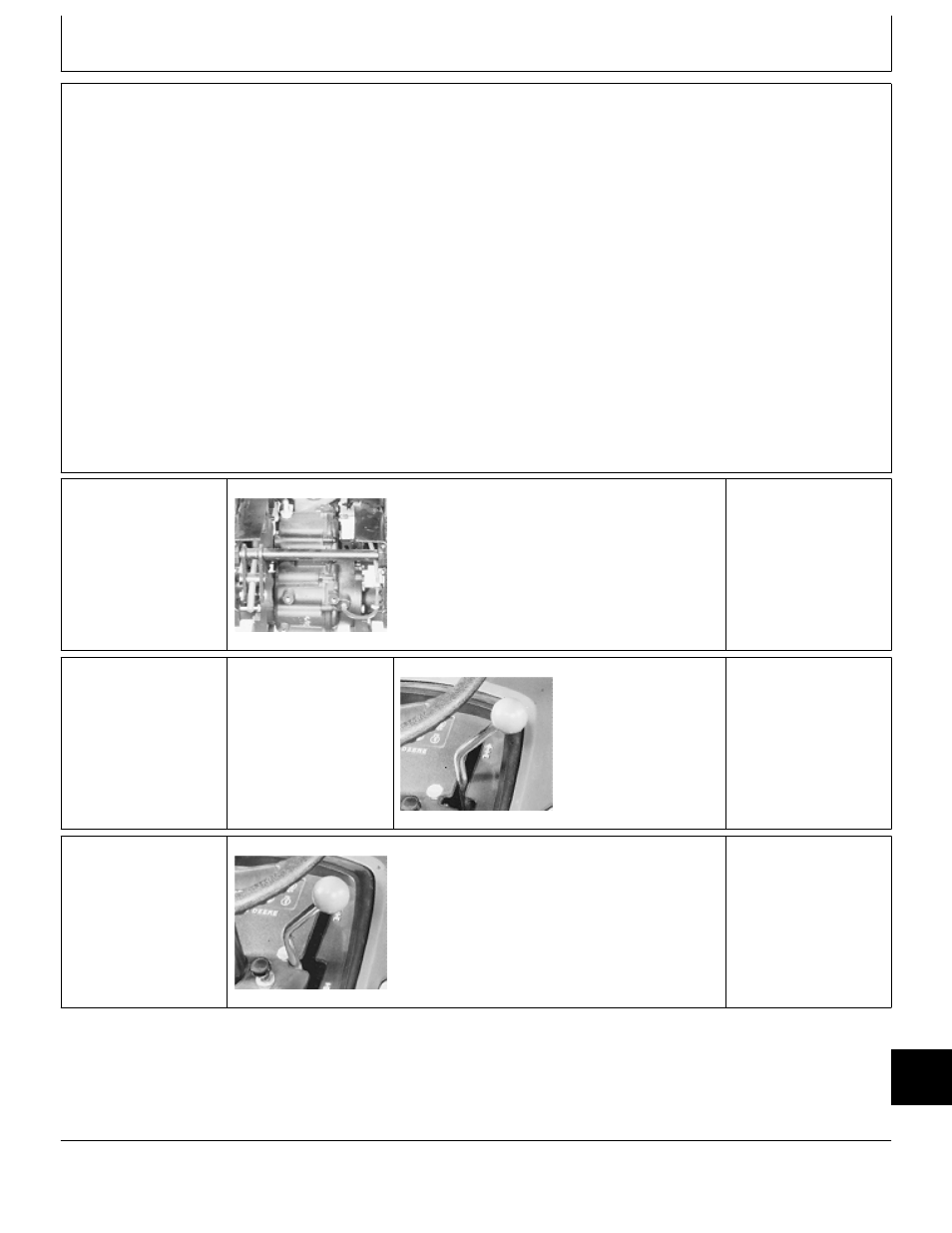

TRANSMISSION OIL
LEAK CHECK
M36695 -UN-25JAN90
Check transmission oil level and oil condition.
Inspect for external transmission oil leakage from
transmission filter, drain plug, lines, fittings,
charge pump gasket, charge pump shaft seal
and differential gasket.
OK: GO TO
‘
NOT OK: Repair or
replace then GO TO
‘
‘
HYDROSTATIC
LEVER FRICTION
CHECK
Start and run engine at
fast idle.
M36669 -UN-25JAN90
Move hydrostatic lever
to slow forward
position.
LOOK: Hydrostatic
lever must move freely
and not move after
released.
OK: GO TO
Æ
NOT OK: GO TO
Ü
,
GROUP 15.
Æ
TRANSMISSION
NEUTRAL CHECK
M36668 -UN-25JAN90
Move hydrostatic lever
to N/STOP position.
Start and run engine at
half throttle.
LOOK: Machine must
not creep in neutral.
OK: GO TO
Å
NOT OK: GO TO
GROUP 15:
Early Machines:
1!
Later Machines:
1@
MX,159025005,1 -19-20APR95
MX,159025005,2 -19-20APR95
MX,159025005,3 -19-20APR95
MX,159025005,4 -19-16MAY95
