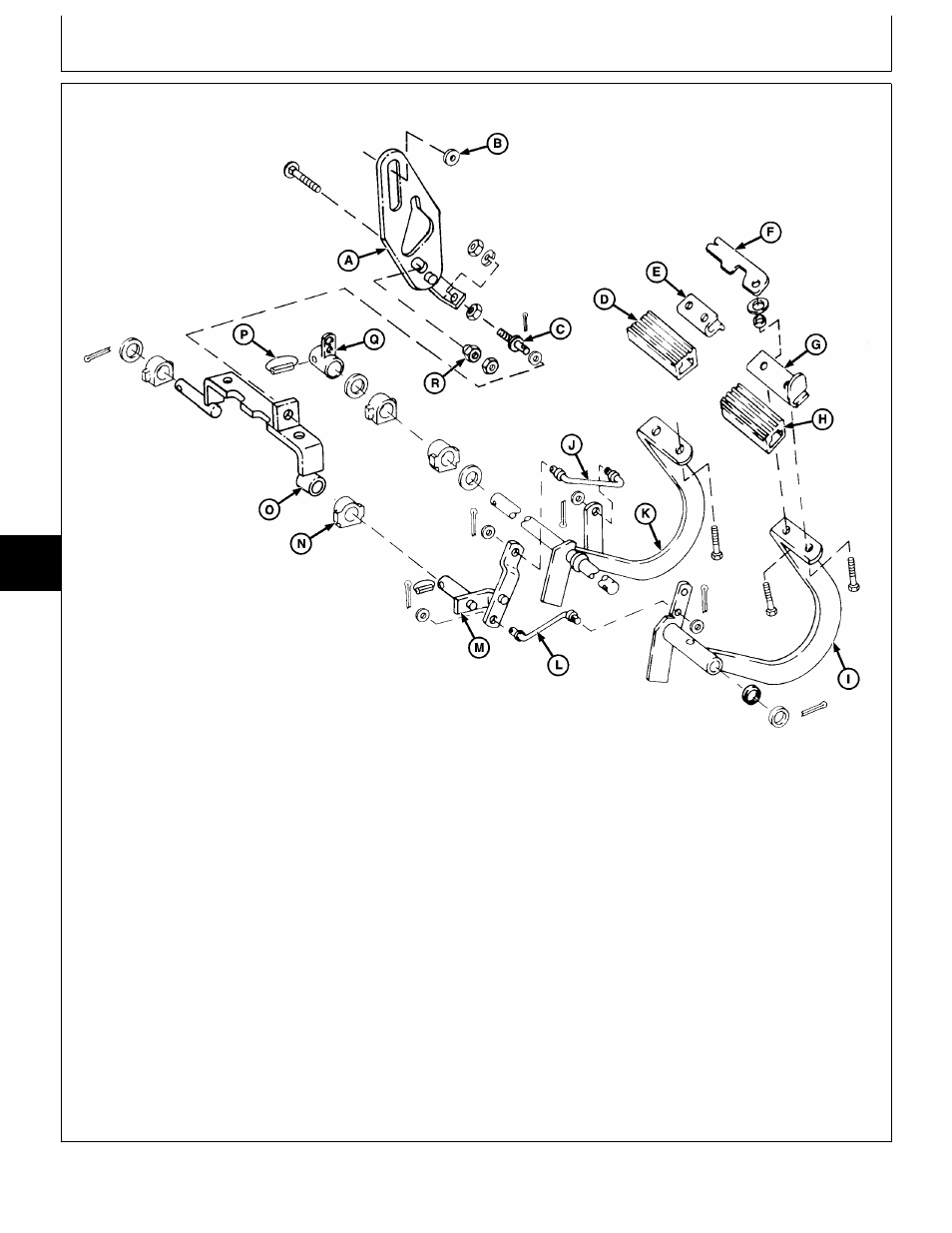

A—Neutral Return Cam Plate F—Strap K—Left Brake Pedal P—Lock Wire and Spring Pin
B—Spacer G—Support L—Neutral Return Link Q—Left-Hand Brake Arm
C—J-Bolt H—Right Pedal Pad M—Neutral Return Shaft R—Eccentric Adjustment Nut
D—Left Pedal Pad I—Right Brake Pedal N—Bearing (4 used)
E—Plate J—Neutral Return Link O—Neutral Return Welded
Shaft
Version One (420)
NOTE: Brake pedal and neutral return
linkage—Version One, is used on machines
equipped with transmission control
linkage—Versions One or Two for 420 only.
5. Inspect linkage for wear or damage. Replace parts
as necessary.
6. If necessary to replace neutral return cam plate
(A), remove transmission control lever assembly. (See
Inspect and Repair Transmission Control
Linkage—Version One or Version Two for 420 only in
Section 50, Group 10.)
M78041
-UN
-14MAR95
MX,15906010,14 -19-20MAR95
Brakes/Brake Pedal(s) and Neutral Return Linkage
TM1590 (17MAY95)
60-10-20
316, 318 & 420 Lawn and Garden Tractors
